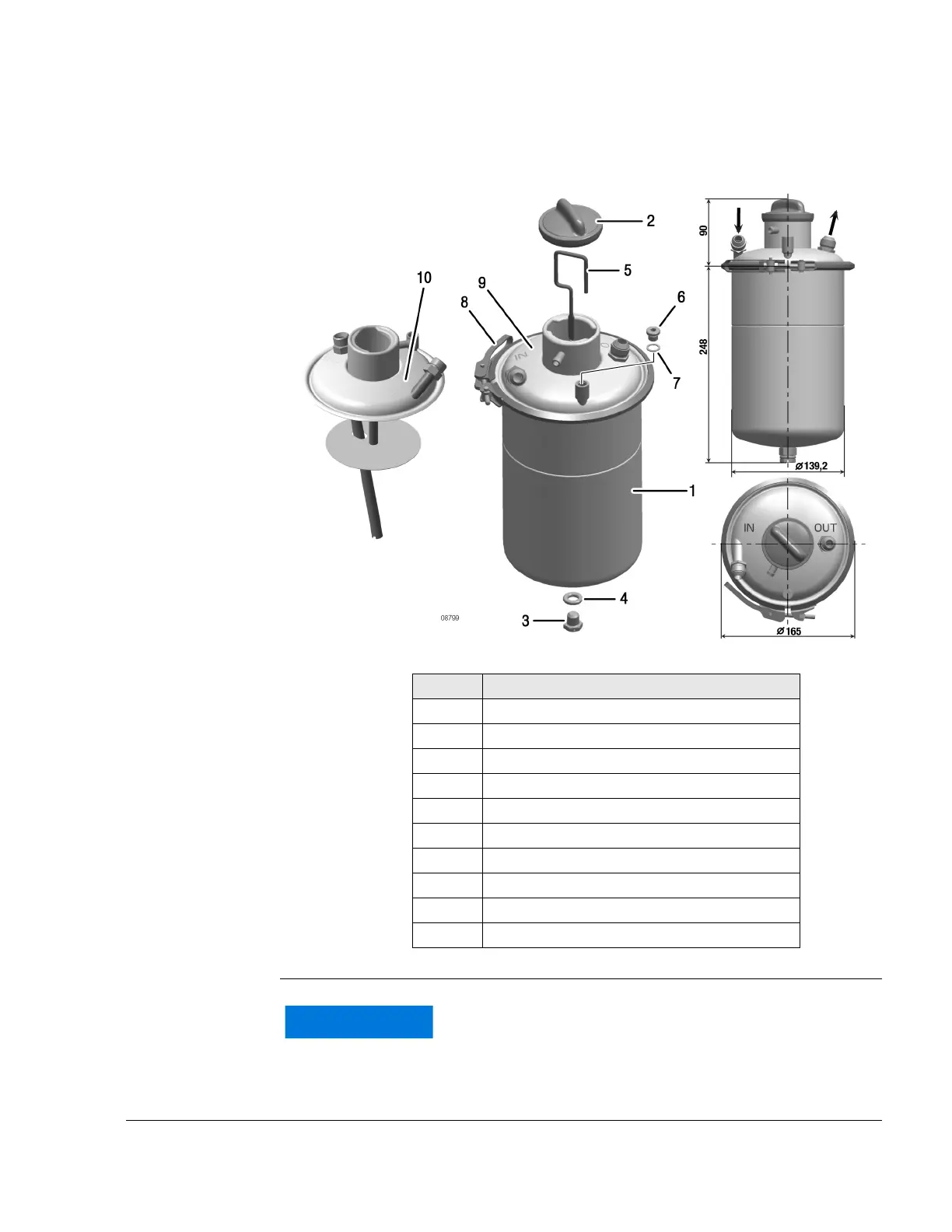

Graphic
Oil tank
Fig. 9
Part Function
1 Oil tank
2 Bayonet cap
3 M12x12 hex. screw
4 C12x18 gasket ring
5 Oil dipstick
6 M10x1 plug screw
7 A10x14 gasket ring
8 Profile clamp 163
9 Oil tank cover assy. (UNF 3/4-16)
10 Oil tank cover assy. (metric M18x1.5)

WARNUNG
NOTICE
If the lines are connected incorrectly, the engine will
not be lubricated and the engine will be damaged very
quickly!

Rotax 912 i series Specifications

General

Number of Cylinders	4
Max Power	100 hp (73.5 kW)
Max Power Output RPM	5800 rpm
Ignition System	Dual electronic ignition
Oil System	Dry sump, forced lubrication with separate oil tank
Reduction Gear Ratio	2.43:1
TBO	2000 hours
Engine Type	4-stroke, horizontally opposed
Displacement	1352 cm³
Bore x Stroke	84 mm x 61 mm
Max Torque	128 Nm
Fuel Type	Avgas 100LL or unleaded automotive gasoline
Fuel System	Electronic fuel injection
Cooling System	Liquid/air-cooled
