Roto NT Power Hinge - Dimensional Data for Hardware

Subject to change. Roto NT IMO_347_EN_v0
.
July 2014
.
21
Information on the product
Dimensional data for hardware

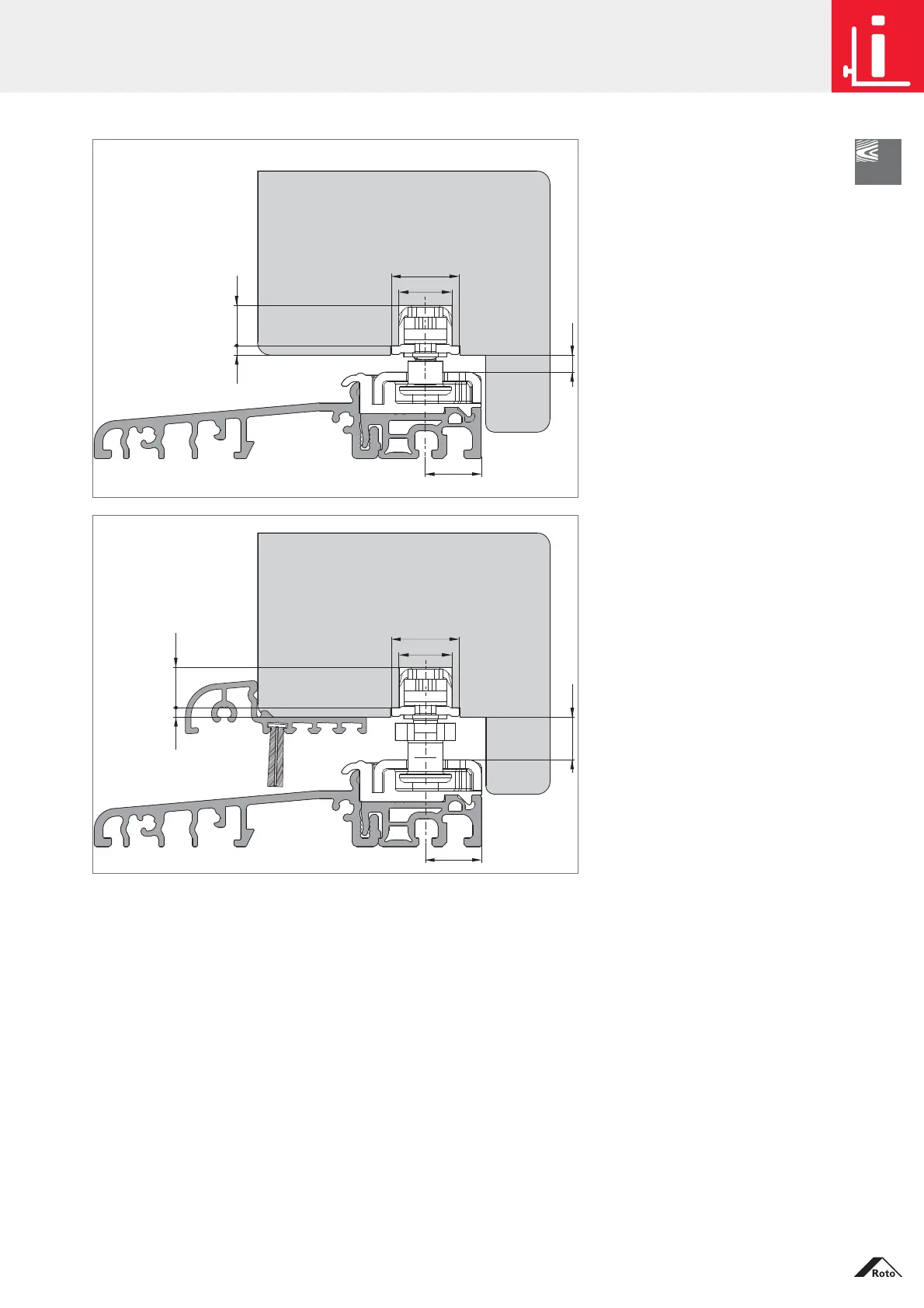

Cross section of sash profile with Eifel TB threshold
13 (9)
12.3
16.2
9.42.2
4
Clearance condition 4mm
Timber, system Euro-rebate
13 (9)
12.3
16.2
9.4
2.2
10
Clearance condition 10 mm
Timber, system Euro-rebate
