Roto NT Power Hinge - Dismantling; Unhinging the Sash

Subject to change. Roto NT IMO_347_EN_v0
.
July 2014
.
97

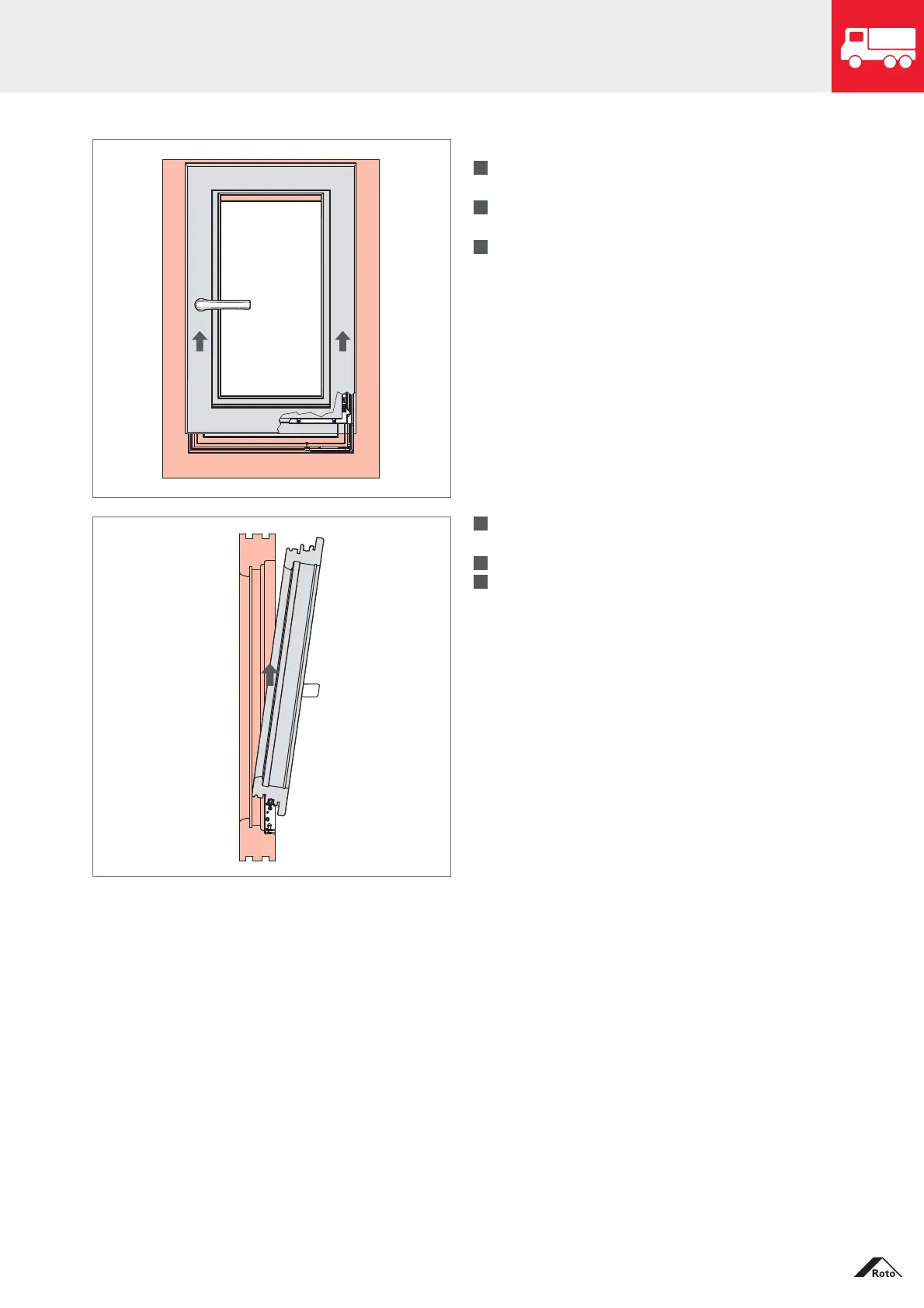

Unhinging the sash
1.
Bring the handle into the turn mode (= open sash
position).
2.
Press down the lifting mishandling device (if mounted)
and bring the handle into the tilt position.
3.
Unhinge the sash stay and secure the sash from
falling out.
4.
Press down the lifting mishandling device (if mounted)
and bring the handle into the turn position.
5.
Turn the sash closed.
6.
Lift the sash slightly tilted out of the pivot rest.
Dismantling
Unhinging the sash
Sash stay 250, 350 and 500
