Roto NT Power Hinge - Application Diagrams

26
.
July 2014
.
IMO_347_EN_v0 Roto NT Subject to change.
Application diagram
NT hinge side K 3 / 100, K 6 / 100 for thresholds
Turn-Only/Tilt&Turn hardware for balcony doors
Limitation of sash formats depending on the glass thickness
Application range
Sash rebate width SRW ..........................600 – 1600 mm
Sash rebate height SRH ........................1600 – 2600 mm
Sash weight S.kg ........................................ max. 100 kg
SecurityRC1/RC1N
Sash rebate width SRW ..........................600 – 1400 mm
Sash rebate height SRH ........................1600 – 2600 mm
Sash weight S.kg ........................................ max. 100 kg
Security RC2
1)
Sash rebate width SRW ..........................600 – 1400 mm
Sash rebate height SRH ........................1600 – 2400 mm
Sash weight S.kg ........................................ max. 100 kg
1) For new buildings.
The information in the application diagram refers to the
glass weight in kg / m
2
.
1 mm / m
2
glass thickness = 2.5kg
= Impermissible application range
= Additional scissor stay required
Information on the product

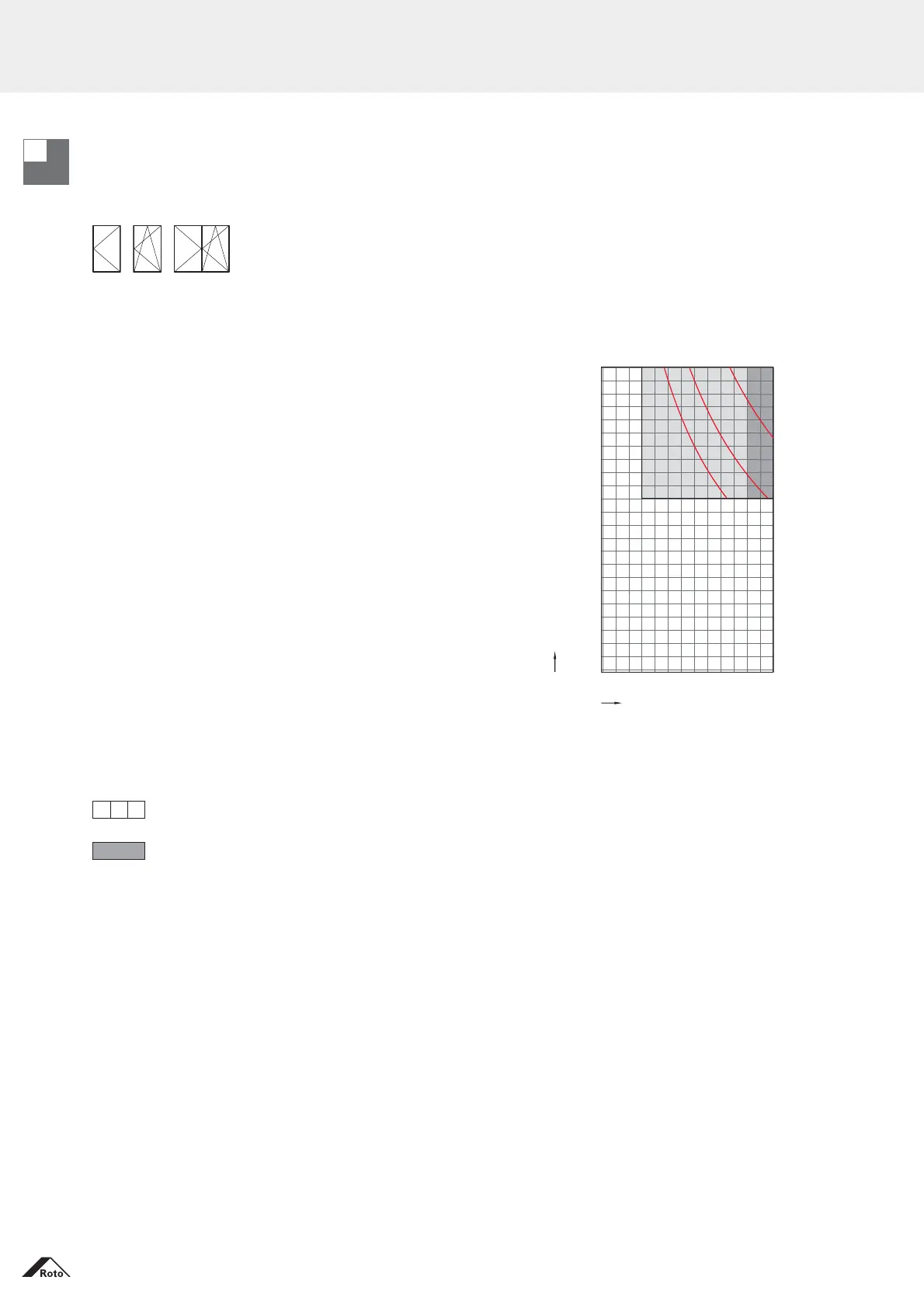

Application diagram
NT hinge side K 3 / 100, K 6 / 100 (PVC)
2000
1000
1000
2500
1500
500
500 1500
50 kg/m
2
40 kg/m
2
30 kg/m
2
SRW 600 – 1000 mm
SRH 1600 – 2600 mm
