IMO_347_EN_v0 Roto NT Subject to change.
With load transfer device only for
≥80kg sash weights
Rebate
depth
56
88
11.5
17
19.5
24
R2
55 35
2 x Ø 6
47.5
32.5
46.5
17
11.5
max.

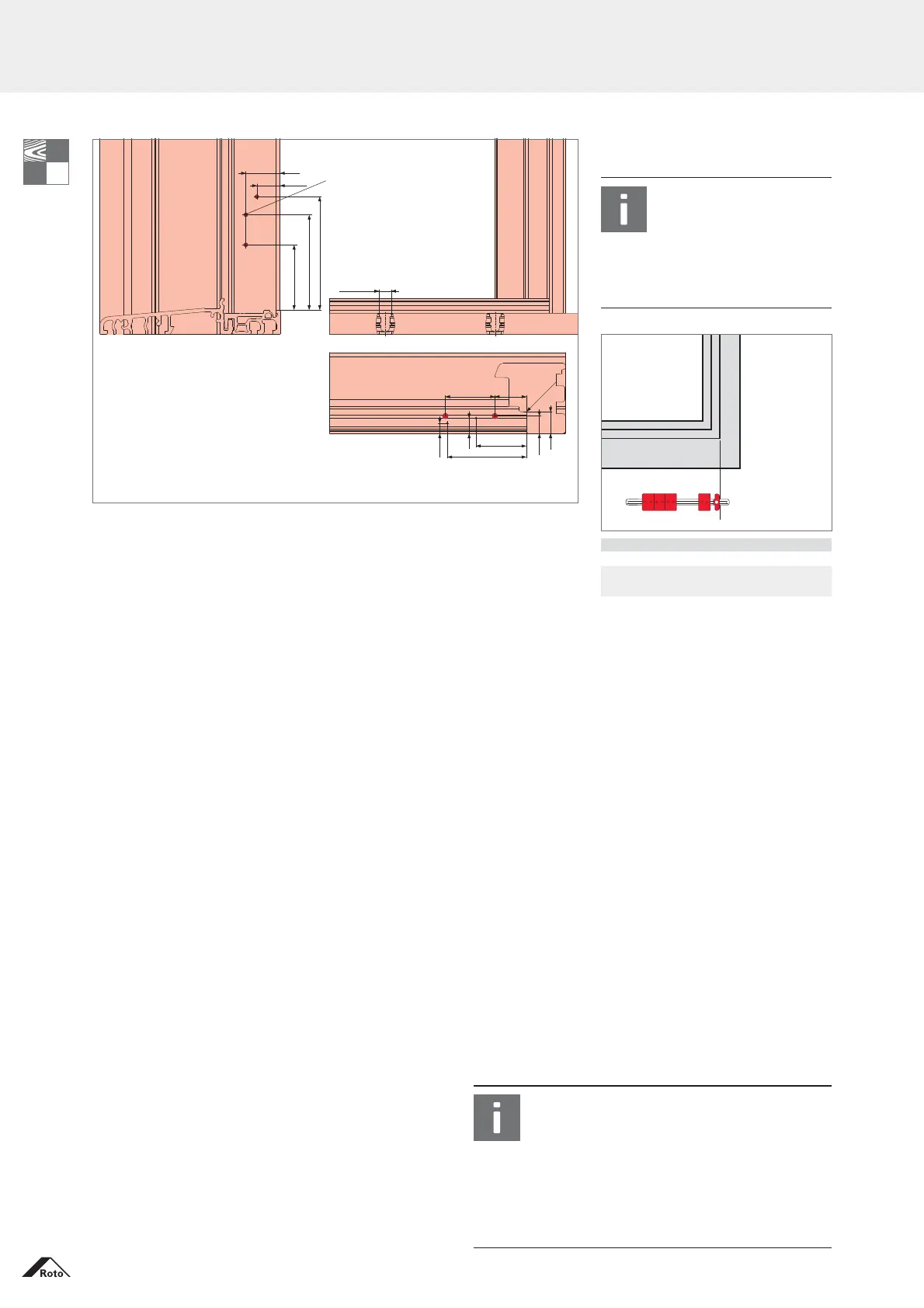

Pivot rest, rebate depth 24 mm
NOTE!
For PVC profiles:
If necessary, put pressure-
resistant packers between
pivot rest and vertical leg
before screw-fixing.
Installation
NT Designo
Carrying out frame and threshold drillings
Positioning jig
Description Material no.
Positioning jig, pivot rest
24mm rebate depth
602577
Bottom horizontal
NOTE!
This document excerpt does not replace the
complete product documentation*. Non-com-
pliance exempts the hardware manufacturer of
his liability.
For all further installation steps refer to:
IMO_109_EN, IMO_110_EN, IMO_258_EN
* Can be found on www.roto-frank.com
