Subject to change. Roto NT IMO_347_EN_v0
.
July 2014
.
73
Installation
NT Power Hinge

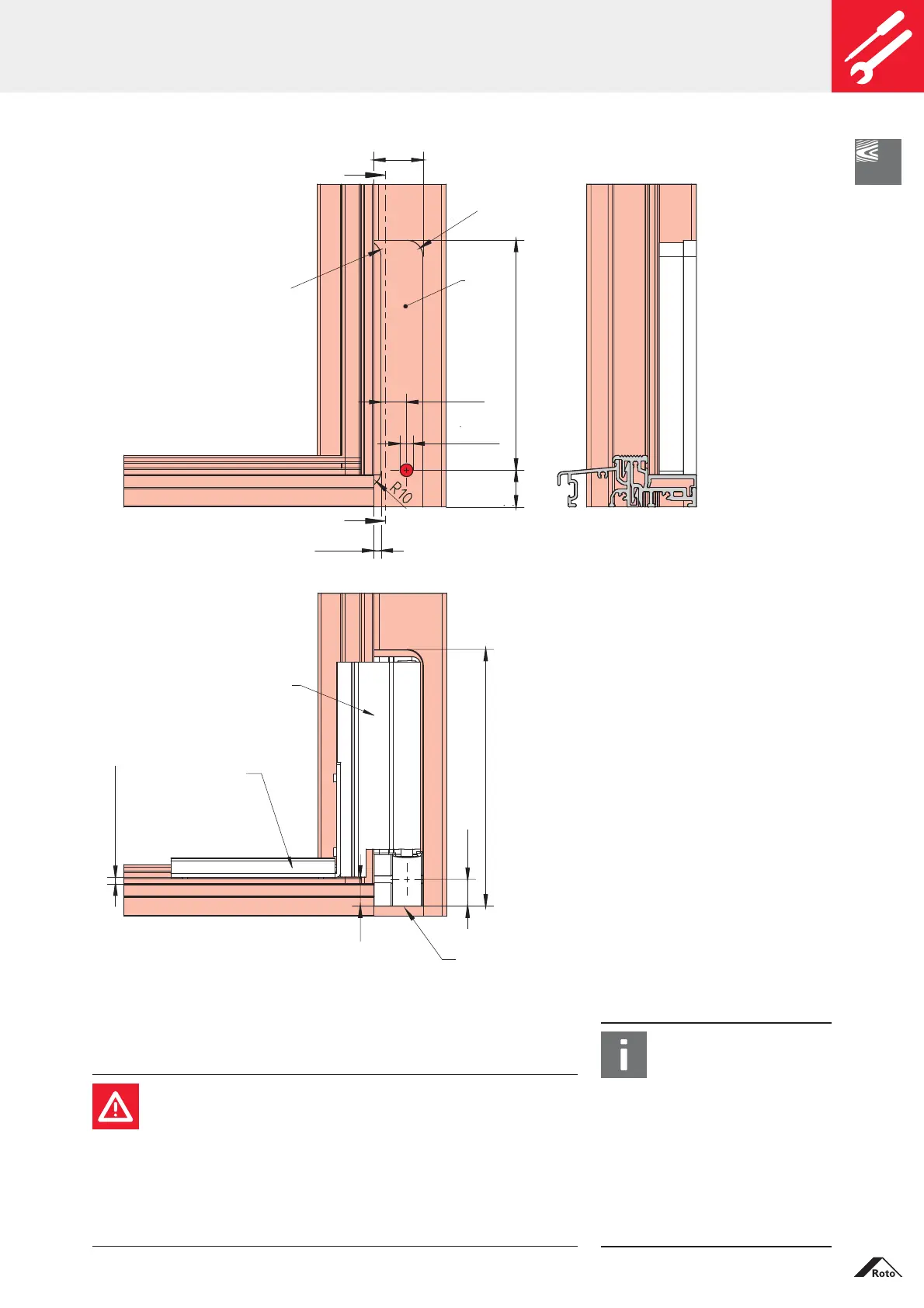

Frame drillings and routings for threshold application
A
A A-A
Use pressure-resistant
packer
depth 29
depth 29
depth 8
DANGER!
Danger of injury due to unmonitored installation of hardware com-
ponents. Unmonitored installation may lead to hazardous situations.
The information in the drawings on this page are unaudited
proposals . For safety reasons a customer check or a check in the
ITC Leinfelden is mandatory.
Roto accepts no liability for complaints concerning the use of
unaudited installation solutions on this page.
4 mm clearance
Pivot rest 561985
Corner hinge
622832
22.8
159
16.5
18
4.5
30.5
15.8
Ø 8
142.5
R10
R10
NOTE!
This document excerpt does
not replace the complete
product documentation*.
Non-compliance exempts
the hardware manufacturer
of his liability.
For all further installation
steps refer to:
IMO_68_EN, IMO_258_EN
* Can be found on www.roto-frank.com
