74
.
July 2014
.
IMO_347_EN_v0 Roto NT Subject to change.
Installation
NT Power Hinge

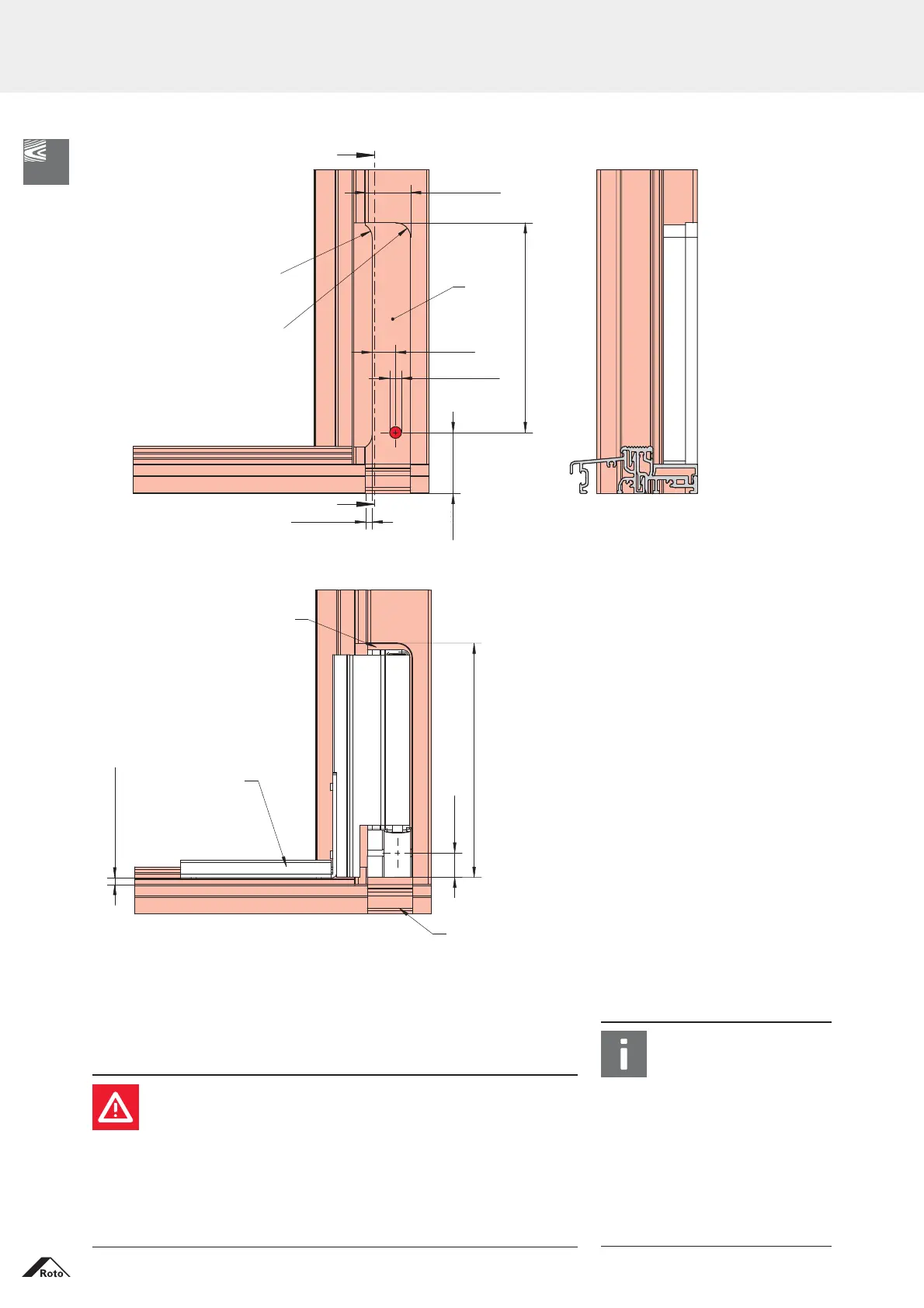

Frame drillings and routings for threshold application
A
A
159
4 Falzluft
16.5
30.5
R10
R10
15.8
142.5
8
41.5
4.5
druckfest unterlegt
Eckband 622832
Ecklager 561985
8 tief
A-A
Use pressure-resistant
packer
Pivot rest 561985
Corner hinge
622832
4 mm clearance
depth 29
41.5
159
16.5
4.5
depth 29
depth 8
30.5
15.8
Ø 8
142.5
R10
R10
DANGER!
Danger of injury due to unmonitored installation of hardware com-
ponents. Unmonitored installation may lead to hazardous situations.
The information in the drawings on this page are unaudited
proposals . For safety reasons a customer check or a check in the
ITC Leinfelden is mandatory.
Roto accepts no liability for complaints concerning the use of
unaudited installation solutions on this page.
NOTE!
This document excerpt does
not replace the complete
product documentation*.
Non-compliance exempts
the hardware manufacturer
of his liability.
For all further installation
steps refer to:
IMO_68_EN, IMO_258_EN
* Can be found on www.roto-frank.com
