Roto NT Power Hinge - NT Hinge Side E5 (Timber)

Subject to change. Roto NT IMO_347_EN_v0
.
July 2014
.
27
Information on the product

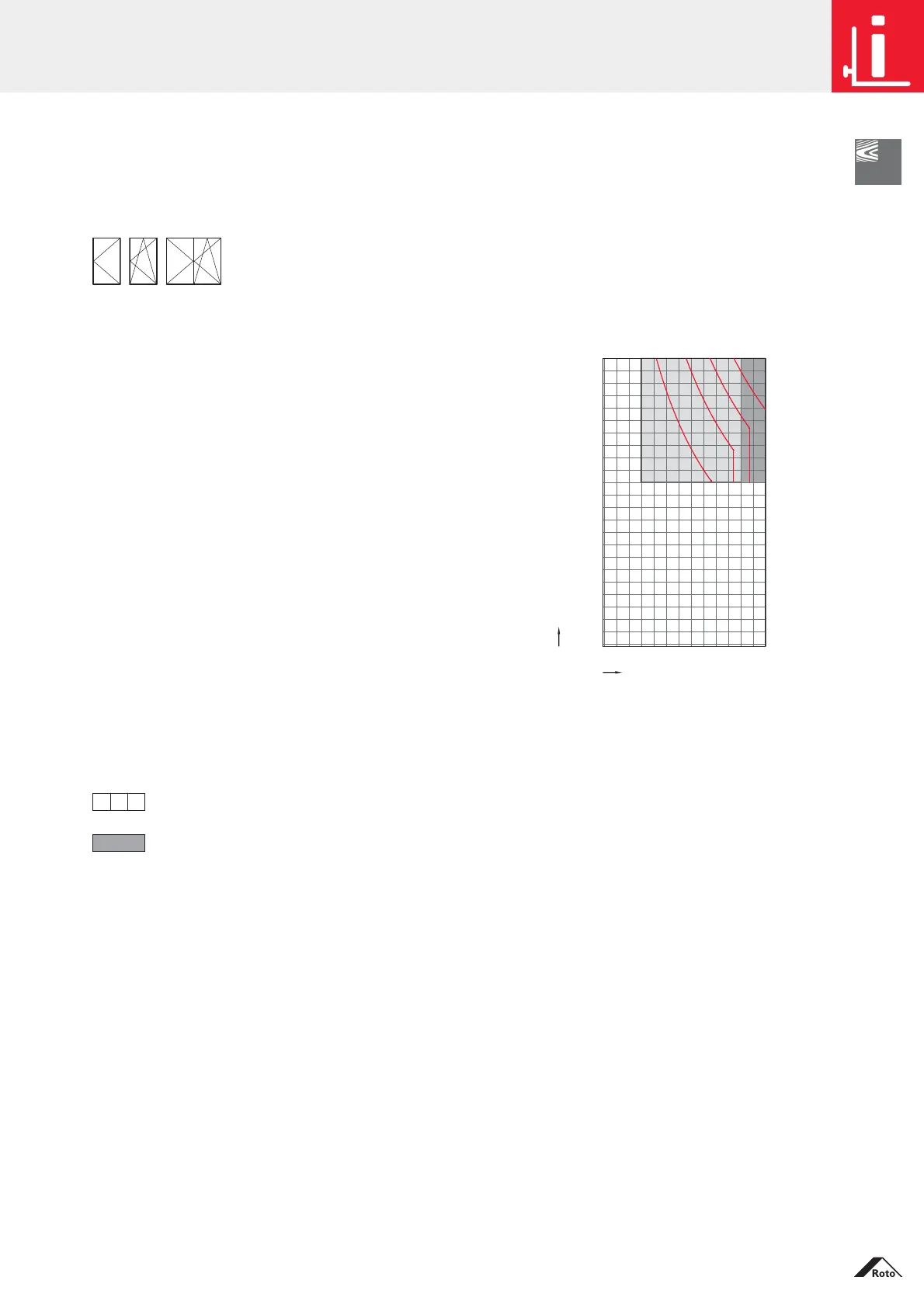

Application diagram
NT hinge side E5 (timber)
2000
1000
1000
2500
1500
500
500 1500
80 kg/m
2
60 kg/m
2
50 kg/m
2
40 kg/m
2
Application diagram
NT hinge side E5 for thresholds
Turn-Only/Tilt&Turn hardware for balcony doors
Limitation of sash formats depending on the glass thickness
Application range
Sash rebate width SRW ..........................600 – 1600 mm
Sash rebate height SRH ........................1600 – 2600 mm
Sash weight S.kg ....................................... max. 150kg
SecurityRC1/RC1N
Sash rebate width SRW ..........................600 – 1600 mm
Sash rebate height SRH ........................1600 – 2600 mm
Sash weight S.kg ....................................... max. 150kg
Security RC2
1)
Sash rebate width SRW ..........................600 – 1400 mm
Sash rebate height SRH ........................1600 – 2400 mm
Sash weight S.kg ....................................... max. 150kg
1) For new buildings.
The information in the application diagram refers to the
glass weight in kg/m
2
.
1 mm / m
2
glass thickness = 2.5kg
= Impermissible application range
= Additional scissor stay required
SRW 600 – 1000 mm
SRH 1600 – 2600 mm
