Installation
NT hinge side K
Sash drillings for threshold application
DIN L:
Centre marking of drilling
jig = pivot rest centre
DIN R:
Centre marking of drilling
jig = pivot rest centre

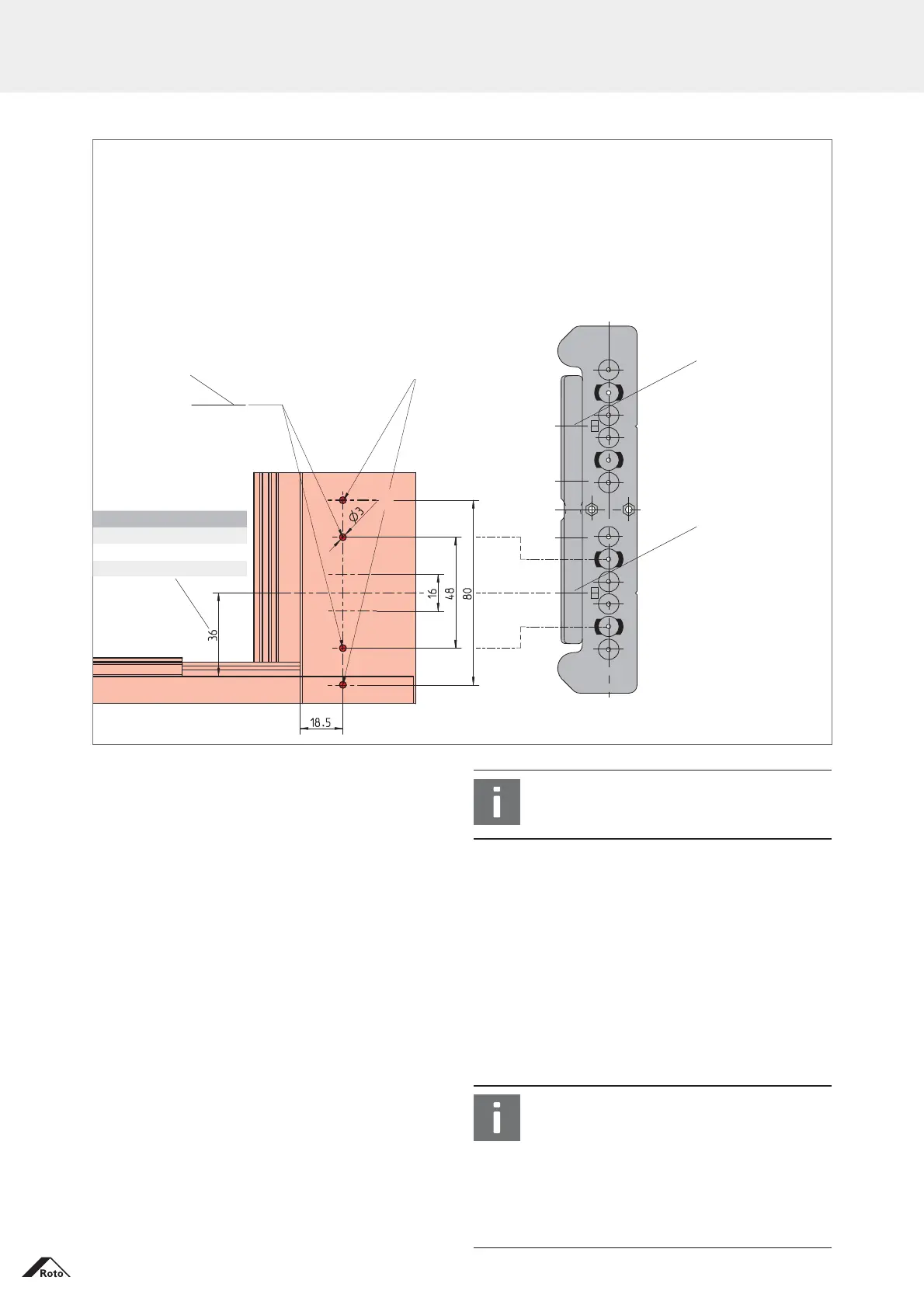

Drilling dimensions frame Drilling jig frame
Stay bearing / Pivot rest
Material no. 230729
For stay bearing K 6 / 100
Material no. 230178
and
Pivot rest K 6 / 100
Material no. 258592
Drilling K3 / 100
Ø 3mm; depth 3mm
Drilling K6 / 100
top Ø 6mm; depth 4mm
bottom Ø 6mm; depth 19mm
Drilling K3 / 100
Deep tilting axis Ø 3mm; depth 3 mm
Pivot rest
Centre
depth 3 mm
Clearance Installation height
4 mm 36 mm
10 mm 42 mm
Centre of pivot rest = drilling jig centre
NOTE!
Supporting-pins and screws must penetrate at
least 2 profile walls.
NOTE!
This document excerpt does not replace the
complete product documentation*. Non-com-
pliance exempts the hardware manufacturer of
his liability.
For all further installation steps refer to:
IMO_63_EN, IMO_258_EN
* Can be found on www.roto-frank.com
