Subject to change. Roto NT IMO_347_EN_v0
.
July 2014
.
71
Installation
NT hinge side K

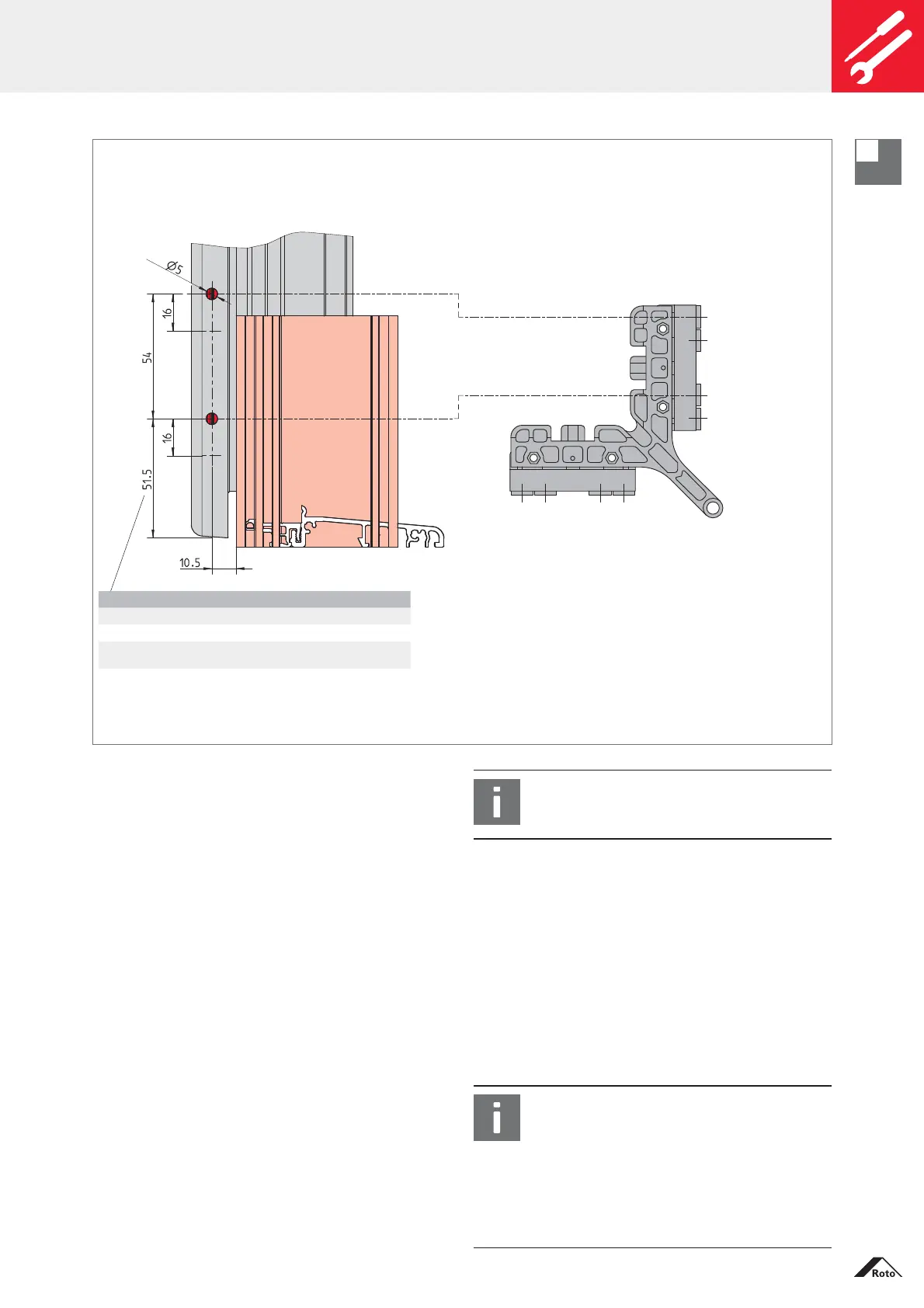

Sash drillings for threshold application
Drilling dimensions sash
depth 23mm
Drilling jig Clearance Installation height Material no.
Hinge side K3 4 mm 51.5 mm 230728
Hinge side K6 10 mm 51.5 mm 230730
Hinge side K6
(Low tilting axis)
42.5 mm 614457
NOTE!
Supporting-pins and screws must penetrate at
least 2 profile walls.
NOTE!
This document excerpt does not replace the
complete product documentation*. Non-com-
pliance exempts the hardware manufacturer of
his liability.
For all further installation steps refer to:
IMO_63_EN, IMO_258_EN
* Can be found on www.roto-frank.com
