Roto NT Power Hinge - NT Hinge Side E5 - Sash Drillings for Threshold Application

72
.
July 2014
.
IMO_347_EN_v0 Roto NT Subject to change.
 Drilling jig, 3 mm diameter,
mat. no. 230712 and 230715
 Drilling jig, 7 mm diameter,
mat. no. 230713 and 230716
Combine with following stop:
 Stop for drilling jig E5 with
39 mm offset,
mat. no. 513675
 Drilling jig, 3 mm diameter,
mat. no. 230712 and 230715
 Drilling jig, 7 mm diameter,
mat. no. 230713 and 230716
Combine with following stop:
 Stop for drilling jig E5 with
51.5 mm offset,
mat. no. 513676

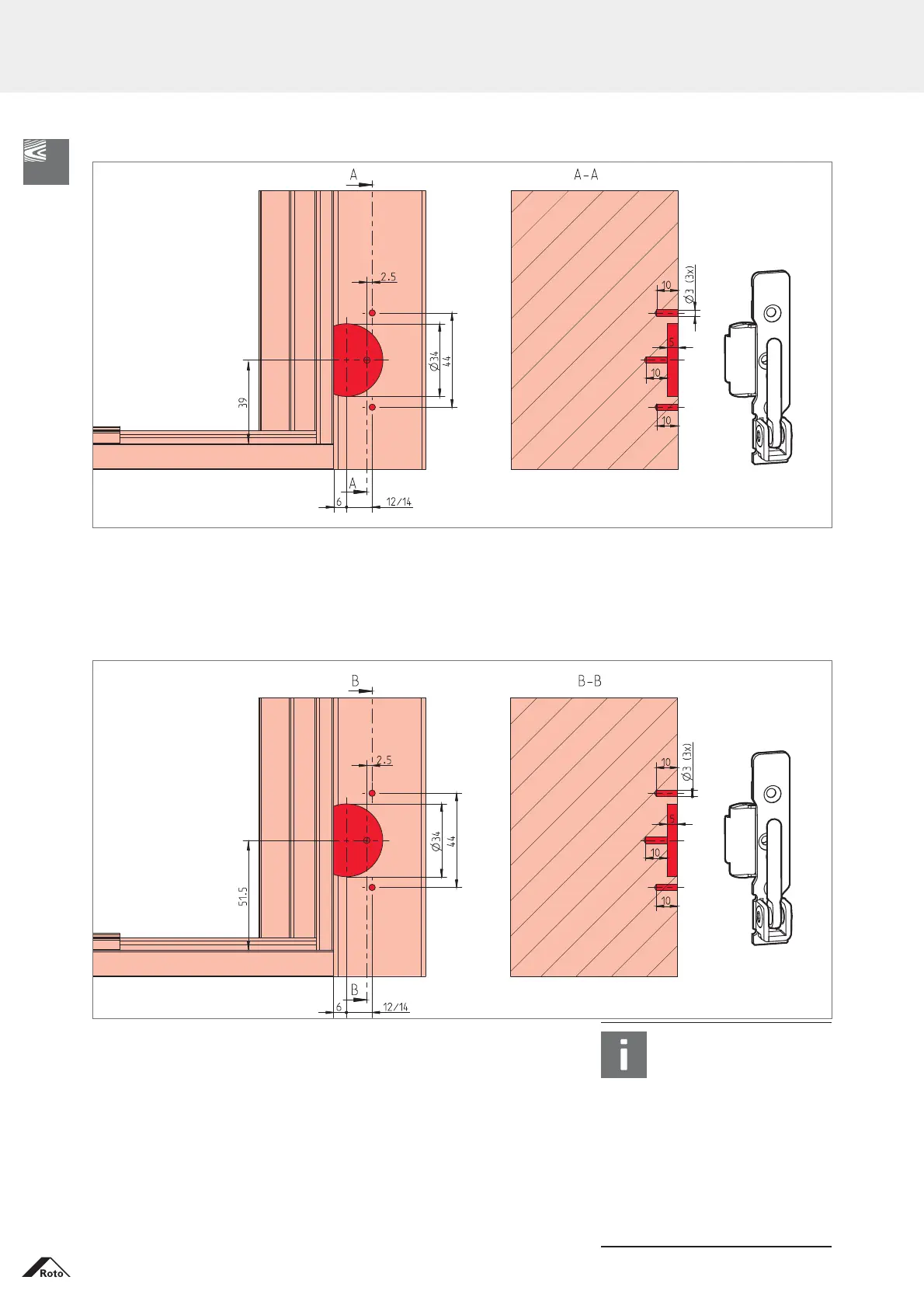

Positioning of the pivot rest with offset installation
Installation
NT hinge side E5
Sash drillings for threshold application
NOTE!
This document excerpt does
not replace the complete
product documentation*.
Non-compliance exempts
the hardware manufacturer
of his liability.
For all further installation
steps refer to:
 IMO_64_EN, IMO_258_EN
* Can be found on www.roto-frank.com
