Installation
NT Designo

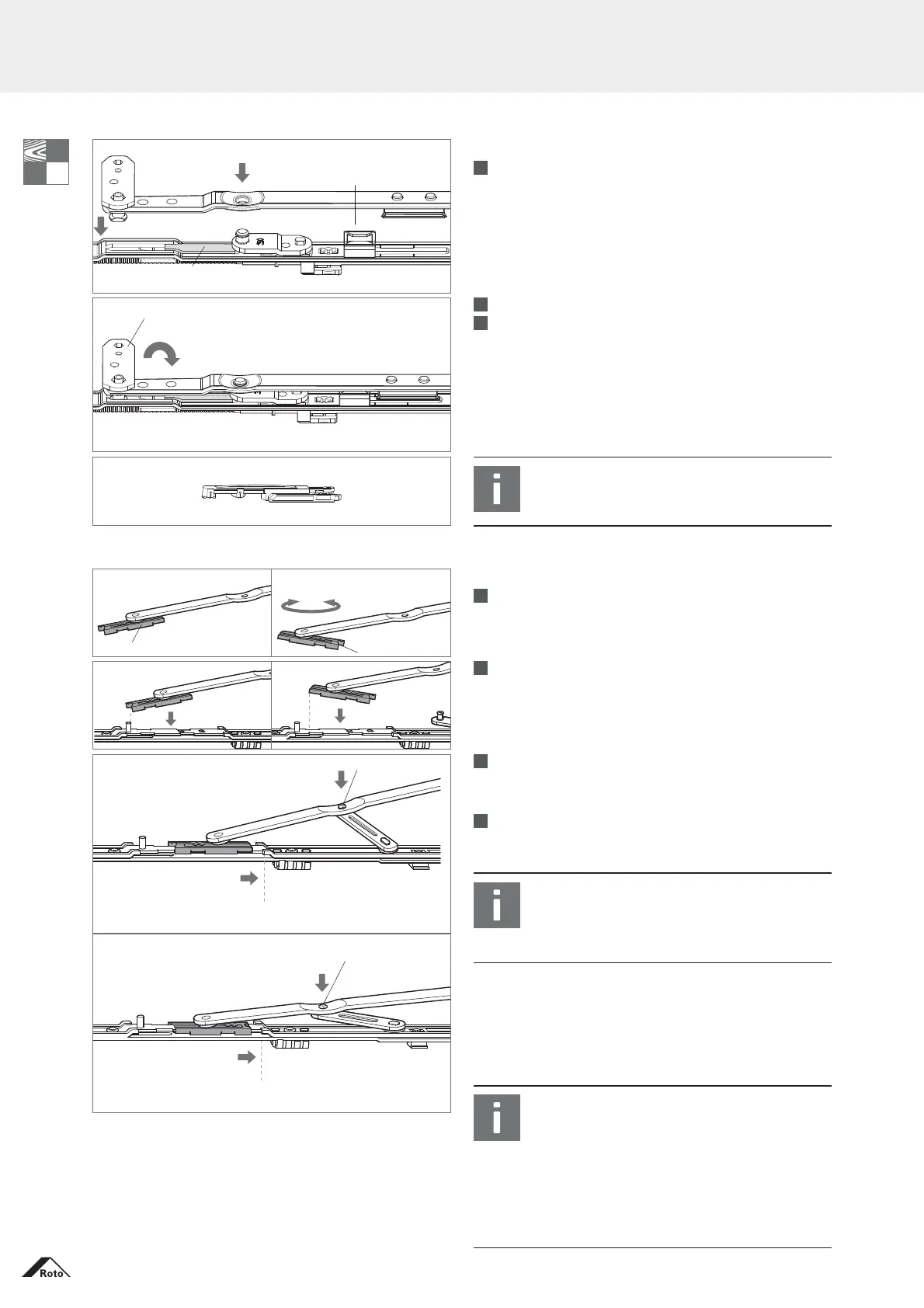

Hinging the sash
Tilt-depth regulator,
tilt depth 140mm (standard)
Entry
tilt mode
Hinging the sash with sash stay 250:
7.
Press down the stay arm on the stay guide and
supporting arm.
Retainer-clasp
8.
Close the retainer-clasp.
9.
Operate again the lifting mishandling device and
bring the handle into the turn mode.
NOTE!
Use the anti-slam device (487206) for 80mm
tilt depth.
Tilt depth 140mm (standard)
Slider
180°
Tilt depth 80mm
Slider
Hinging the sash with sash stay 350 and 500:
7.
Adjust the desired tilt depth
(Standard tilt depth = 140mm)
Tilt depth 140mm (standard) Tilt depth 80mm
8.
Connect the slider of the sash stay with the stay
guide.
Slider’s fi nal position
= anti-slam device
Slider’s fi nal position
= anti-slam device
Hitching pin
Hitching pin
Tilt depth 140mm (standard)
Tilt depth 80mm
9
Lift the sash stay arm and let the drilling-hole of
the sash stay arm snap on the hitching pin of the
supporting arm.
10.
Operate again the lifting mishandling device and
bring the handle into the turn mode.
NOTE!
The slider’s final position (anti-slam device) is
reached automatically by means of tilting the
sash.
NOTE!
This document excerpt does not replace the
complete product documentation*. Non-com-
pliance exempts the hardware manufacturer of
his liability.
For all further installation steps refer to:
 IMO_109_EN, IMO_110_EN, IMO_258_EN
* Can be found on www.roto-frank.com
