Saab R5 - Physical Size and Mechanical Drawings

R5 SOLID AIS System
INSTALLATION
7000 118-200, C2 Page 14

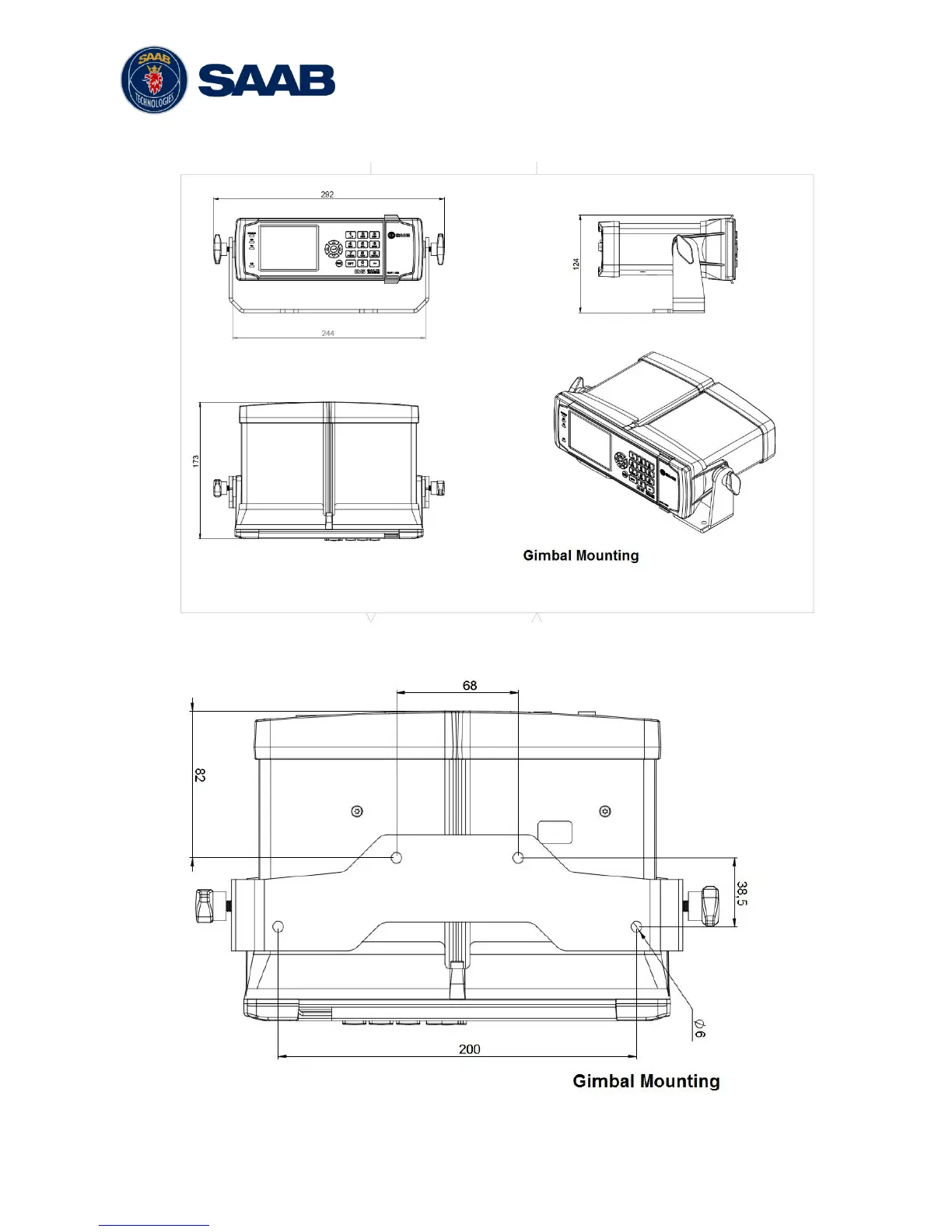

3.4.2 Physical Size and Mechanical Drawing
Figure 2 – Gimbal Mount
Figure 3 – Gimbal Mount (Bottom View)
