Location of Engine-related Units
2-008

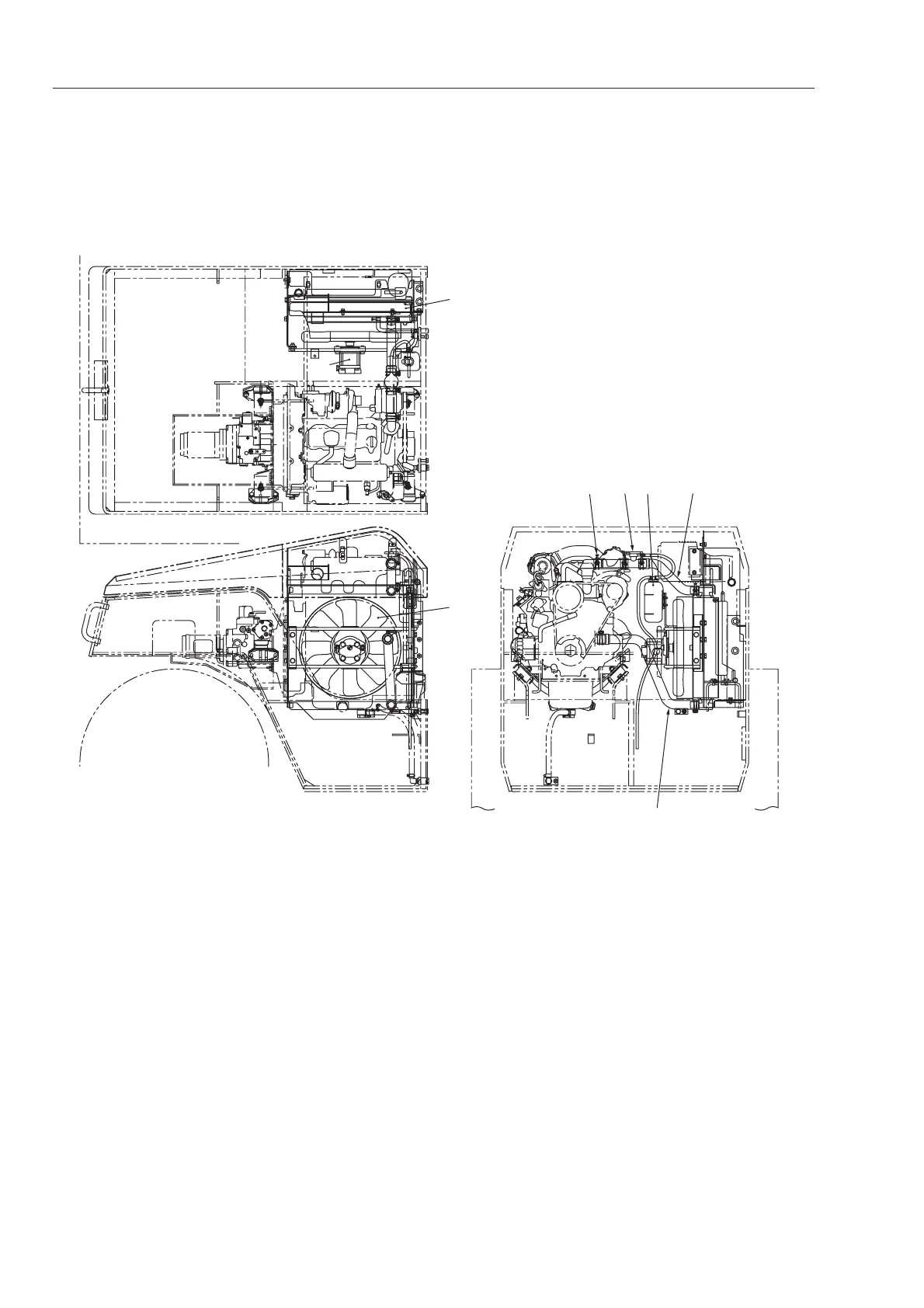

1-6. Cooling piping and radiator
TW5022057
1
2
3
765 4
8
1. Radiator
2. Radiator fan motor
3. Radiator fan
4. Radiator inlet hose
5. Sub tank
6. Pipe
7. Hose
8. Radiator outlet hose
