Sakai TW352 - Hydraulic Piping (TW502)

2-039
Description and Operation of Hydraulic system

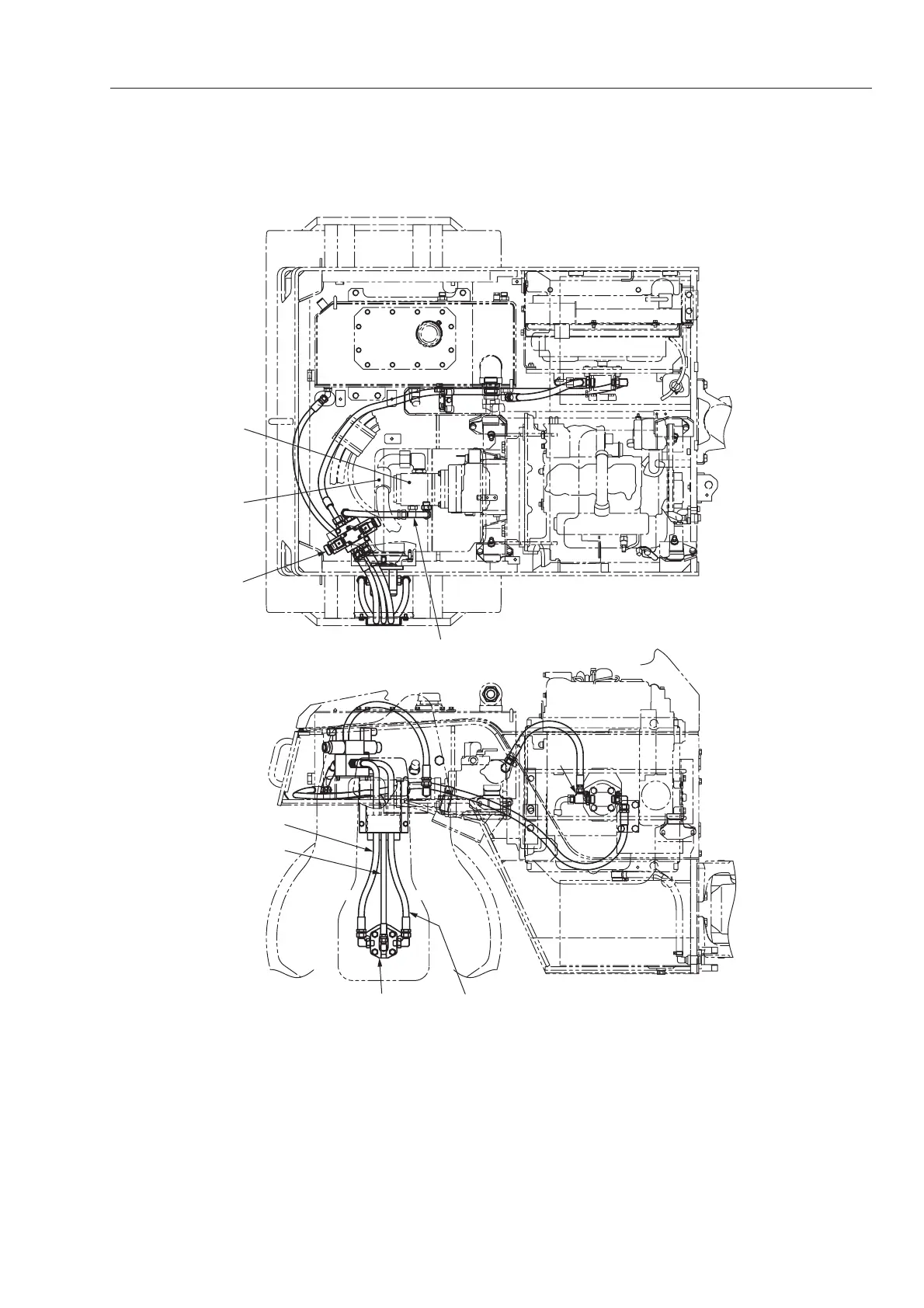

2-3-4. Hydraulic piping (TW502)
TW5022036
54
7
6
3
1
2
8
1. Vibrator pump &
steering/charge pump
2. Suction hose
3. Pump outlet hose
4. Vibrator motor
5. High pressure hose (high amp.)
6. High pressure hose (low amp.)
7. Drain hose
8. Amplitude selector solenoid
valve
