Sakai TW352 - Fuel Piping and Fuel Tank

Location of Engine-related Units
2-009

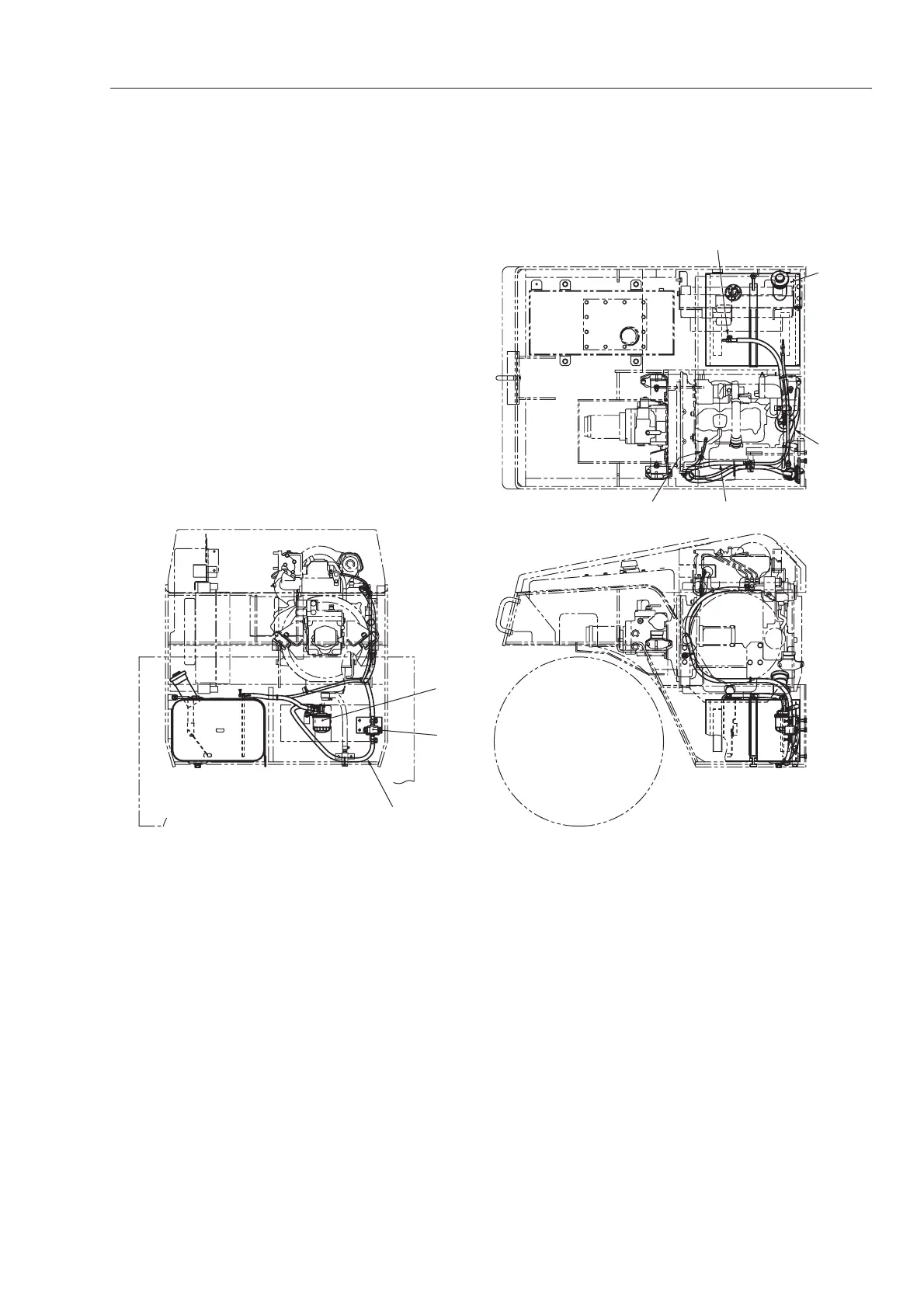

1-7. Fuel piping and fuel tank
TW5022006
3
45
3
1
2
6
7
1. Fuel tank
2. Hose (fuel tank to filter)
3. Hose (filter to fuel pump)
4. Hose (fuel pump to injection pump)
5. Hose (injection pump to fuel tank)
6. Fuel filter
7. Fuel pump
