Sakai TW352 - Hydraulic Piping (TW352)

2-038
Description and Operation of Hydraulic system

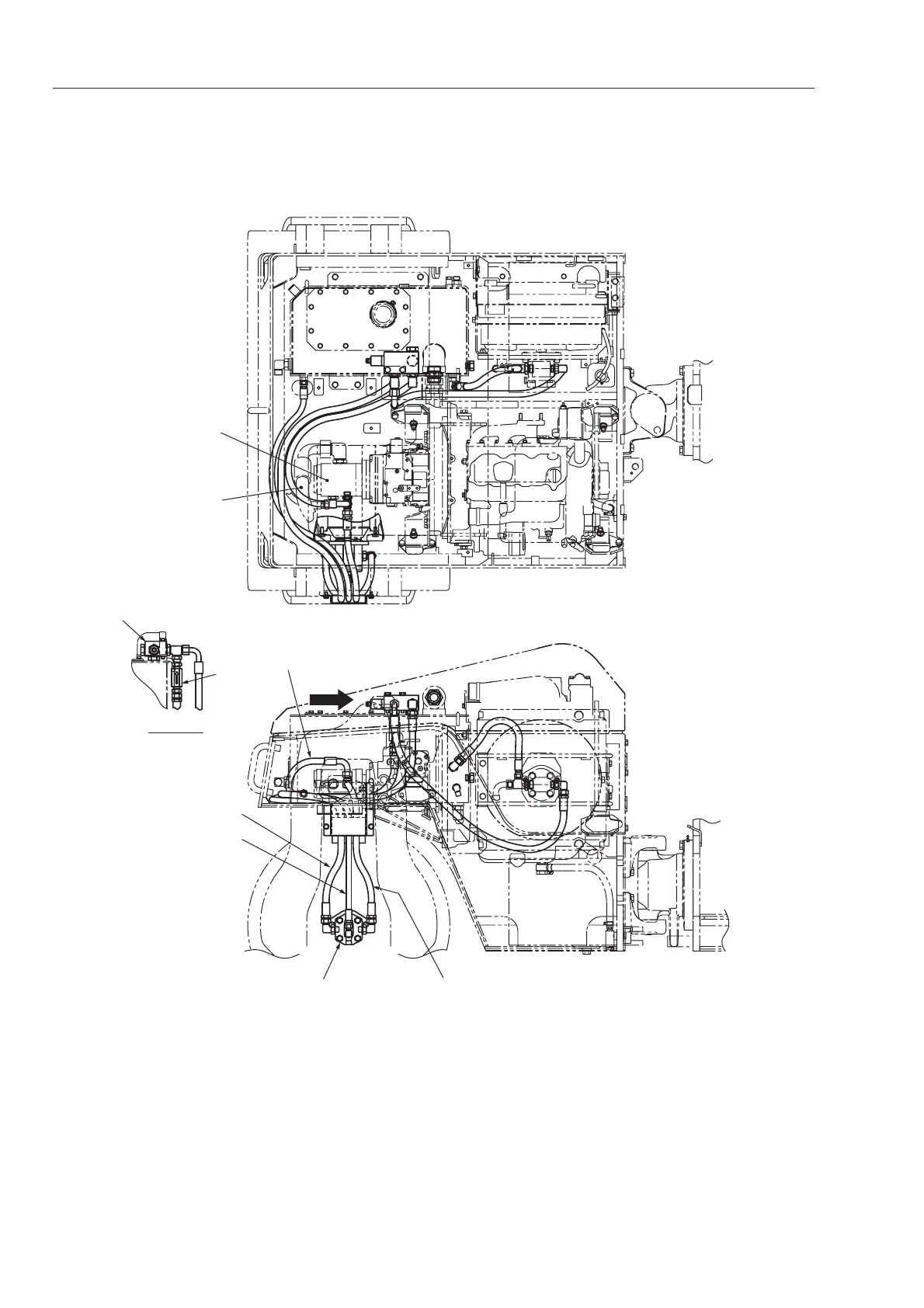

2-3-3. Hydraulic piping (TW352)
TW5022035
1
2
A
3
6
7
45
9
8
VIEW A
1. Vibrator pump &
steering/charge pump
2. Suction hose
3. Pump outlet hose
4. Vibrator motor
5. High pressure hose
6. Return hose
7. Drain hose
8.
Vibrator on-off solenoid valve
9. Check valve
