Sakai TW352 - 5 Liquid Sprayer; Liquid Sprayer Piping

2-056
Liquid Sprayer

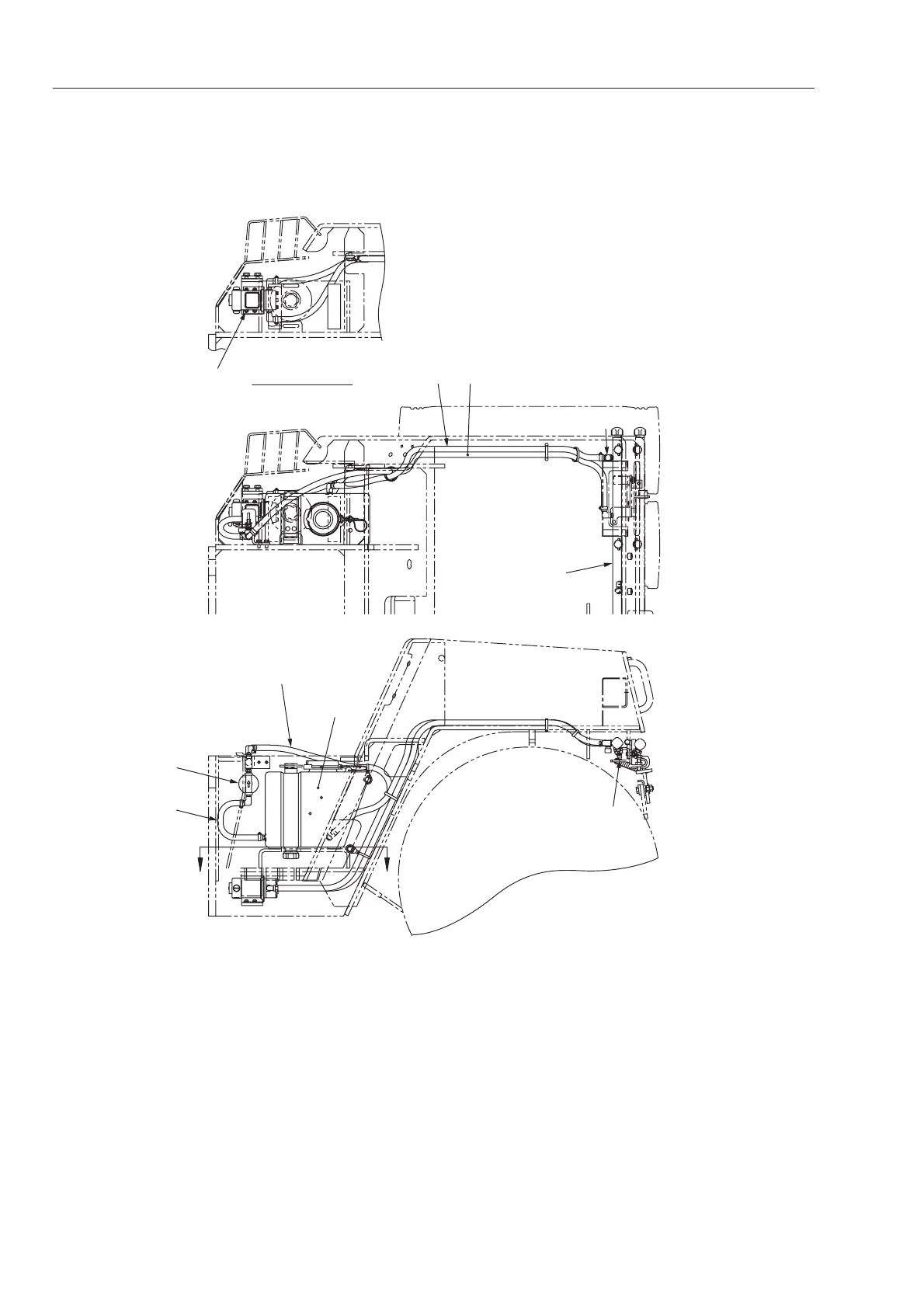

5. Liquid Sprayer
5-1. Liquid sprayer piping
TW5022050
1
4
2
3
6
8
9
7
A
A
5
SECTION A-A
1. Liquid tank
2. Liquid filter
3. Hose (tank to filter)
4. Hose (filter to pump)
5. Liquid spray pump
6. Hose (pump to pipe)
7. Hose (pipe to pump)
8. Liquid pipe
9. Liquid nozzle
★ Above illustrations represent liquid spray system for TW352 and TW502.
