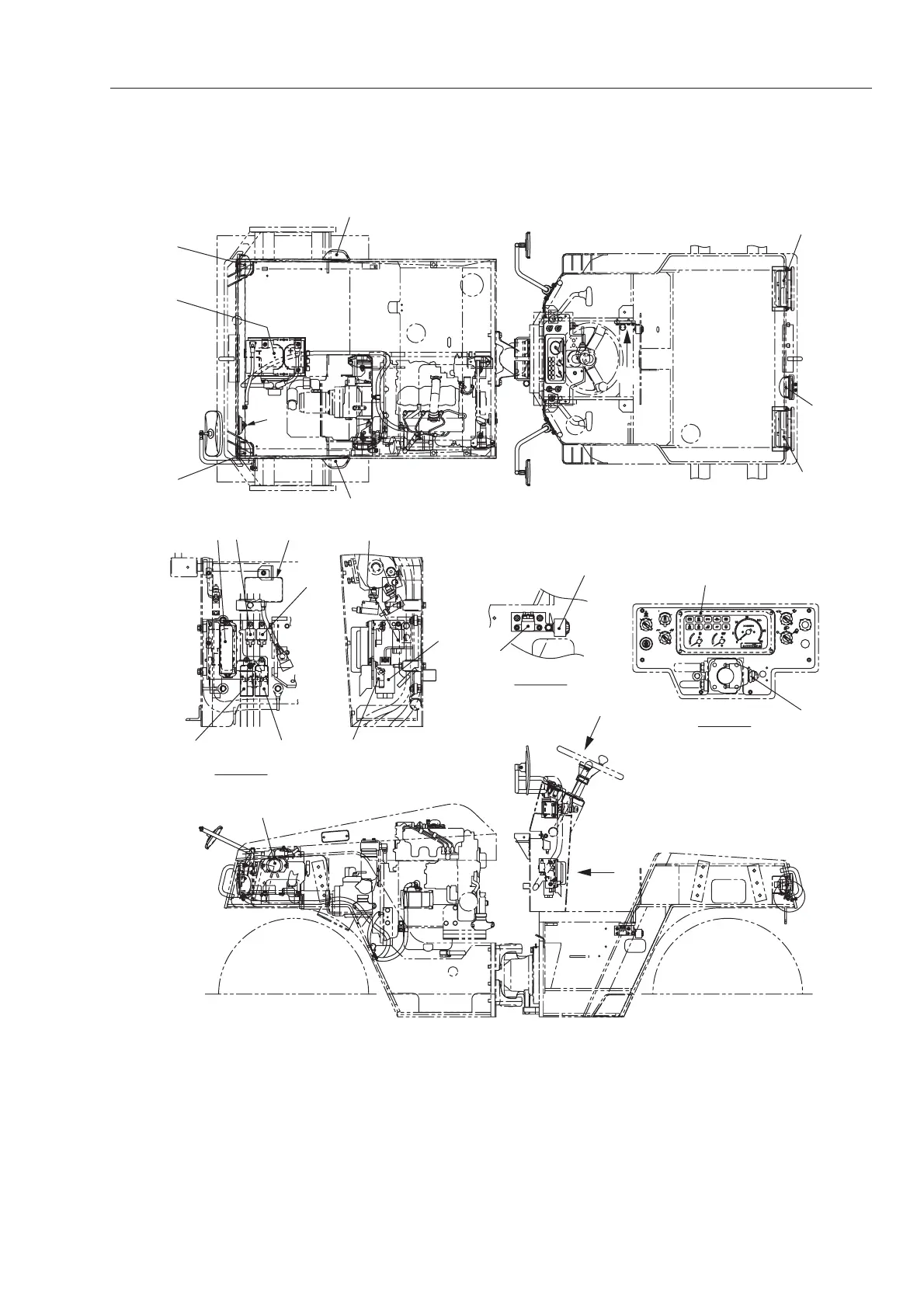

6. Electric System
6-1. Location of instrument panel and key units
TW5022051
A
18
18
19
14 2
16
17
14
15
15
14
7
3
69
8
13
12
10
11
5
C
B
20
VIEW A
VIEW C
VIEW B
1. Fuse box
2. Control box
3. Horn relay
4. Vibrator lamp relay
5. Interlock relay
6. Brake lamp relay
7. Flasher unit
8. Vibrator relay
9. Glow lamp timer
10. Combination meter
11. Turn signal switch
12. Sprinkler relay
13. Reverse alarm
14. Head lamp
15. Turn signal lamp
16. Battery
17. Horn
18. Combination lamp
19. Work lamp
20. Battery relay
