Sakai TW352 - Vibrating System; Hydraulic Piping (SW352)

2-036
Description and Operation of Hydraulic System
2-3. Vibrating system

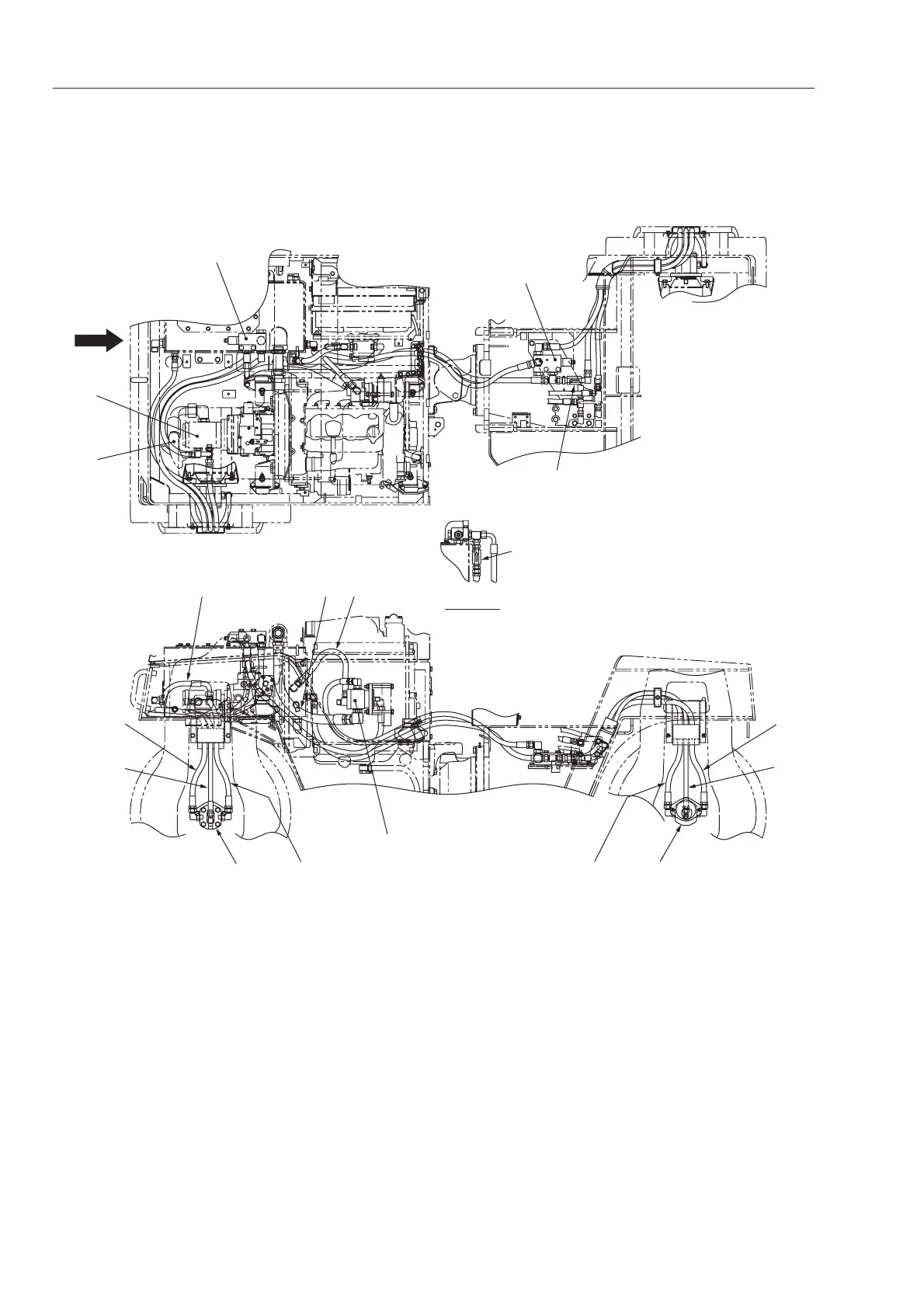

2-3-1. Hydraulic piping (SW352)
TW5022033
A
23
9
11
10
8
1
2
10
5512
3
6
7
6
7
4
VIEW A
1. Front vibrator pump &
steering/charge pump
2. Suction hose
3. Pump outlet hose
4. Front vibrator motor
5. High pressure hose
6. Return hose
7. Drain hose
8.
Front vibrator on-off solenoid
valve
9. Front check valve
10. Rear vibrator on-off solenoid
valve
11. Rear charge valve
12. Rear vibrator motor
