Sakai TW352 - Vibrator (SW352, TW352)

2-042
Description and Operation of Hydraulic system
1. Side plate
2. Propulsion motor
3. Shockmount
4. Disc
5. Lock ring
6. Lock ring
7. Drum
8. Oil seal
9. Disc
10. Shim
11. O-ring
12. Vibrator motor
13. Cover
14. Cover
15. Spring pin
16. Sleeve
17. O-ring
18. Breather
19.
Taper roller bearing
20. Side plate
21. Plug
22. Boss
23. O-ring
24. Roller bearing
25. O-ring
26. O-ring
27. O-ring
28. Holder

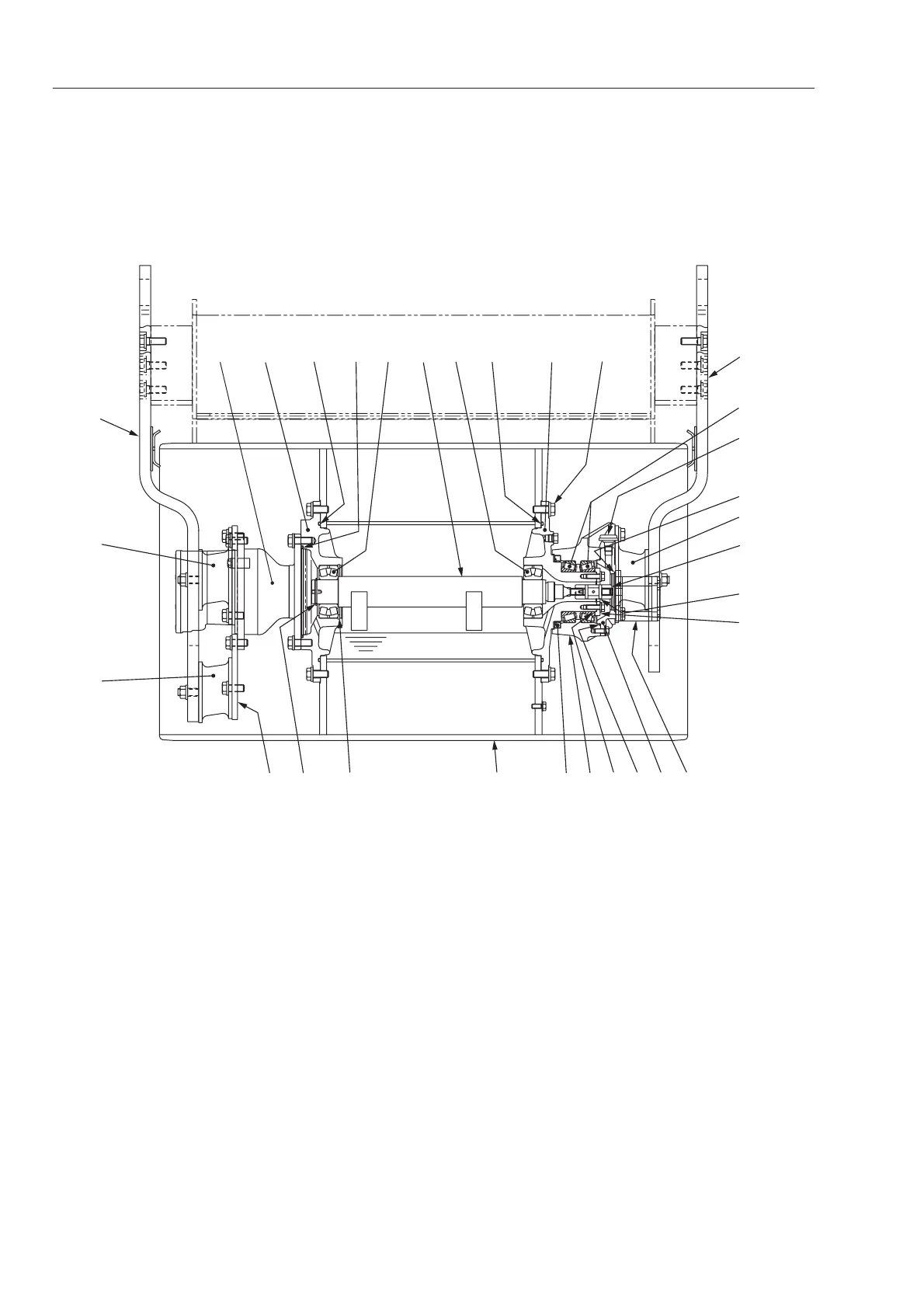

2-3-7. Vibrator (SW352, TW352)
TW5022039
2
1
3
3
45 6 7 891011 13 12
14
16
15
3
17
19
202122232424262728 25
18
