Sam4s SPT-3000 User Manual

4-7

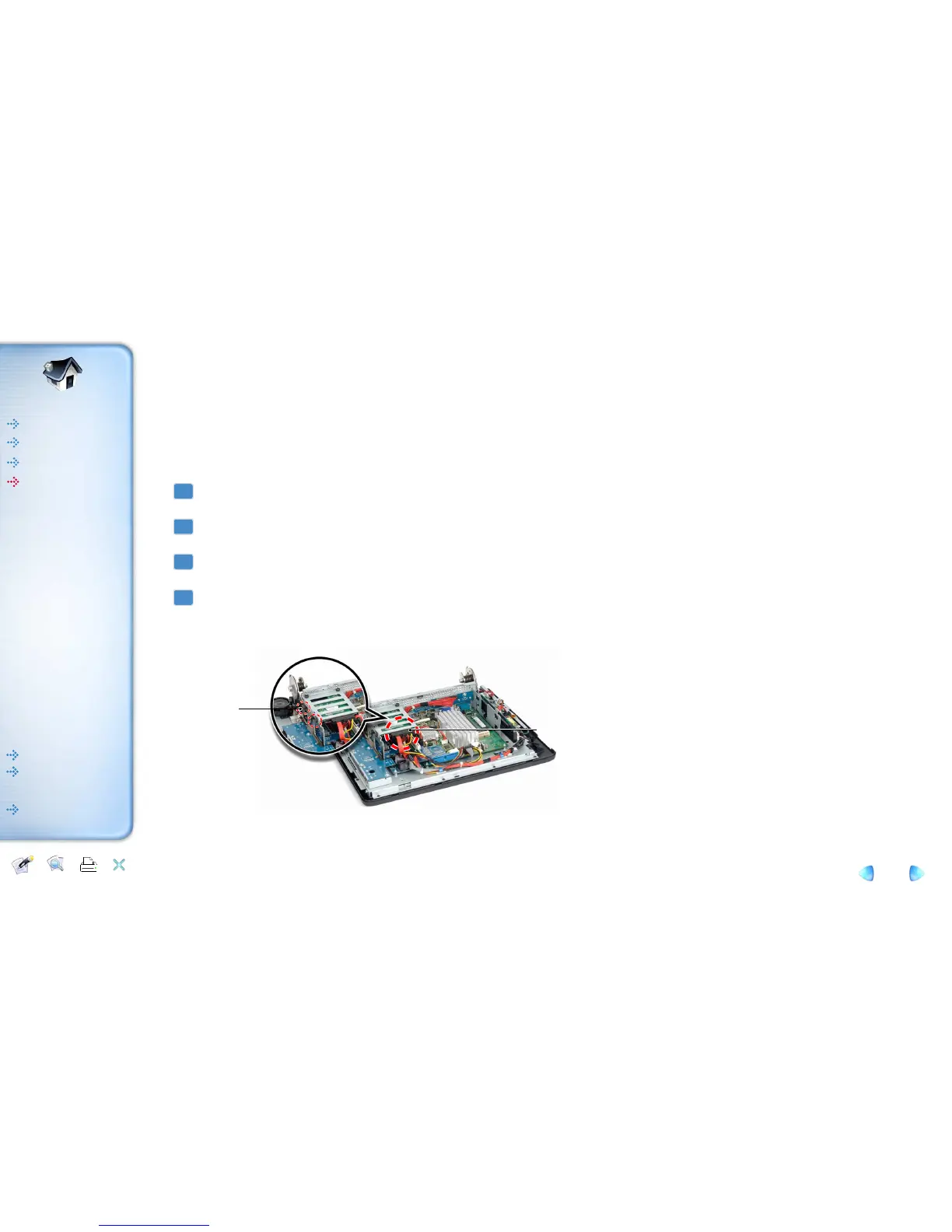

Replacing Hard Disk Drive
2.5 inch SATA type can only be installed, hence the hard drive type should be checked before purchase.
Before system dismantle, save data, turn off the system and all cables & mains power should be disconnected.
1
Disconnect system back cover, refer to the system dismantle contents.
2
Disconnect power & data cable of hard disk drive.
3
4
Help Printer
Exit
