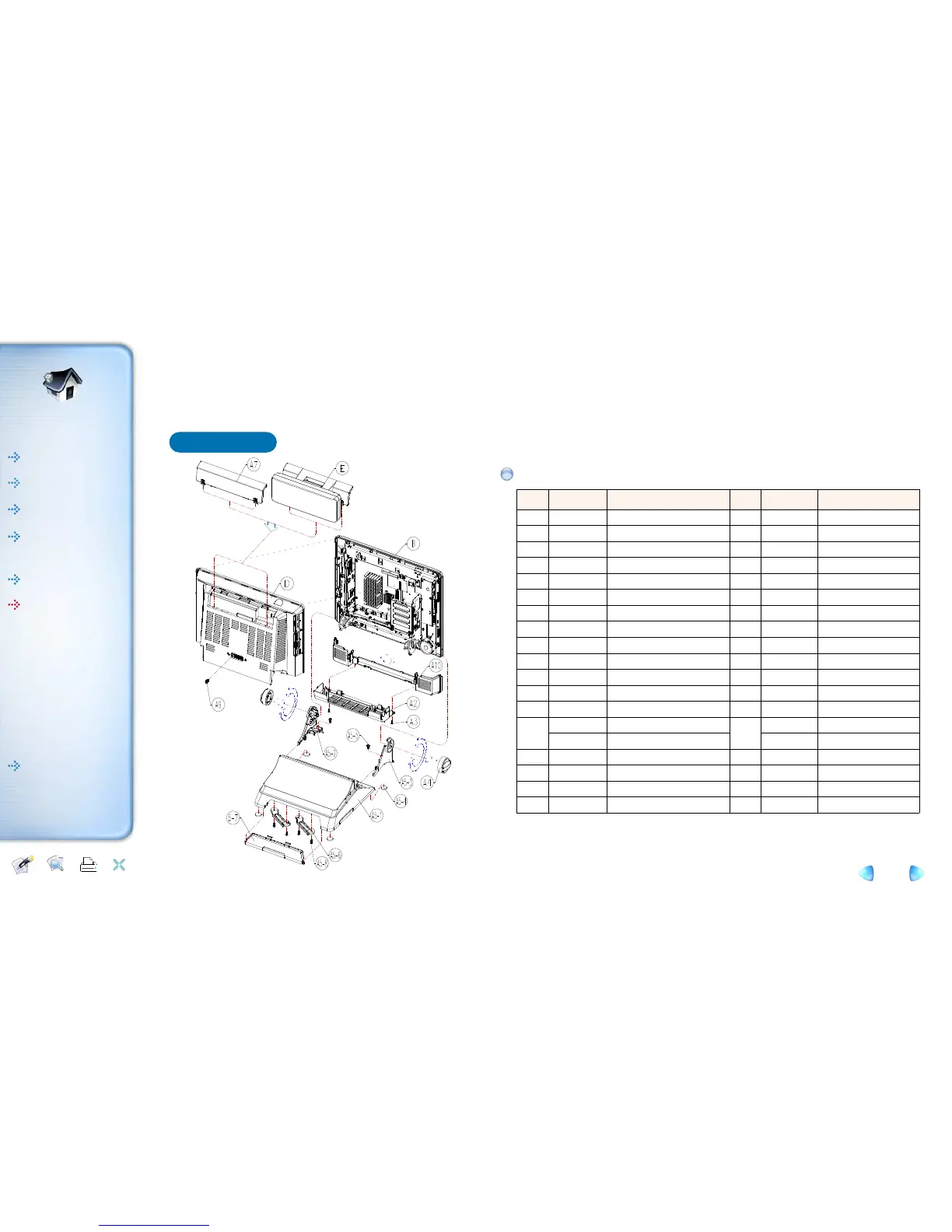

No. PARTS CODE PARTS NAME Q'TY Serviceable REMARK
B - ASS'Y-MAIN DISPLAY 1 N
A2 JK72-20283A PMO-COVER CABLE 1 Y
A3 JK70-50072A SCREW-TAPTITE 2 Y
A4 JK97-20081A MEA-LEVER HINGE 2 Y
A5 JK93-00002A PHA-MAIN STAND 1 Y
A5-1 JK72-20304A PMO-STAND 1 Y
A5-2 JK70-20101B IPR-HINGE SUPPORT(R) 1 Y
A5-3 JK70-20101A IPR-HINGE SUPPORT(L) 1 Y
A5-4 JK70-60036A RMO-FOOT RUBBER 4 Y
A5-5 6003-001149 SCREW-TAPTITE 2 Y
A5-6 JK72-20303A PMO-HOLDER WIRE 2 Y
A5-7 JK72-20302A PMO-COVER DUMMY STAND 1 Y
A5-8 JK70-50083A SCREW-TAPTITE 4 Y
QCD-V202 OPTION-CDP(CHARACTER) Y OPTION
QCD-G256 OPTION-CDP(GRAPHIC) Y OPTION
A7 JK72-20286 PMO-COVER REAR DUMMY 1 Y Buyer SPEC (Silk)
D JK94-01524B PRA-COVER REAR(T) 1 Y
A9 JK70-50081A SCREW-MACHINE COIN 1 Y
A10 JK72-20295A PMO-REAR DISP BOTTOM 1 Y
