Sam4s SPT-3000 User Manual

4-15

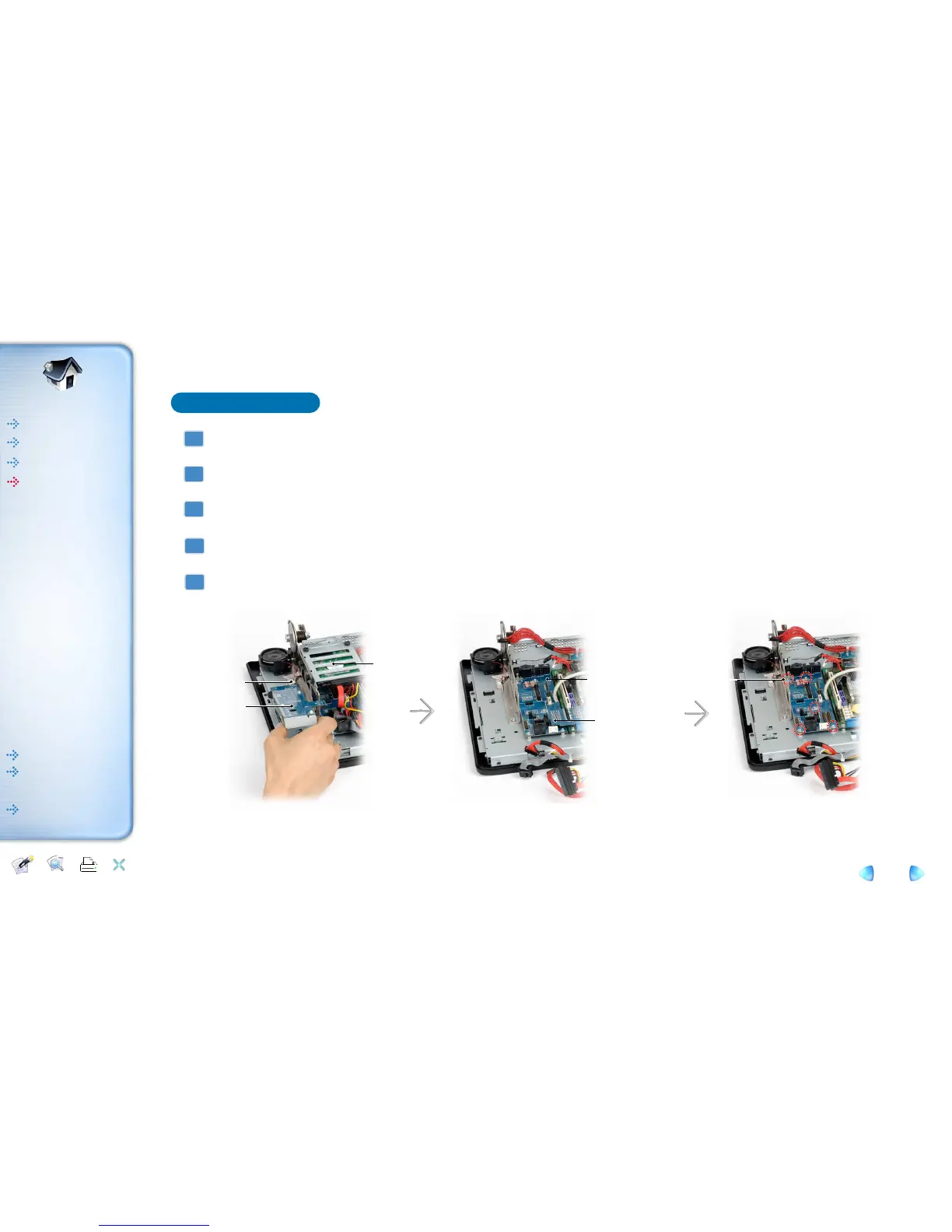

Remove system back cover (refer to System Dismantle).
1
2
4
3
Remove Power board
Help Printer
Exit
Content
Introductions
Inverter Module
LED Board
Main Board
Touch Panel and TFT-LCD
Magnetic Dallas (Option)
Getting Started
Using this system
BIOS Setup
How to use PDF
HOME
Introductions
System Disassemble
System Reassemble
Memory Module
Hard Disk Drive
Internal Speaker
SD Card & USB Board
Inverter Module
Touch & MSR Board
LED Board
Power Board
Main Board
Touch Panel and TFT-LCD
Magnetic Dallas (Option)
Getting Started
BIOS Setup
How to use PDF
HOME
Exploded View
and Replaceable
parts
Using this system
Removal and
Replacement
Magnetic Stripe Reader
(MSR)
e-manual
Disconnect cables for speaker and remove SD board (refer to System Dismantle).
Disconnect cables for HDD and remove HDD module (refer to System Dismantle).
Disconnect all cables to Power board.
5
Remove Power board after undoing screws (6EA) which hold Power board.
Speaker Cable
SD Card board
HDD Module
Power board
Joint board
Screw
