Sam4s SPT-3000 User Manual

4-14

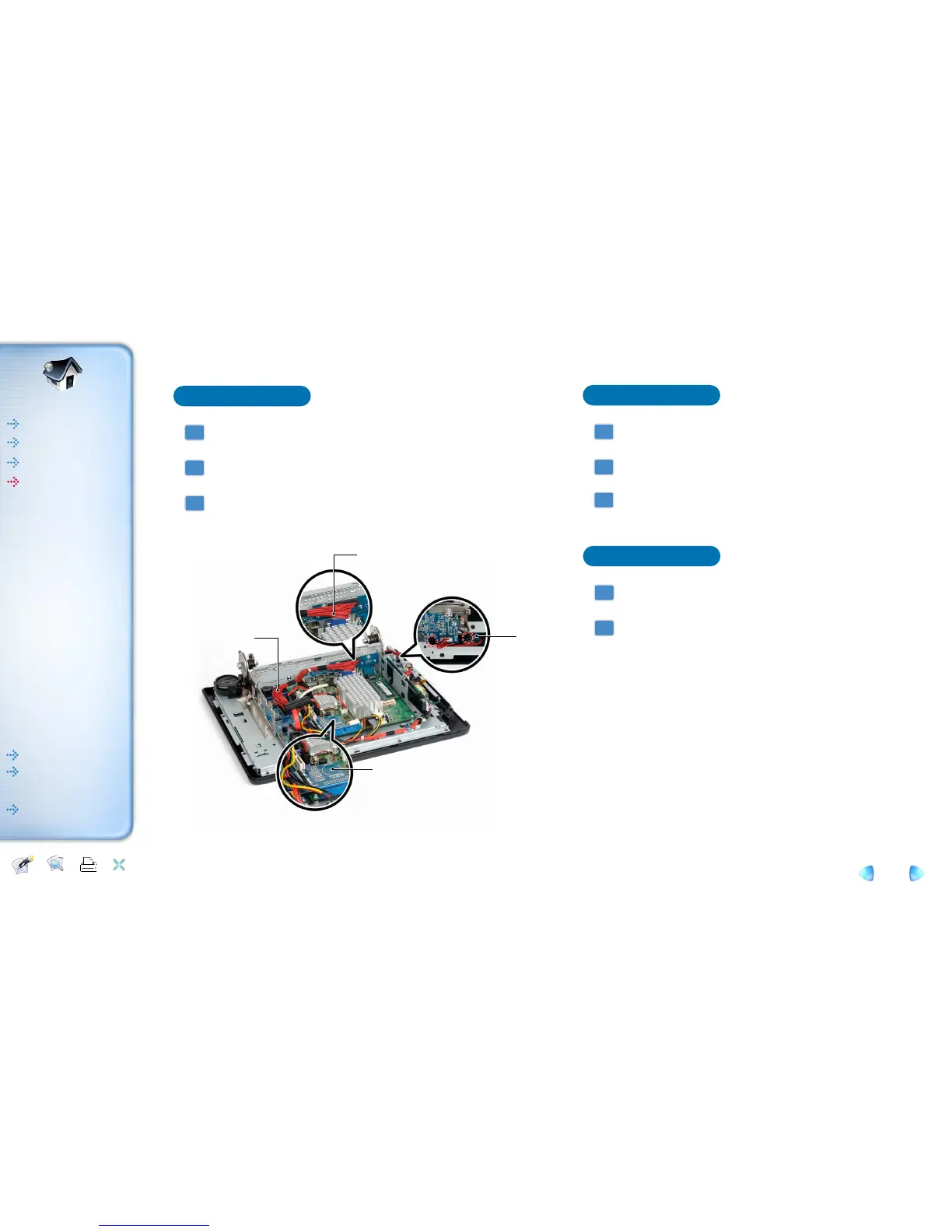

Remove system back cover (refer to System Dismantle).
1
Disconnect cables which connect LED board.
2
Remove LED board after undoing screws (2EA) which hold LED board.
3
Remove LED board
Help Printer
Exit
Content
Introductions
Inverter Module
Power Board
Main Board
Touch Panel and TFT-LCD
Magnetic Dallas (Option)
Getting Started
Using this system
BIOS Setup
How to use PDF
HOME
Introductions
System Disassemble
System Reassemble
Memory Module
Hard Disk Drive
Internal Speaker
SD Card & USB Board
Inverter Module
Touch & MSR Board
LED Board
Power Board
Main Board
Touch Panel and TFT-LCD
Magnetic Dallas (Option)
Getting Started
BIOS Setup
How to use PDF
HOME
Exploded View
and Replaceable
parts
Using this system
Removal and
Replacement
Magnetic Stripe Reader
(MSR)
e-manual
DSUB board
LED board
& cable
DSUB cable
JOINT board
Remove system back cover (refer to System Dismantle).
1
Disconnect cables which connect DSUB board.
2
Remove DSUB board.
Remove DSUB board
3
1
2
Remove JOINT board.
Remove JOINT board
