Sam4s SPT-3000 User Manual

B-31
Part List
Exploded views(Option)
Part Drawing(Power)
Help Printer
Exit
Content
Getting Started
Using this system
HOME
Introductions
Removal and
Replacement
BIOS Setup
Exploded View
and Replaceable
parts
Main Board Configuration
Major Interface Connector
Pin Assignments
Exploded Views and Parts
List
How to use PDF
e-manual
SUB Board Configuration &
Pin Connection

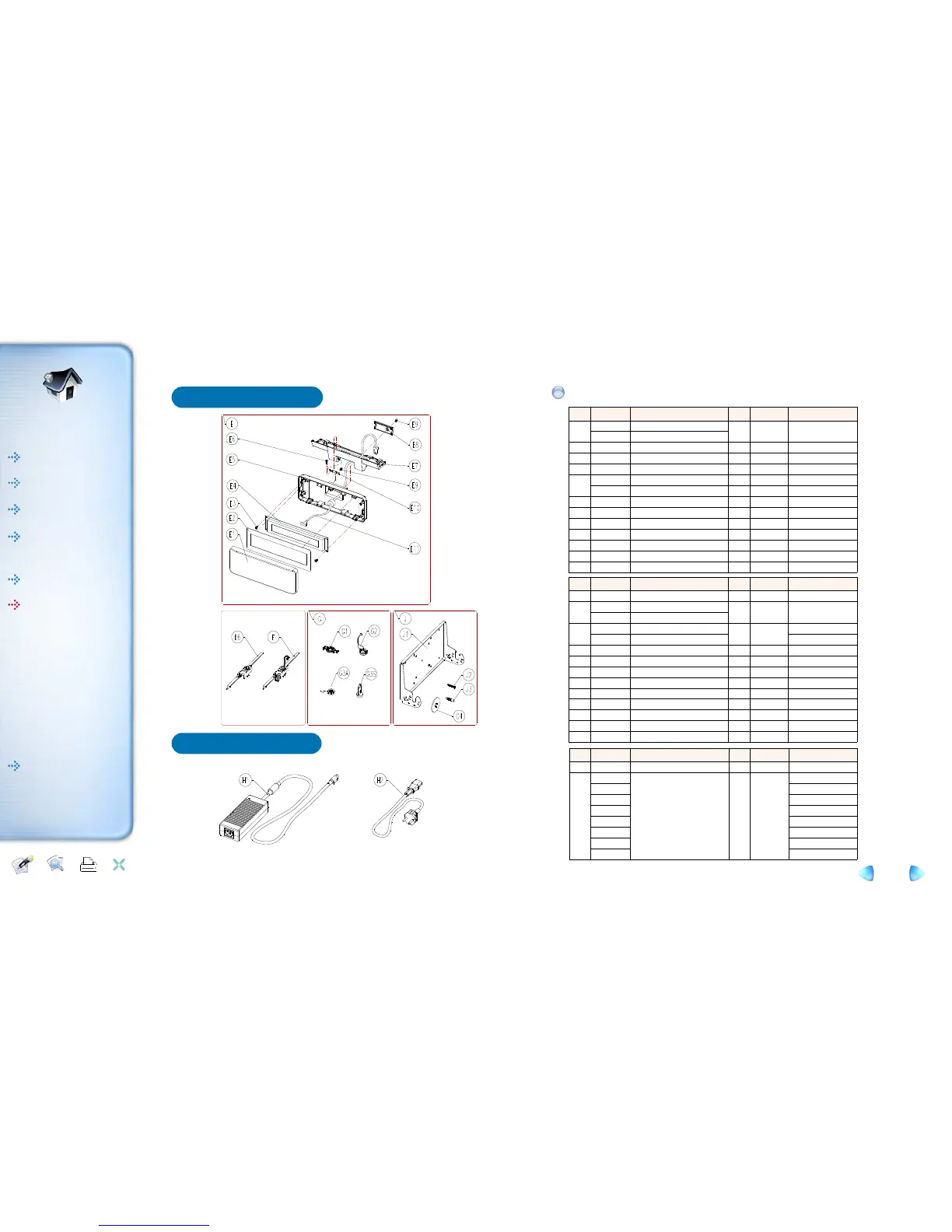

No. PARTS CODE PARTS NAME Q'TY Serviceable REMARK
QCD-V202 OPTION-CDP(CHARACTER)
QCD-G256 OPTION-CDP(GRAPHIC)
E1 JK72-20299A PMO-WINDOW VFD 1 Y
E2 JK68-40120A LABEL(R)-VFD SHEET 1 Y
E3 JK70-50072A SCREW-TAPTITE 2 Y
JK46-00006A UNIT-VFD MODULE(CHARACTER) 1 Y
JK46-00007A UNIT-VFD MODULE(GRAPHIC) 1 Y
E5 JK72-20298A PMO-REAR VFD(M) 1 Y
E6 JK70-50072A SCREW-TAPTITE 1 Y
E7 JK72-20297A PMO-HOLDER VFD(M) 1 Y
E8 JK72-20300A PMO-REAR VFD DUMMY 1 Y
E9 JK70-50072A SCREW-TAPTITE 1 Y
E10 JK75-20063A MEC-HINGE ASS'Y 1 Y
E11 JK39-40727A HARNESS-POLE 1 Y
OPTION
E4
E1Y
No. PARTS CODE PARTS NAME Q'TY Serviceable REMARK
B6 JK70-20097A IPR-BRKT MSR 1 Y NONE MSR
QMR-T300 OPTION-MSR(TRACK 2-3)
QMR-T310 OPTION-MSR(TRACK 1-2)
QDK-T305 OPTION-DALLAS(M) PROBE + HOLDER(5EA)
QDK-T310 OPTION-DALLAS(M) PROBE + HOLDER(10EA)
G1 JK72-20290A PMO-HOLDER PROBE 1 Y
G2 JK96-10155C ELA UNIT-iBUTTON PROBE 1 Y
G3A JK96-10146B ELA UNIT-HOLDER DALLAS 1 Y ANGLE TYPE
G3S JK96-20090A ELA UNIT-HOLDER DALLAS 1 Y STRAIGHT TYPE
J EWM-Q300 OPTION-WALL MOUNT 1 Y
J1 JK70-20134A IPR-BRKT WALL 1 N
J2 - SCREW 4 N
J3 - ANCHOR 4 N
C4 JK70-60035A RMO-RUBBER HINGE 2 Y
OPTION
G1Y
YF1
No. PARTS CODE PARTS NAME Q'TY Serviceable REMARK
H1 JK44-40006A POWER-SMPS 1 Y
JK39-20004A EUROPE,BLK
JK39-20004B USA,SVT
JK39-20004C UK,ASTA
JK39-20004D AUSTRALIA
JK39-20004E KOREA
JK39-20004F SOUTH AFRICA
JK39-20004G ISRAEL
JK39-20004H INDIA
YH2 CBF POWER CORD 1
