Sam4s SPT-3000 User Manual

B-30
Help Printer
Exit
Content
Getting Started
Using this system
HOME
Introductions
Removal and
Replacement
BIOS Setup
Exploded View
and Replaceable
parts
Main Board Configuration
Major Interface Connector
Pin Assignments
Exploded Views and Parts
List
How to use PDF
e-manual
SUB Board Configuration &
Pin Connection
Part List

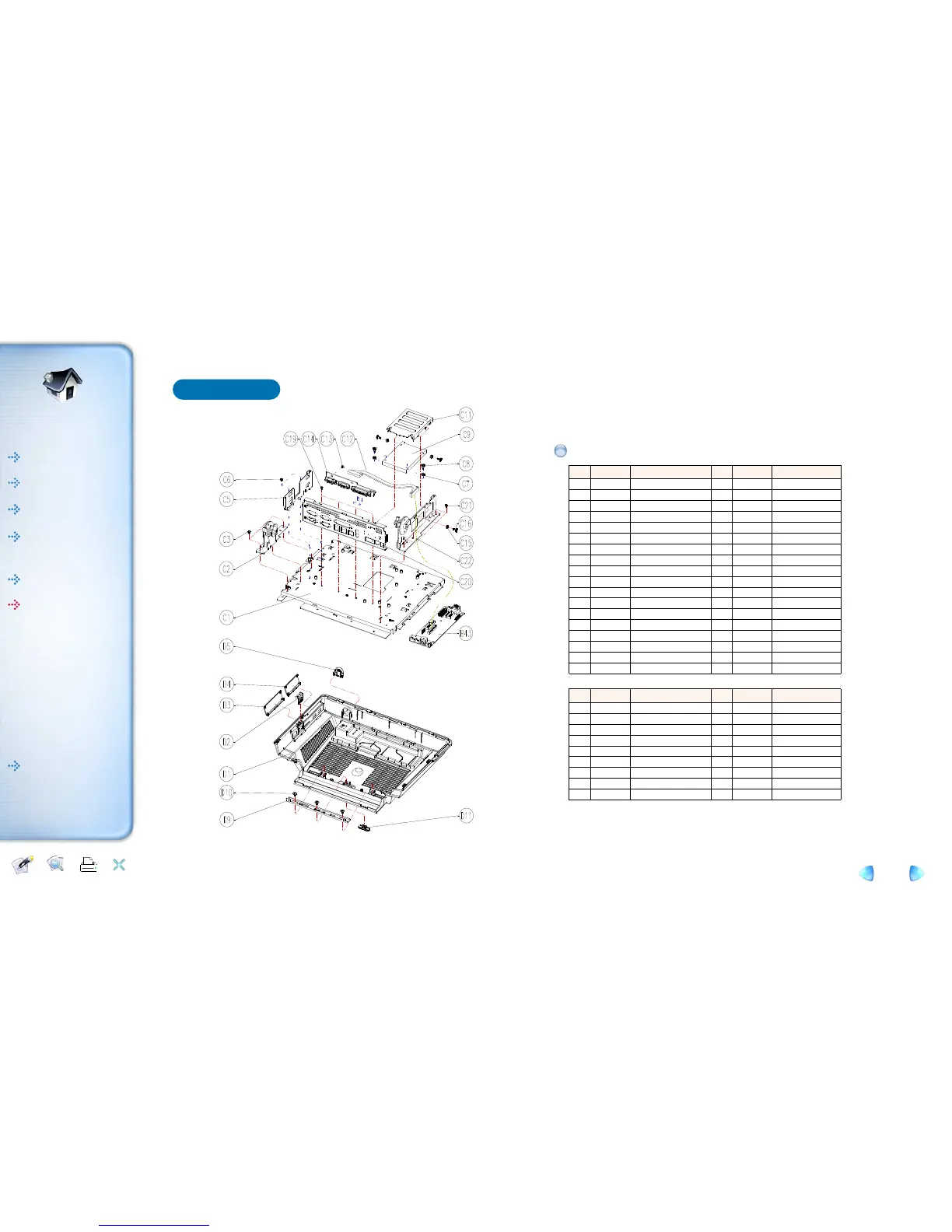

Exploded Views
No. PARTS CODE PARTS NAME Q'TY Serviceable REMARK
D JK94-01524B PRA-COVER REAR(T) 1 Y
D1 JK72-20296A PMO-REAR DISP TOP 1 Y
D2 JK72-20281A PMO-BUTTON POWER 1 Y
D3 JK72-20285A PMO-COVER POWER 1 Y
D4 JK72-20287A PMO-COVER USB 1 Y
D5 JK72-20282A PMO-COVER ANTENNA 1 Y
D9 JK70-20096A IPR-BRKT LOCK(R) 1 Y
D10 JK70-50029A SCREW-TAPPING 3 Y
D11 JK72-20293A PMO-KNOB LOCK 1 Y
No. PARTS CODE PARTS NAME Q'TY Serviceable REMARK
C1 JK97-20077A MEA-BRKT DISPLAY(M) 1 Y
C2 JK97-20092C MEA-BRKT HINGE(L) 1 Y
C3 6001-000665 SCREW-MACHINE 3 Y
C5 JK70-20100A IPR-BRKT SIDE(M) 1 Y
C6 6001-000665 SCREW-MACHINE 2 Y
C7 JK70-60029A RMO-RUBBER INSULATOR 4 Y
C8 JK70-50080A SCREW-MACHINE HAND 4 Y
C9 JK97-00001A UNIT-HDD 1 Y
C11 JK70-20090B IPR-BRKT HDD 1 Y
C12 JK39-40784A HARNESS-DSUB B'D 1 Y
C13 6001-000665 SCREW-MACHINE 2 Y
C14 JK92-01515G PBA-SUB DSUB B'D 1 Y
C15 JK70-60029A RMO-RUBBER INSULATOR 2 Y
C16 JK70-50080A SCREW-MACHINE HAND 2 Y
C19 JK70-50049A SCREW-MACHINE 4 Y
C20 JK97-20078B MEA-BRKT IO SHIELD(V) 1 Y
C21 6001-000665 SCREW-MACHINE 3 Y
C22 JK97-20092D MEA-BRKT HINGE(R) 1 Y
