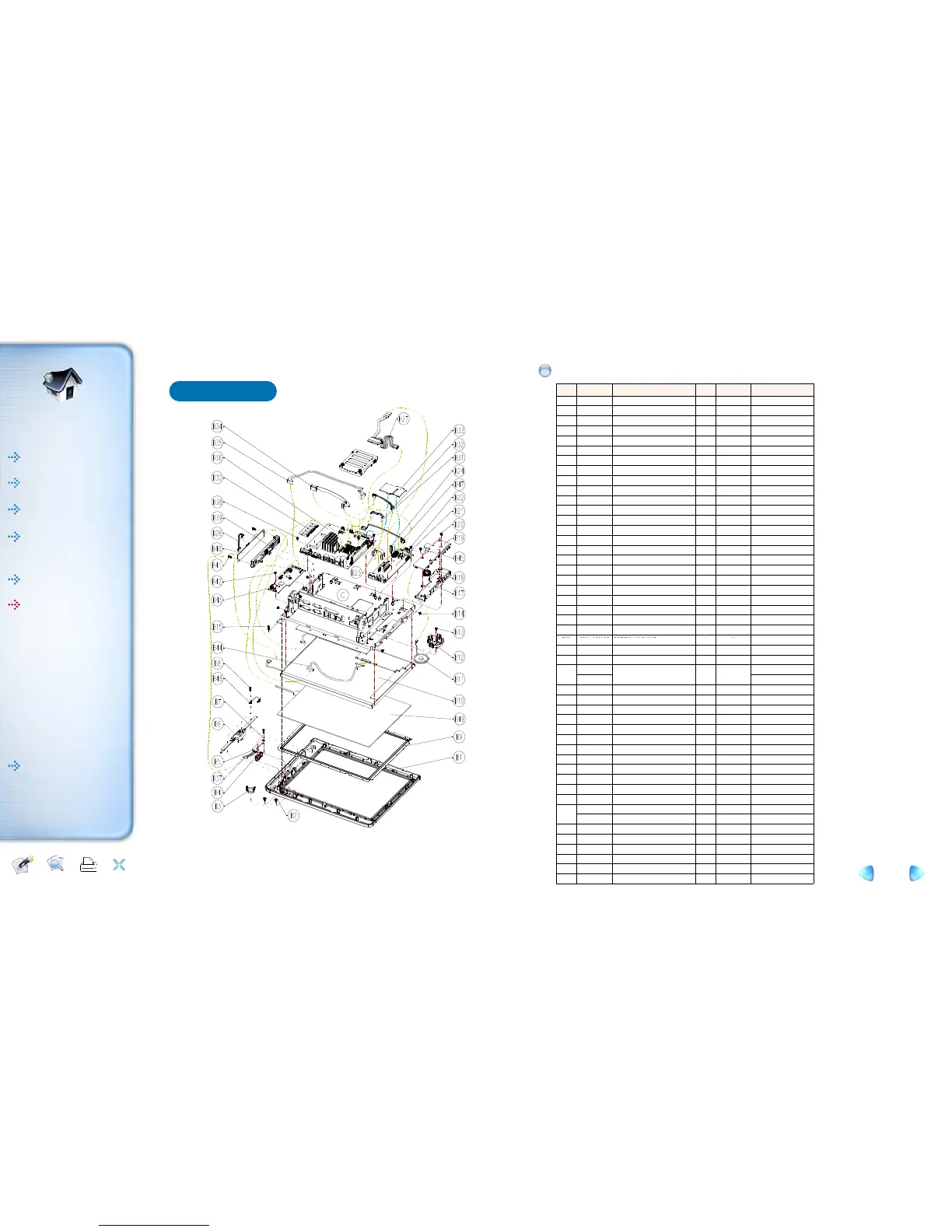

Exploded Views
No. PARTS CODE PARTS NAME Q'TY Serviceable REMARK
B1 JK72-20288 PMO-FRONT DISPLAY 1 Y Buyer SPEC (Silk)
B2 JK70-50029A SCREW-TAPPING 2 Y
B3 JK72-20284A PMO-COVER DECO 1 Y
B4 JK72-20294A PMO-LENS LED 1 Y
B5 JK92-01515F PBA-SUB LED B'D 1 Y
B6 JK70-20097A IPR-BRKT MSR 1 Y
B7 JK70-50072A SCREW-TAPTITE 2 Y
B8 JK70-50072A SCREW-TAPTITE 3 Y
B9 JK70-60028A RMO-WATER PROOF 1 Y
B10 JK07-00012A LCD-TFT 1 Y
B11 3004-000001 UNIT-SPEAKER 1 Y
B12 JK72-20291A PMO-HOLDER SPEAKER 1 Y
B13 6001-000665 SCREW-MACHINE 1 Y
B14 6001-000665 SCREW-MACHINE 4 Y
B15 JK70-50072A SCREW-TAPTITE 11 Y
B16 6001-000665 SCREW-MACHINE 3 Y
B17 JK70-20098A IPR-BRKT SD CARD 1 Y
B18 JK72-20292A PMO-KNOB BRIGHT 1 Y
B19 JK92-01515C PBA-SUB USB B'D 1 Y
B20 6001-000665 SCREW-MACHINE 1 Y
B21 JK92-01515B PBA-SUB POWER B'D 1 Y
B22 6001-000665 SCREW-MACHINE 5 Y
B23 JK39-40781A HARNESS-USB 1 Y
B24 JK70-70046A ICT-MACHINE HEXA 2 Y OPTION
B26
6001 000665
SCREW MACHINE
1
Y
B26
6001
-
000665
SCREW
-
MACHINE
1
Y
B27 JK39-40786A HARNESS-SATA 1 Y
B28 JK39-40720A HARNESS-INVERTER 1 Y
JK97-00003A DDR2,2GB,SODIMM
JK97-00004A DDR2,1GB,SODIMM
B31 JK39-40782A HARNESS-AUDIO 1 Y
B32 JK39-40788A HARNESS-MAIN INVERTER 1 Y
B33 JK92-01515E PBA-SUB JOINT B'D 1 Y
B34 JK39-40780A HARNESS-F/PANEL 1 Y
B35 JK39-40785A HARNESS-TOUCH B'D 1 Y
B36 JK97-00002A UNIT-MOTHER B'D 1 Y
B37 JK39-40721A HARNESS-LED 1 Y
B38 6001-000665 SCREW-MACHINE 4 Y
B39 JK72-20289A PMO-HOLDER INVERTER 1 Y
B40 4401-001169 UNIT-INVERTER MODULE 1 Y
B41 6002-000175 SCREW-TAPPING 2 Y
B42 6001-000665 SCREW-MACHINE 2 Y
JK92-01515D PBA-SUB TOUCH(W/O DALLAS) 1 Y
JK92-01516B PBA-SUB TOUCH(WITH DALLAS) 1 Y OPTION-DALLAS
B44 JK39-40787A HARNESS-LVDS 1 Y
B45 6001-000665 SCREW-MACHINE 3 Y
B47 JK39-40783A HARNESS-POWER 1 Y
B48 JK39-40661A HARNESS-GND 1 Y
B49 JK96-10343B ELA-TOUCH PANEL 5W 1 Y
C - ASS'Y-FRAME MAIN 1 N
B43
B30 1 YUNIT-RAM
Part List
