Sam4s SPT-3000 User Manual

4-9
1
Disconnect MSR (Magnetic Stripe Reader)
cable.
2
Remove MSR bracket while referring to the figure.
4
Remove tape which hold MSR bracket.
3
Help Printer
Exit
Content
Introductions
Internal Speaker
SD Card & USB Board
Inverter Module
Touch & MSR Board
LED Board
Power Board
Main Board
Touch Panel and TFT-LCD
Magnetic Dallas (Option)
Getting Started
Using this system
BIOS Setup
How to use PDF
HOME
Introductions
System Disassemble
System Reassemble
Memory Module
Hard Disk Drive
Internal Speaker
SD Card & USB Board
Inverter Module
Touch & MSR Board
LED Board
Power Board
Main Board
Touch Panel and TFT-LCD
Magnetic Dallas (Option)
Getting Started
BIOS Setup
How to use PDF
HOME
Exploded View
and Replaceable
parts
Using this system
Removal and
Replacement
Magnetic Stripe Reader
(MSR)
e-manual

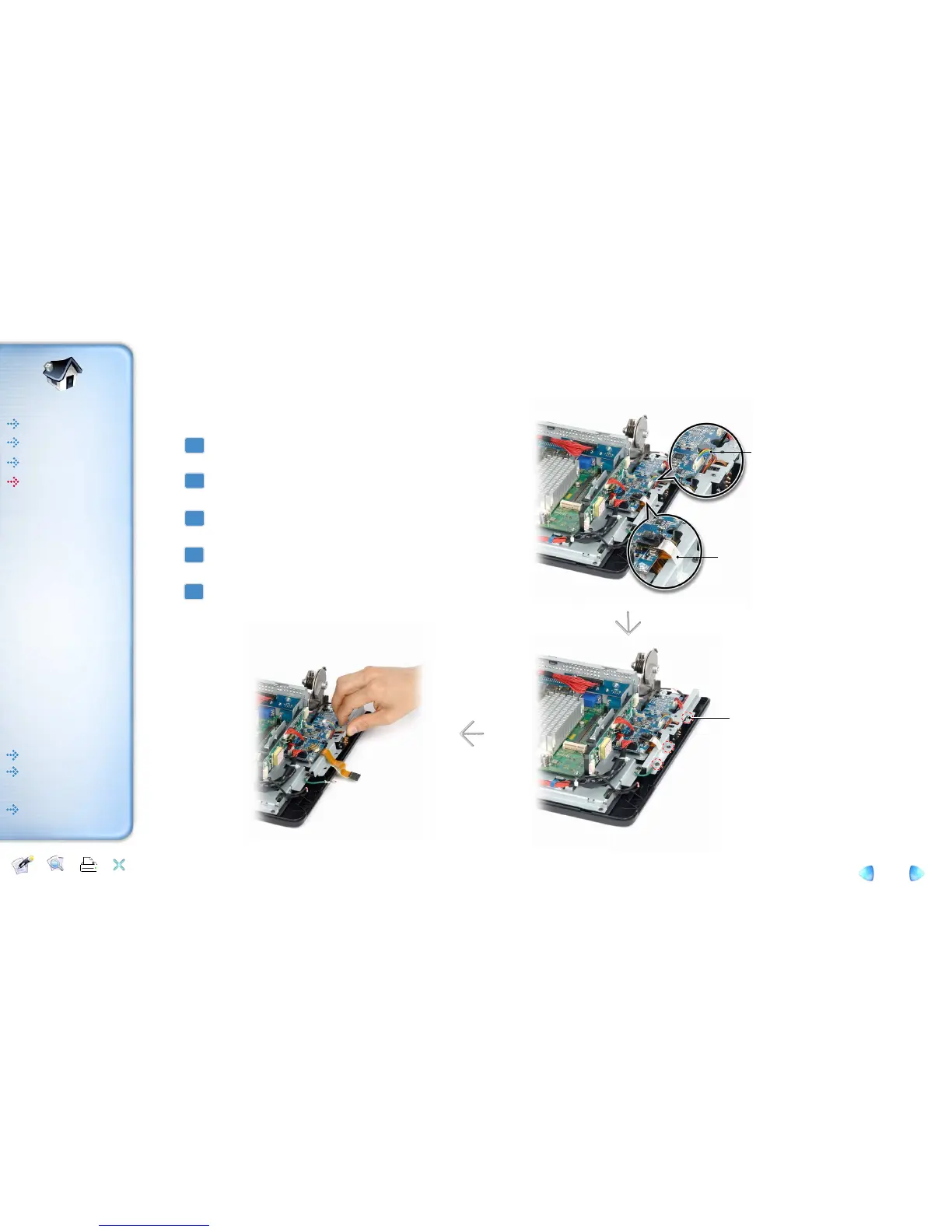

Magnetic Stripe Reader(MSR) Removal
Remove system back cover (refer to System Dismantle).
5
Remove 3 screws which hold MSR bracket.
Screw
Tape
MSR cable
