Serial Communication(D-SUB9 FEMALE / RJ45)
Help Printer
Exit
Content
Getting Started
Using this system
HOME
Introductions
Removal and
Replacement
BIOS Setup
Exploded View
and Replaceable
parts
Main Board Configuration
Major Interface Connector
Pin Assignments
Exploded Views and Parts
List
How to use PDF
e-manual
SUB Board Configuration &
Pin Connection
 


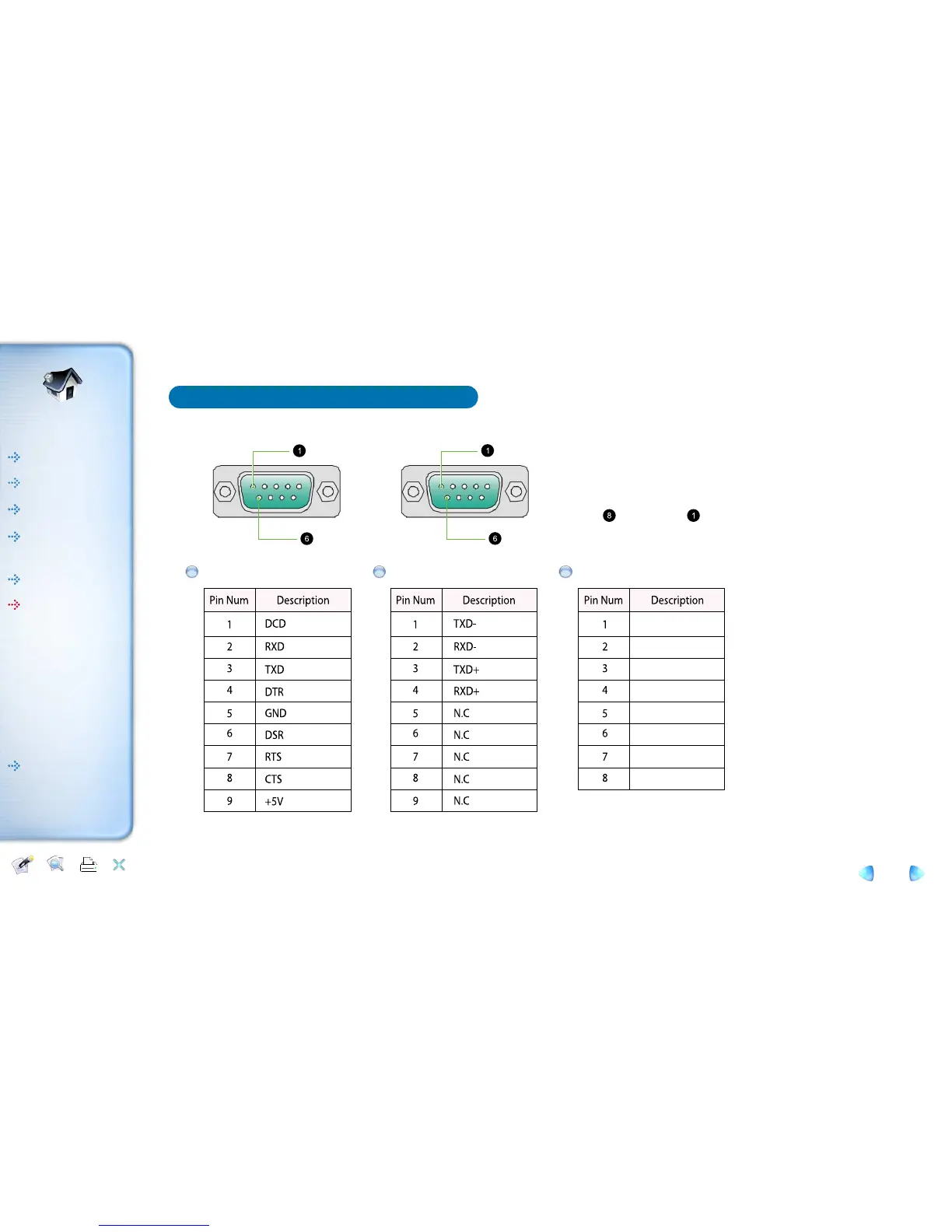

[ RS-232 Communication ]
VSERIAL
DSR
TXD
RXD
RTS
CTS
GND
DTR
[ RS-422 Communication ]
