Samson TROVIS 5579 - Page 42

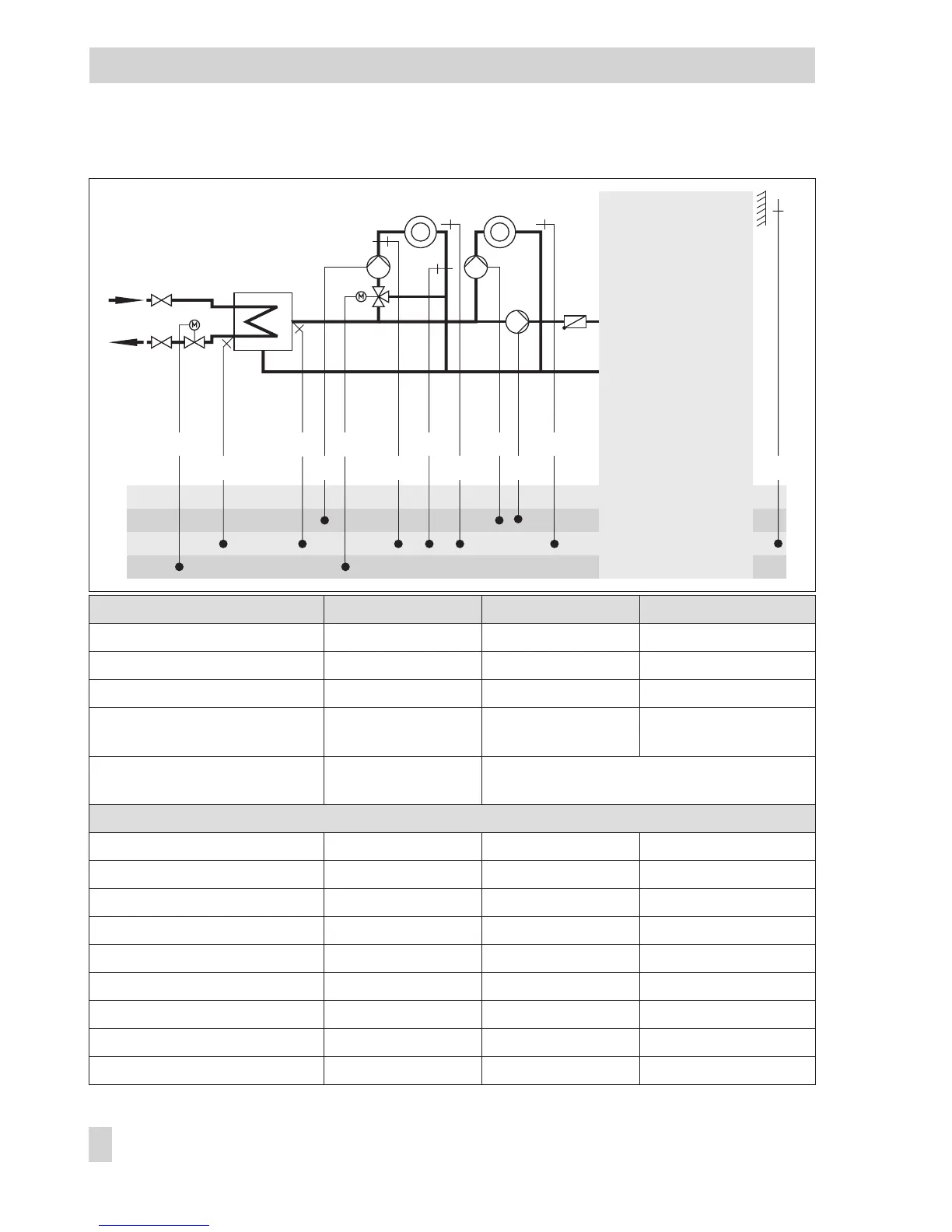

Systems Anl 4.1 to 4.3
System Anl 4.1 Anl 4.2 Anl 4.3
Type of DHW heating Type 1 Type 2 Type 3
1)
XX = SLP BA9 SLP
Integration of VF4 Not possible Possible Not possible
ZP integration with CO4 ->
F10 - 1 (broken line, see cover)
– Not possible –
Note –
Three-step signal Rk2 only w. C05 -> F18 - 1
(BA9 replaced by UP3)
Default settings
CO1 -> F01 - 0 (w/o RF1) - 0 (w/o RF1) - 0 (w/o RF1)
CO1 -> F02 - 1 (with AF1) - 1 (with AF1) - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1) - 1 (with RüF1) - 1 (with RüF1)
CO2 -> F01 - 0 (w/o RF2) - 0 (w/o RF2) - 0 (w/o RF2)
CO2 -> F02 - 0 (w/o AF2) - 0 (w/o AF2) - 0 (w/o AF2)
CO2 -> F03 - 0 (w/o RüF2) - 0 (w/o RüF2) - 0 (w/o RüF2)
CO4 -> F01 - 1 (with SF1) - 1 (with SF1) - 1 (with SF1)
CO4 -> F02 - 0 (w/o SF2) - 1 (with SF2) - 0 (w/o SF2)
CO4 -> F05 - 0 (w/o VF4)
