Samson TROVIS 5579 - Page 52

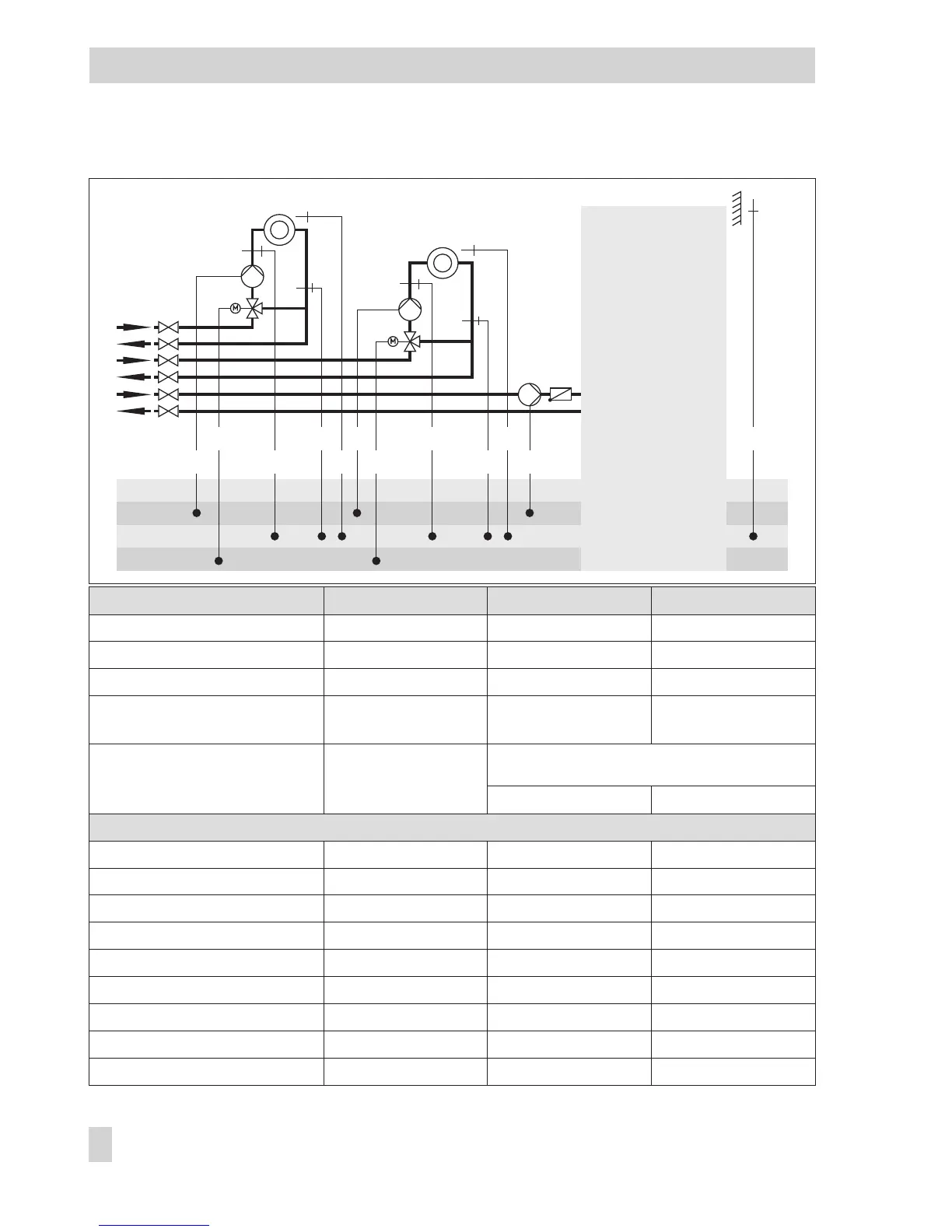

Systems Anl 10.1 to 10.3
System Anl 10.1 Anl 10.2 Anl 10.3
Type of DHW heating Type 1 Type 2 Type 3
1)
XX = SLP BA9 SLP
Integration of VF4 Possible Possible Possible
ZP integration with CO4 ->
F10 - 1 (broken line, see cover)
– Not possible –
Note
–
3-step signal Rk2 only with CO5 -> F18 - 1
(BA9 replaced by UP3)
Only second. system
Default settings
CO1 -> F01 - 0 (w/o RF1) - 0 (w/o RF1) - 0 (w/o RF1)
CO1 -> F02 - 1 (with AF1) - 1 (with AF1) - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1) - 0 (w/o RüF1) - 1 (with RüF1)
CO2 -> F01 - 0 (w/o RF2) - 0 (w/o RF2) - 0 (w/o RF2)
CO2 -> F02 - 0 (w/o AF2) - 0 (w/o AF2) - 0 (w/o AF2)
CO2 -> F03 - 1 (with RüF2) - 0 (w/o RüF2) - 1 (with RüF2)
CO4 -> F01 - 1 (with SF1) - 1 (with SF1) - 1 (with SF1)
CO4 -> F02 - 0 (w/o SF2) - 1 (with SF2) - 0 (w/o SF2)
CO4 -> F05 - 0 (w/o VF4) - 0 (w/o VF4) - 0 (w/o VF4)
52 EB 5579 EN
Systems
BE
BA
AE
AA
UP1 XX
1)
AF1 RK1/Y1
VF1
RüF1
RF1
UP2
RK2/Y2
VF2
RüF2
RF2
DHW heating
Unfold
back cover!
