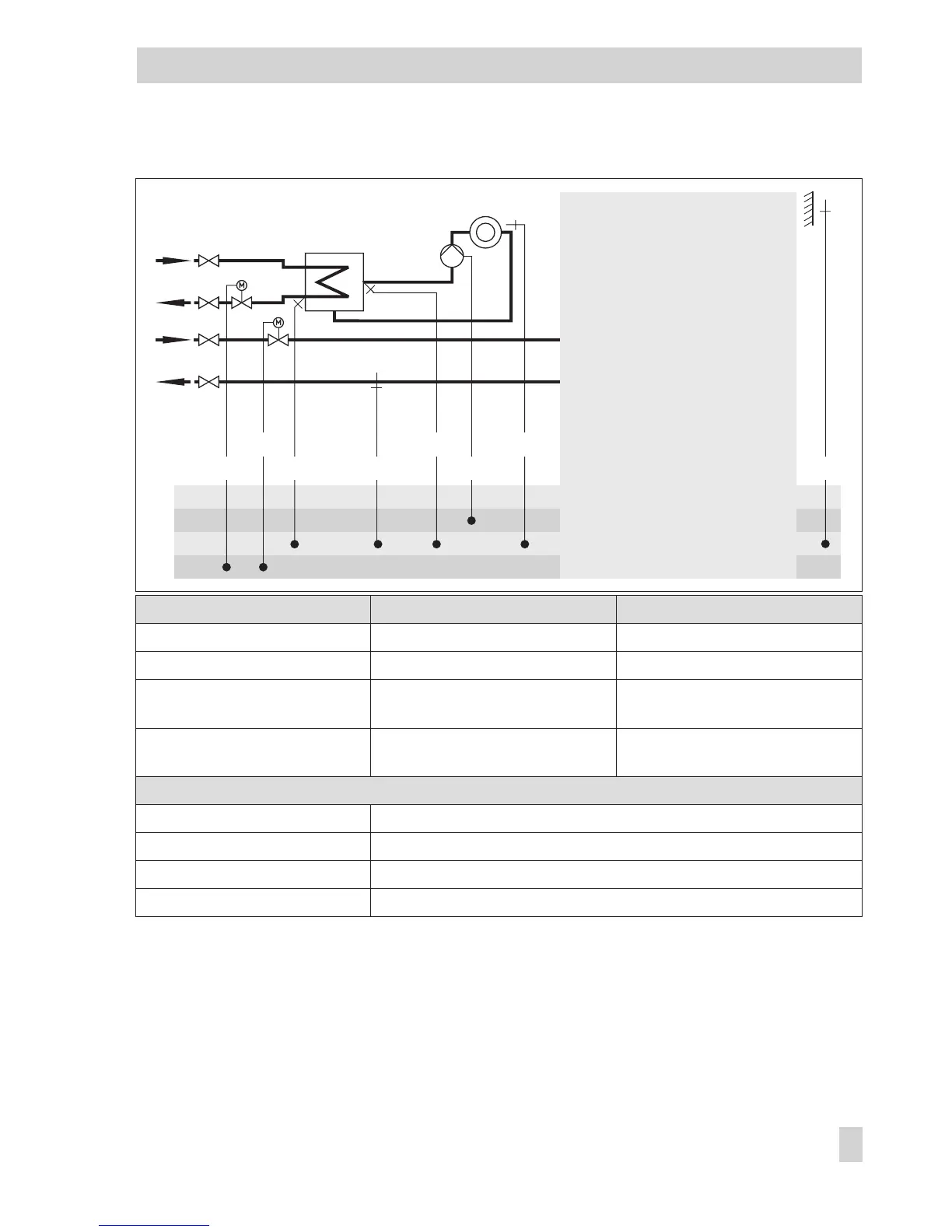

Samson TROVIS 5579 - Page 53

Systems Anl 11.0 and 11.3
System Anl 11.0 Anl 11.3
Type of DHW heating Type 1 Type 3
Integration of VF4 Not possible Not possible
ZP integration with CO4 ->
F10 - 1 (broken line, see cover)
––
Note
–
Binary output BA9
replaced by UP2
Default settings
CO1 -> F01 - 0 (without RF1)
CO1 -> F02 - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1)
CO4 -> F03 - 0 (without RüF2)
EB 5579 EN 53
Systems
BE
BA
AE
AA
AF1RüF1 RüF2
VF1
UP1RK1/Y1
RF1
RK2/Y2
DHW heating
