Samson TROVIS 5579 - Page 61

Systems Anl 13.0 and 13.1

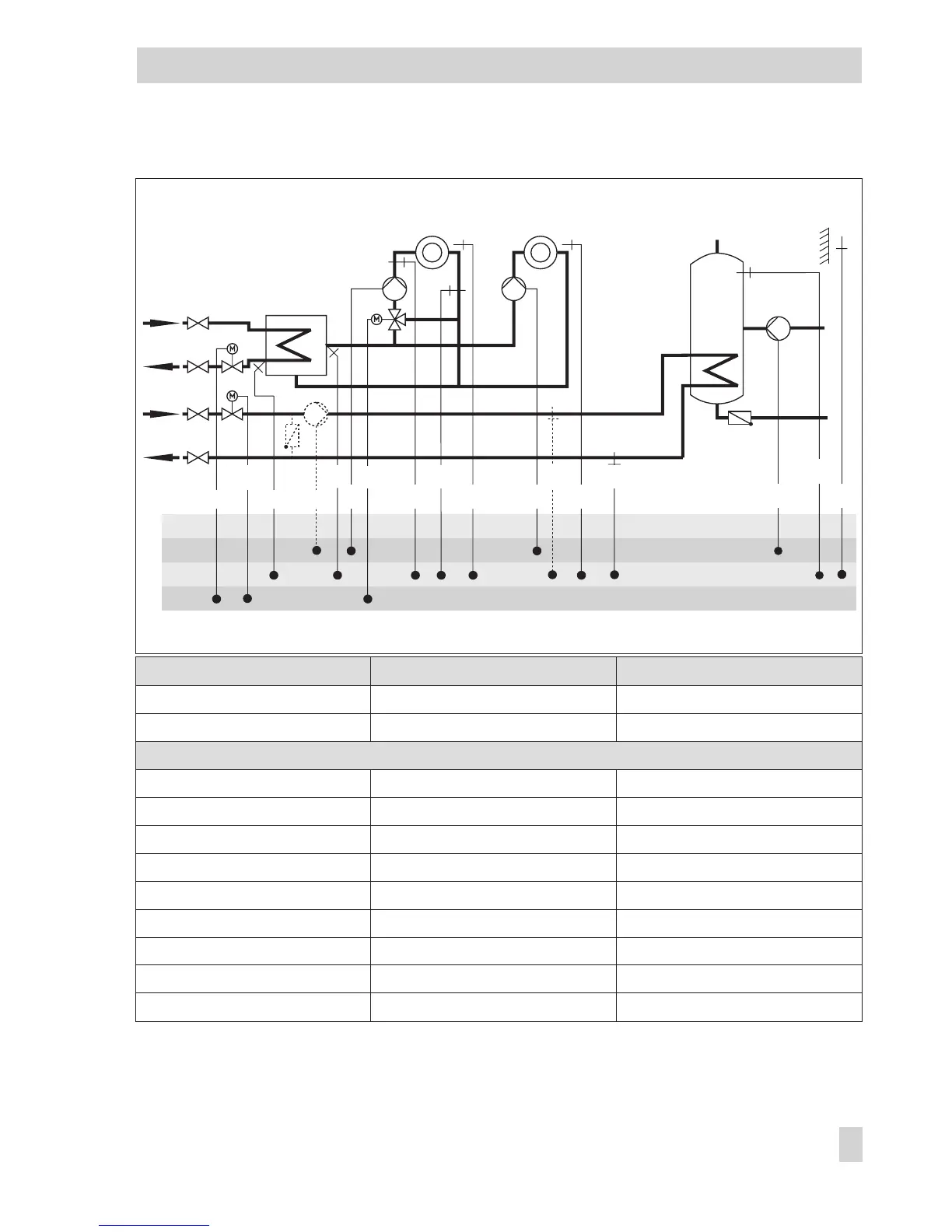

System Anl 13.0 Anl 13.1
Type of DHW heating Type 1 Type 1
Integration of VF2, SLP – •
Default settings
CO1 -> F01 - 0 (without RF1) - 0 (without RF1)
CO1 -> F02 - 1 (with AF1) - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1) - 1 (with RüF1)
CO3 -> F01 - 0 (without RF3) - 0 (without RF3)
CO3 -> F02 - 0 (without AF2 for Rk3) - 0 (without AF2 for Rk3)
CO3 -> F03 - 0 (without RüF3) - 0 (without RüF3)
CO4 -> F01 – - 1 (with SF1)
CO4 -> F02 – - 0 (without SF2)
CO4 -> F03 - 0 (without RüF2) - 0 (without RüF2)
EB 5579 EN 61
Systems
BE
BA
AE
AA
AF1
VF2 RüF2
SLP
RK2/Y2
RüF1
VF1
UP3
UP1
RK3/Y3
RK1/Y1
RF3VF3
RüF3
RF1
WW
KW
SF1
ZP
