Samson TROVIS 5579 - Page 62

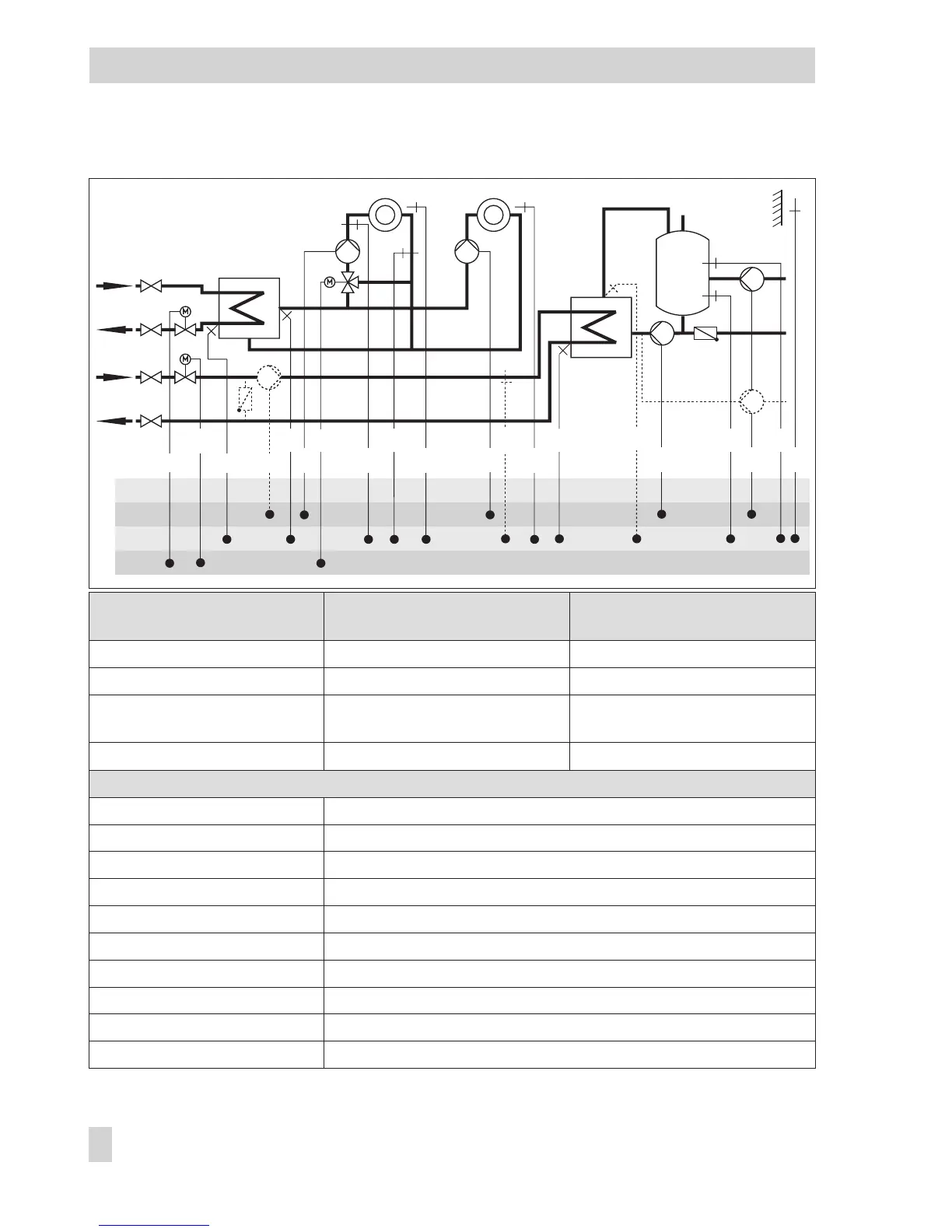

System Anl 13.2
System
Anl 13.2
With pre-control
Anl 13.2
Without pre-control
Type of DHW heating Type 2 Type 2
Integration of VF4, UP2 • –
ZP integration with CO4 ->
F10 - 1 (broken line, see cover)
Possible Possible
Note
–
VF2 takes the position of VF4
Default settings
CO1 -> F01 - 0 (without RF1)
CO1 -> F02 - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1)
CO3 -> F01 - 0 (without RF3)
CO3 -> F02 - 0 (without AF3 for Rk3)
CO3 -> F03 - 0 (without RüF3)
CO4 -> F01 - 1 (with SF1)
CO4 -> F02 - 1 (with SF2)
CO4 -> F03 - 0 (without RüF2)
CO4 -> F05 - 0 (without VF4)
62 EB 5579 EN
Systems
BE
BA
AE
AA
WW
KW
AF1
SF2
ZP SLP
VF4
RüF2
VF2
UP2
SF1RK2/Y2
RüF1
VF1
UP3
UP1
RK3/Y3
RK1/Y1
RF3VF3
RüF3
RF1
