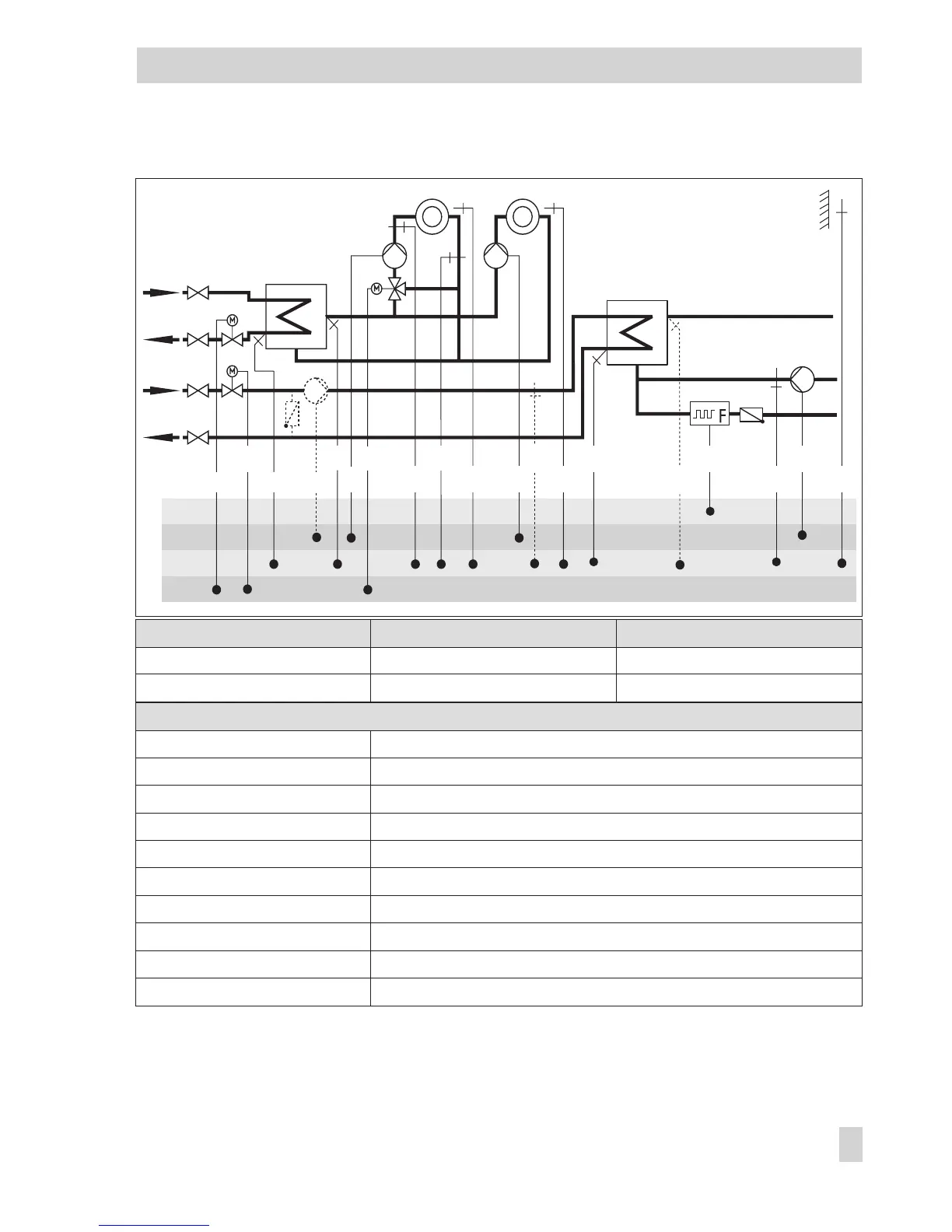

System Anl 13.9
System Anl 13.9 with pre-control Anl 13.9 without pre-control
Integration of VF4, UP2 Possible Not possible
Note
–
VF2 takes the position of VF4
Default settings
CO1 -> F01 - 0 (without RF1)
CO1 -> F02 - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1)
CO3 -> F01 - 0 (without RF3)
CO3 -> F02 - 0 (without AF2 for Rk3)
CO3 -> F03 - 0 (without RüF3)
CO4 -> F01 - 0 (without SF1)
CO4 -> F03 - 0 (without RüF2)
CO4 -> F04 - 0 (without water flowmeter at BE17)
CO4 -> F05 - 0 (without VF4)
EB 5579 EN 63
Systems
BE
BA
AE
AA
AF1
VF2
UP2
RK2/Y2
RüF1
VF1
UP3
UP1
RK3/Y3
RK1/Y1
RF3VF3
RüF3
RF1
WW
KW
ZP
VF4
BE17
SF1
RüF2
