Samson TROVIS 5579 - Page 67

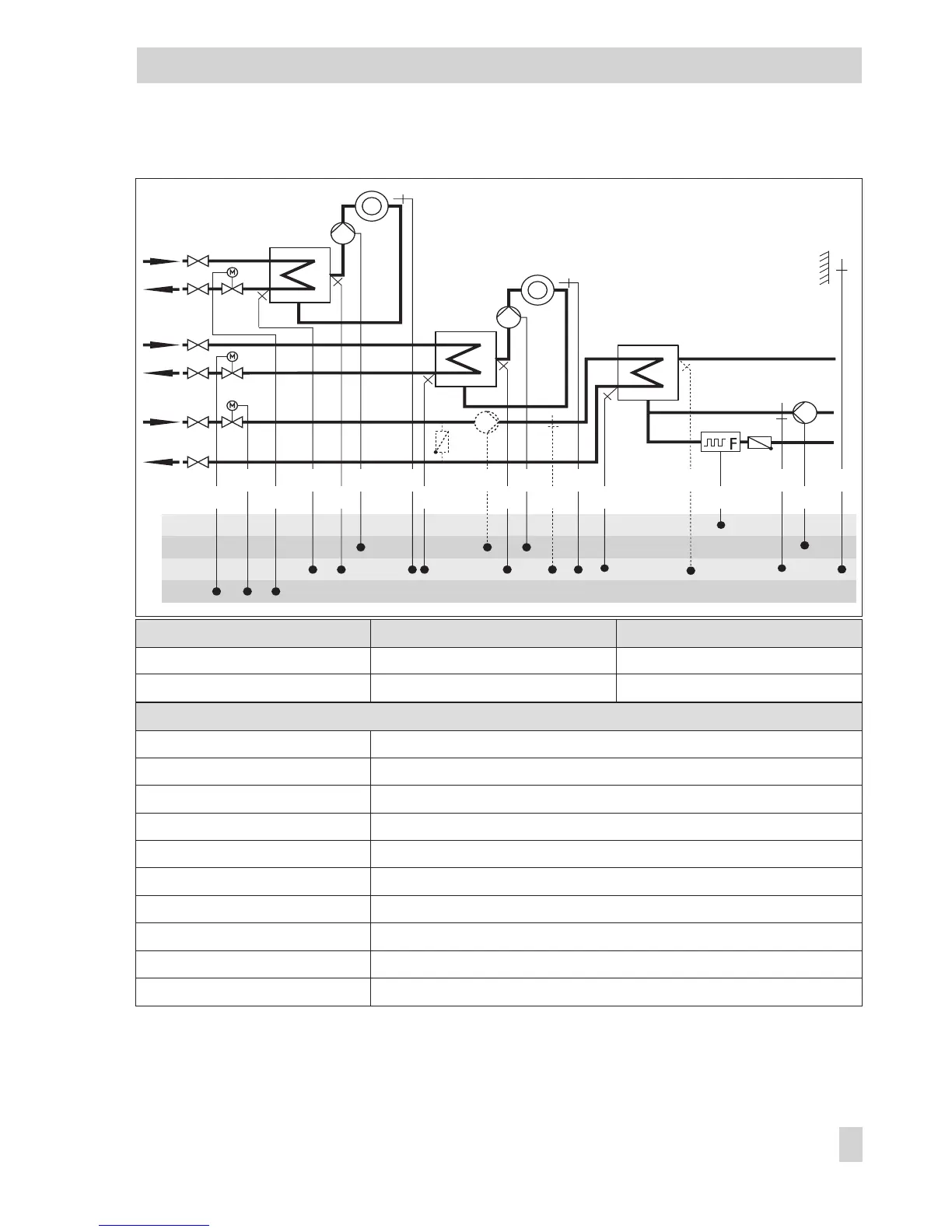

System Anl 21.9
System Anl 21.9 with pre-control Anl 21.9 without pre-control
Integration of VF4, UP2 Possible Not possible
Note
–
VF2 takes the position of VF4
Default settings
CO1 -> F01 - 0 (without RF1)
CO1 -> F02 - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1)
CO3 -> F01 - 0 (without RF3)
CO3 -> F02 - 0 (without AF2 for Rk3)
CO3 -> F03 - 1 (with RüF3)
CO4 -> F01 - 1 (with SF1)
CO4 -> F03 - 0 (without RüF2)
CO4 -> F04 - 0 (without water flowmeter at BE17)
CO4 -> F05 - 0 (without VF4)
EB 5579 EN 67
Systems
BE
BA
AE
AA
AF1
RüF3
VF3VF1
VF2
UP3UP2UP1 RF1
RK3/Y3
RK2/Y2 RüF1
RK1/Y1
RF3
WW
KW
ZP
VF4
BE17
SF1
RüF2
