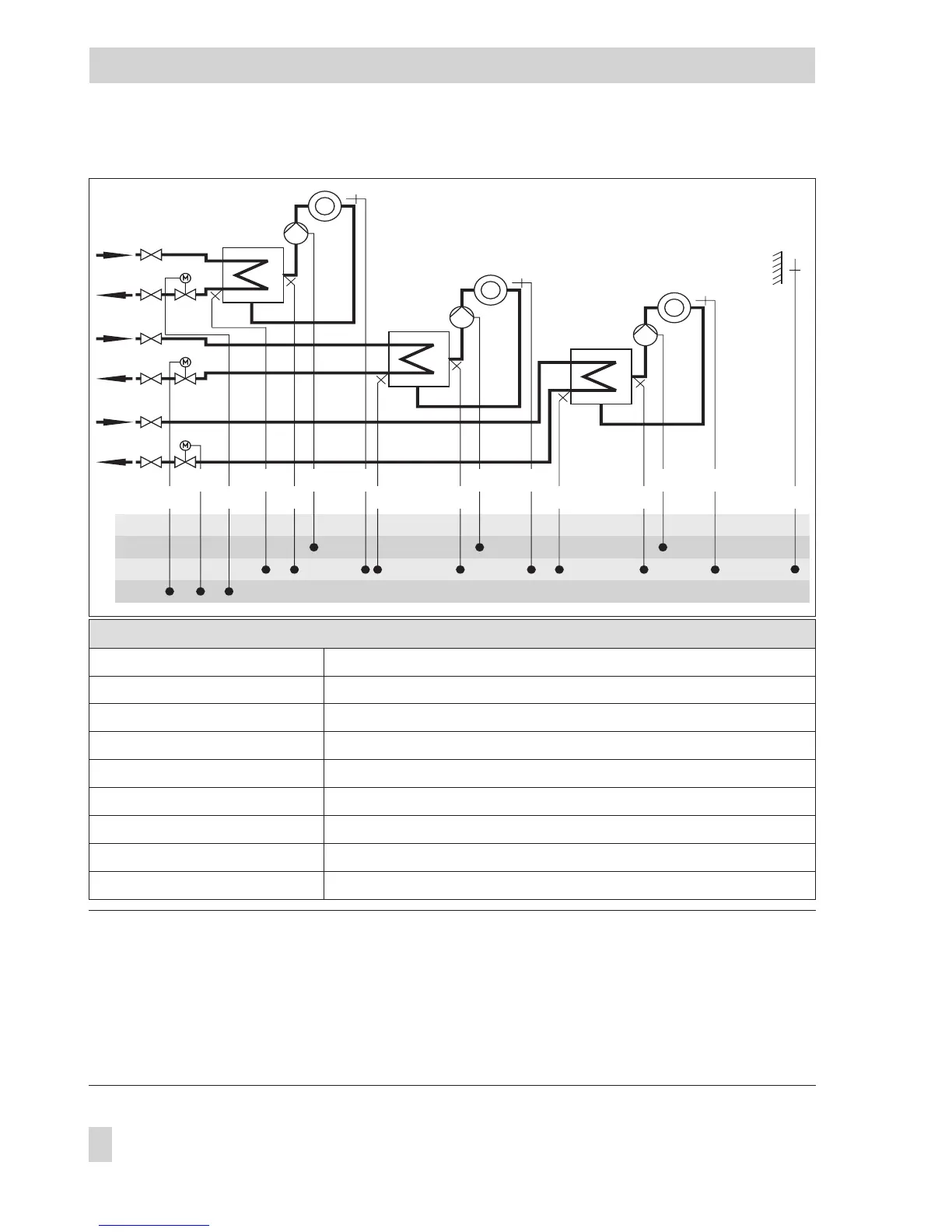

System Anl 25.0
Default settings
CO1 -> F01 - 0 (without RF1)
CO1 -> F02 - 1 (with AF1)*
CO1 -> F03 - 1 (with RüF1)
CO2 -> F01 - 0 (without RF2)
CO2 -> F02 - 0 (without AF2 for Rk2)*
CO2 -> F03 - 1 (with RüF2)
CO3 -> F01 - 0 (without RF3)
CO3 -> F02 - 0 (without AF2 for Rk3)*
CO3 -> F03 - 1 (with RüF3)
68 EB 5579 EN
Systems
BE
BA
AE
AA
AF1RüF2
VF2VF1
RüF3 VF3
UP2 UP3UP1 RF1
RK2/Y2
RK3/Y3 RüF1
RK1/Y1
RF2 RF3
* In system Anl 25.0, the following applies:
4
With CO1 -> F02 - 1
and CO2 -> F02 - 1
and CO3 -> F02 - 0: AF1 is assigned to circuits Rk1 and Rk3 and AF2 to heating circuit Rk2.
4
With CO1 -> F02 - 1
and CO2 -> F02 - 0
and CO3 -> F02 - 1: AF1 is assigned to circuits Rk1 and Rk2 and AF2 to heating circuit Rk3.
