Disassembly & Reassembly
Samsung Electronics 12-1
12. Disassembly & Reassembly
12-1 Overall Disassembly & Reassembly

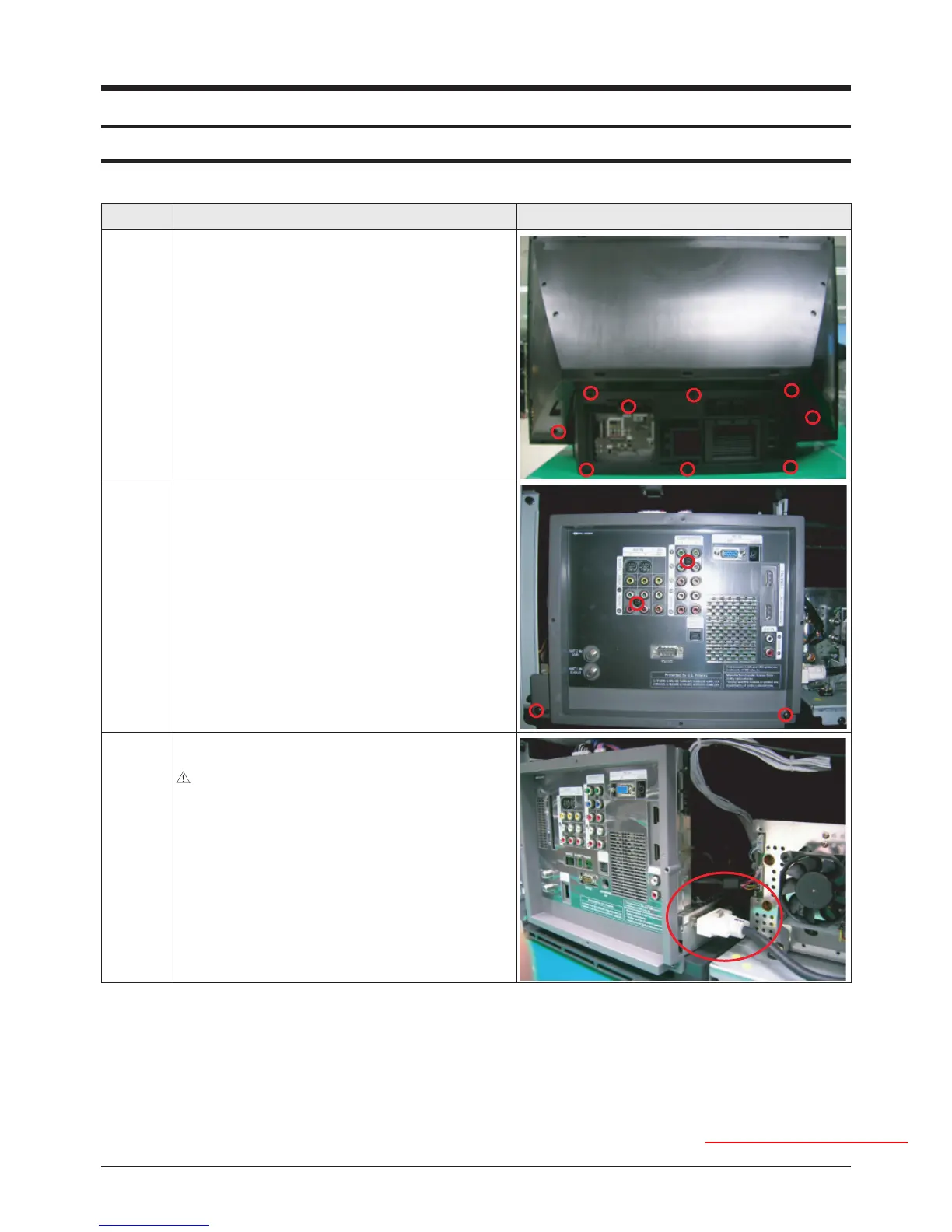

12-1-1 Separation of the back cover and the chassis
Part Name Description Description Photo
Back
Cover
① Remove 9 screws to remove the back bottom cover.
: TH,B,M4.L15,BLK,SWRCH18A
Terminal
Board
① Remove 4 screws to remove the Terminal Board.
* The 3 Terminal Board Screws
: TH,B,M4.L15,BLK,SWRCH18A
* The 3 Jack Screws
: RH,B,M4,L15,ZPC(BLK),SWRCH18
DVI cable
① Separate the DVI cable.
: The DVI screw is made of soft plastic and may easily
break when applying excessive force through a screw driver.
Ensure that extreme caution is taken when loosening the screw.
To Next Page
