Block Diagram
7-2 Samsung Electronics
Option
Option
Option
Option
Option
Option
Option
Rear Board
Main Board

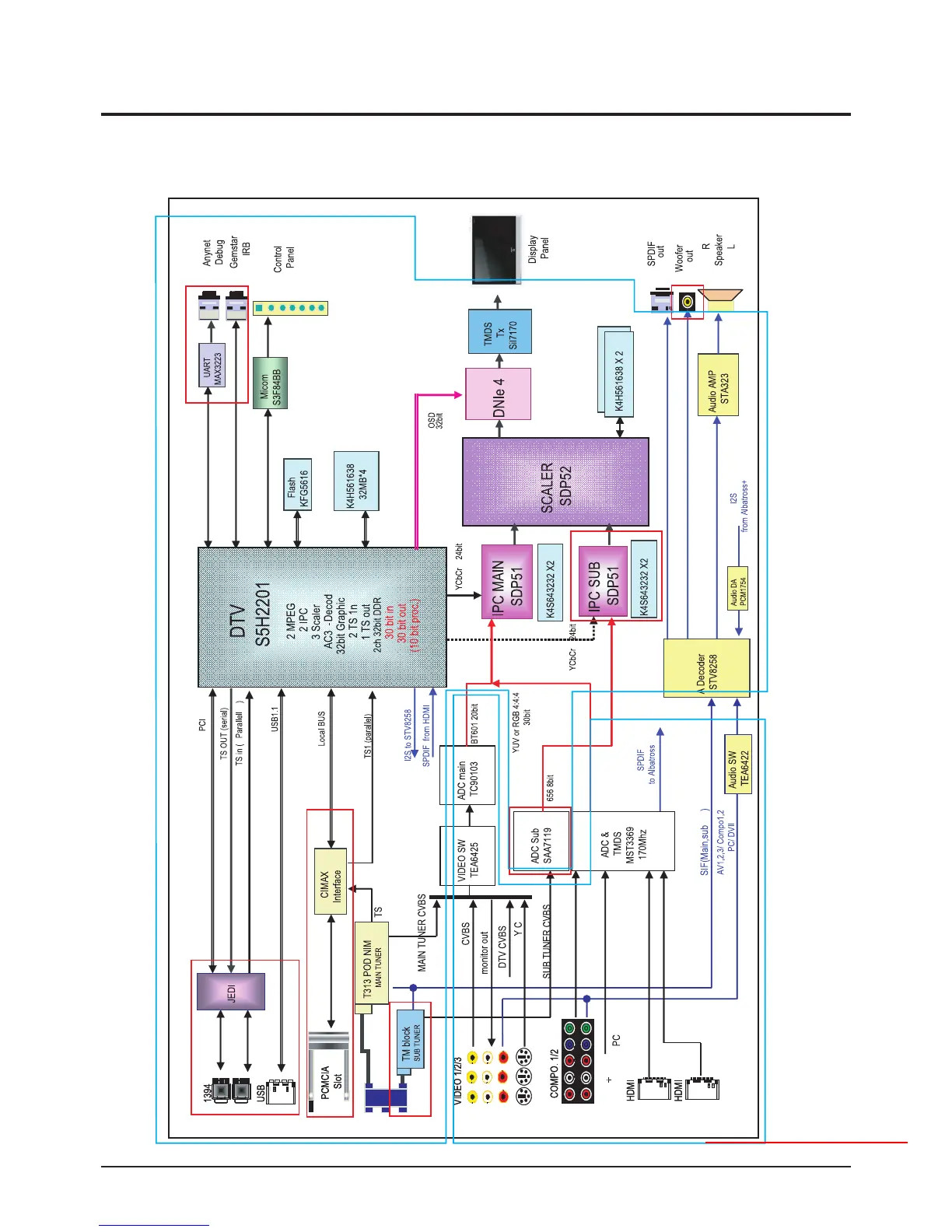

7-2-1 S5H2201+SDP51/52 Block Diagram
7-2 Partial Block Diagram
※Options are deleted on the ATSC only Model
