Disassembly & Reassembly
Samsung Electronics
12-15

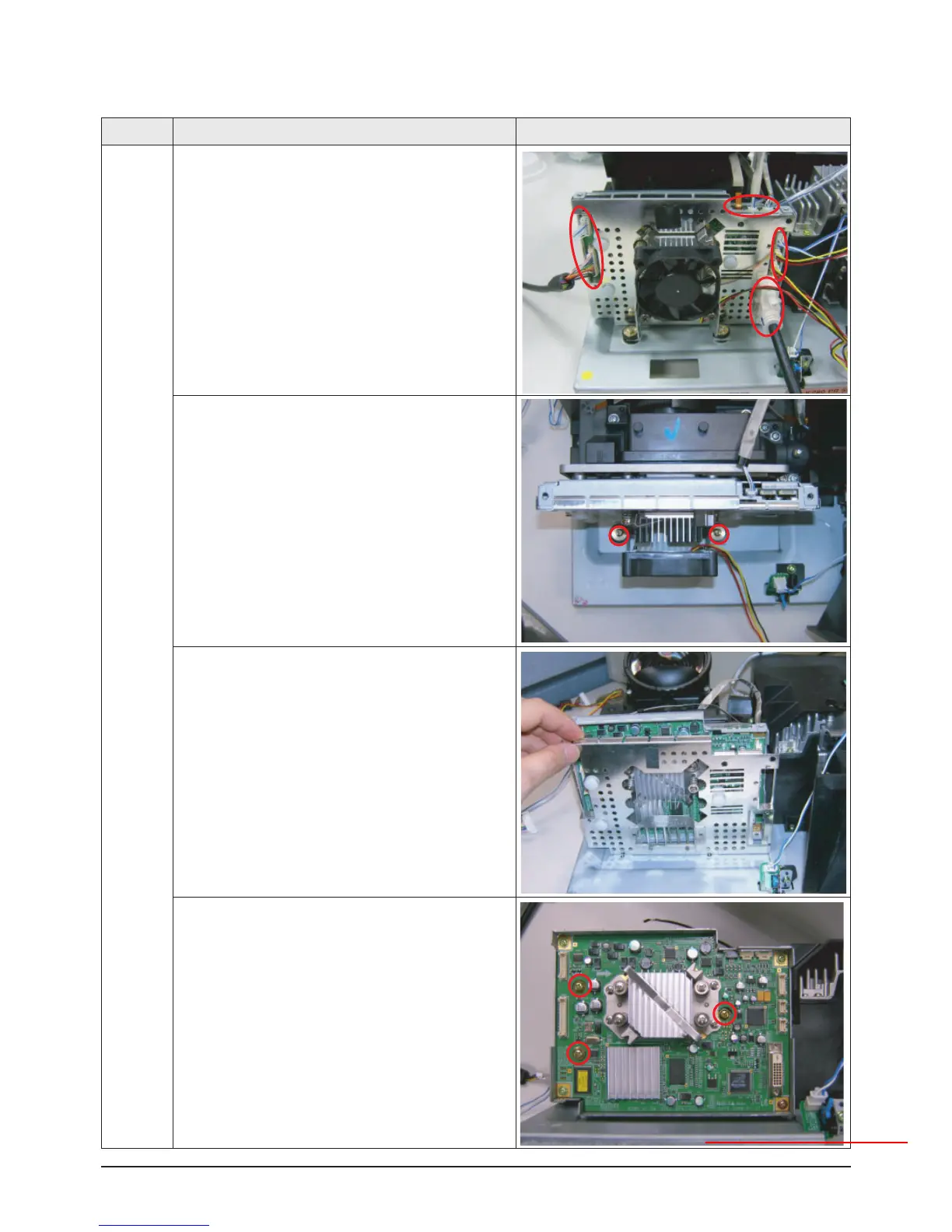

12-1-9 Separation of the DMD Board and Panel
Part Name
Description
Description Photo
DMD
Board
①
Remove the 7 point cables.
①
Remove 2 screws and remove fan assy
.
.
①
Remove Assy-shield-rear
.
①
Never touch 3 screws in the red circle
www.fieldtechsource.net
134
