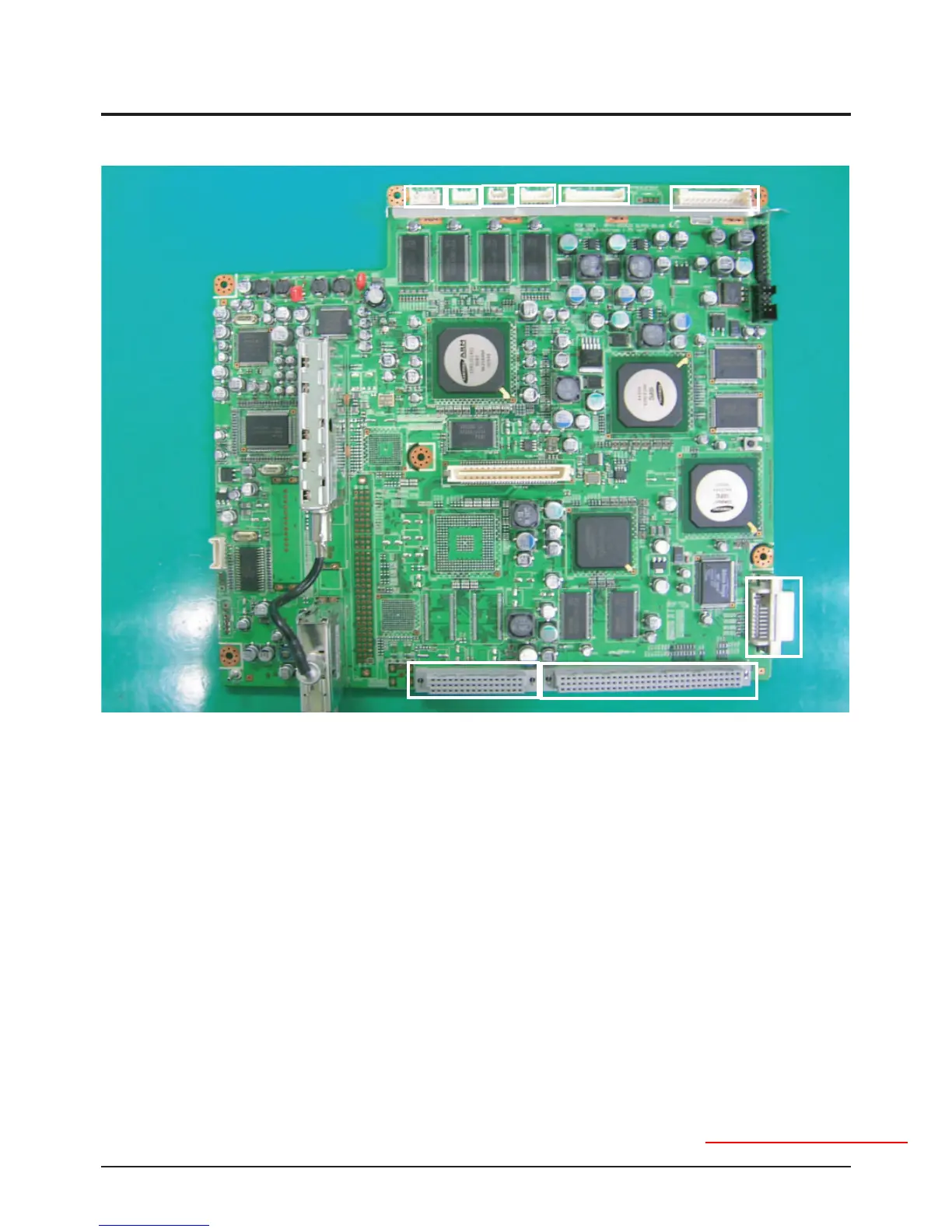

9-2-1 Assy Main Board
■ All Digital Video Processing
■ OSD / Menu
■ Reset Switch (Reset to the CPU)
■ Connected with POD channel Board and Rear Board
9-2-2 Names & Roles of Key Parts
* S5H2201 : RISC Processor/ USB host port/ MPEG Video decoder/ AC-3 decoder
* The advantages of SDP51/52
- The world's first Noise Reduction with the ME/MC tool application to 1080p Signal
- ME/MC IPC with the best performance in the world
The clear character reproduction with Ticker Detection & Compensation
- DTV Picture quality differentiation with MPEG Noise Reduction(De-blocking/De-Ringing)
- Extended definition and uniform Scaling implementation with the horizontal 12tap and the vertical 8Tap Scaler
- Natural Edge implementation with De-Jagging function
- Pattern and fine signal sharpness improvement by Pre-Scaler and DE
