Disassembly & Reassembly
12-14
Samsung Electronics
12-1-8

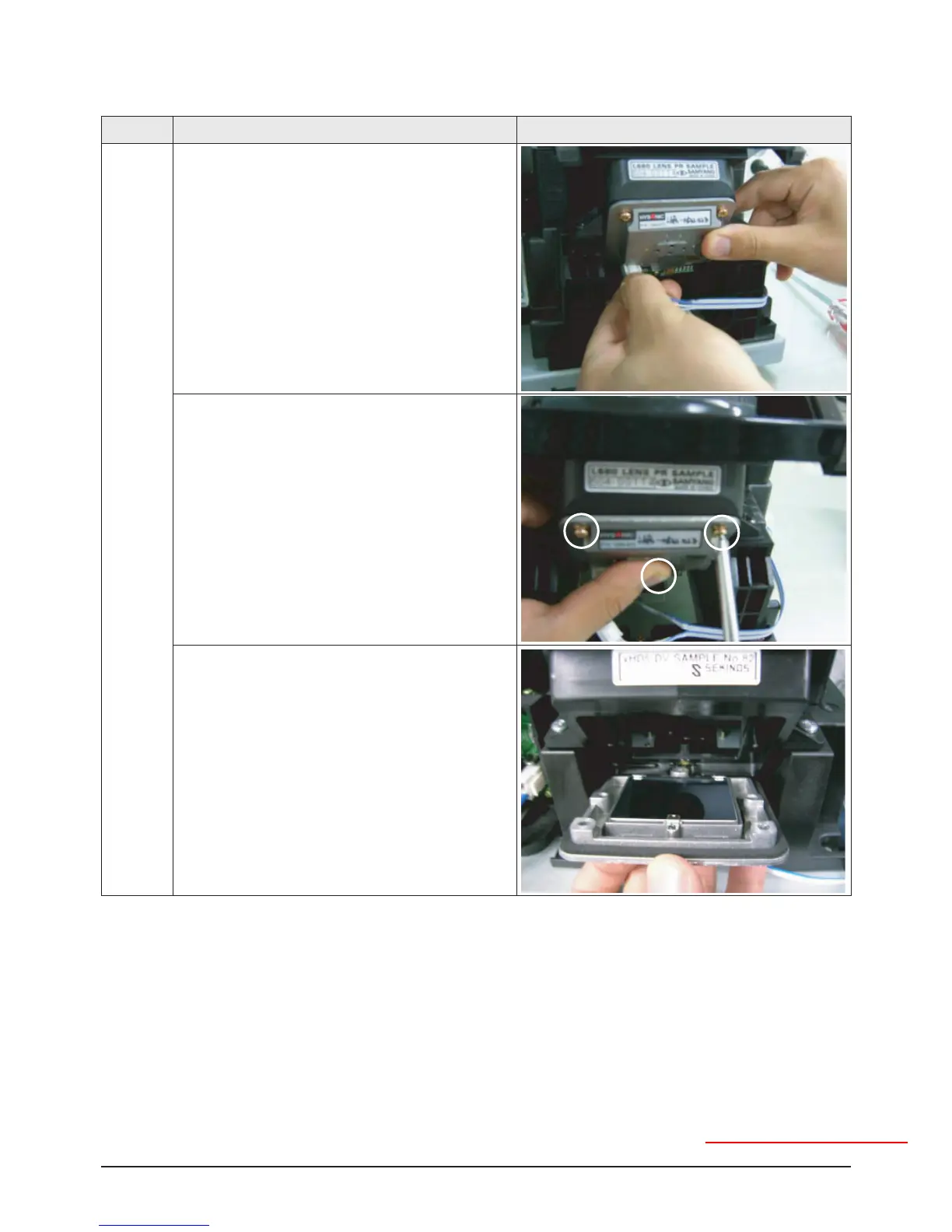

Actuator(Smooth Picture) Replacement
Part Name
Description
Description Photo
Actuator
①
Remove the cable at the
Actuator
.
①
Remove screws(3ea) at the
Actuator cover
.
: BH,+,M3,L16,ZPC(YEL),SWRCH
①
Replace it with a new actuator
.
www.fieldtechsource.net
133
