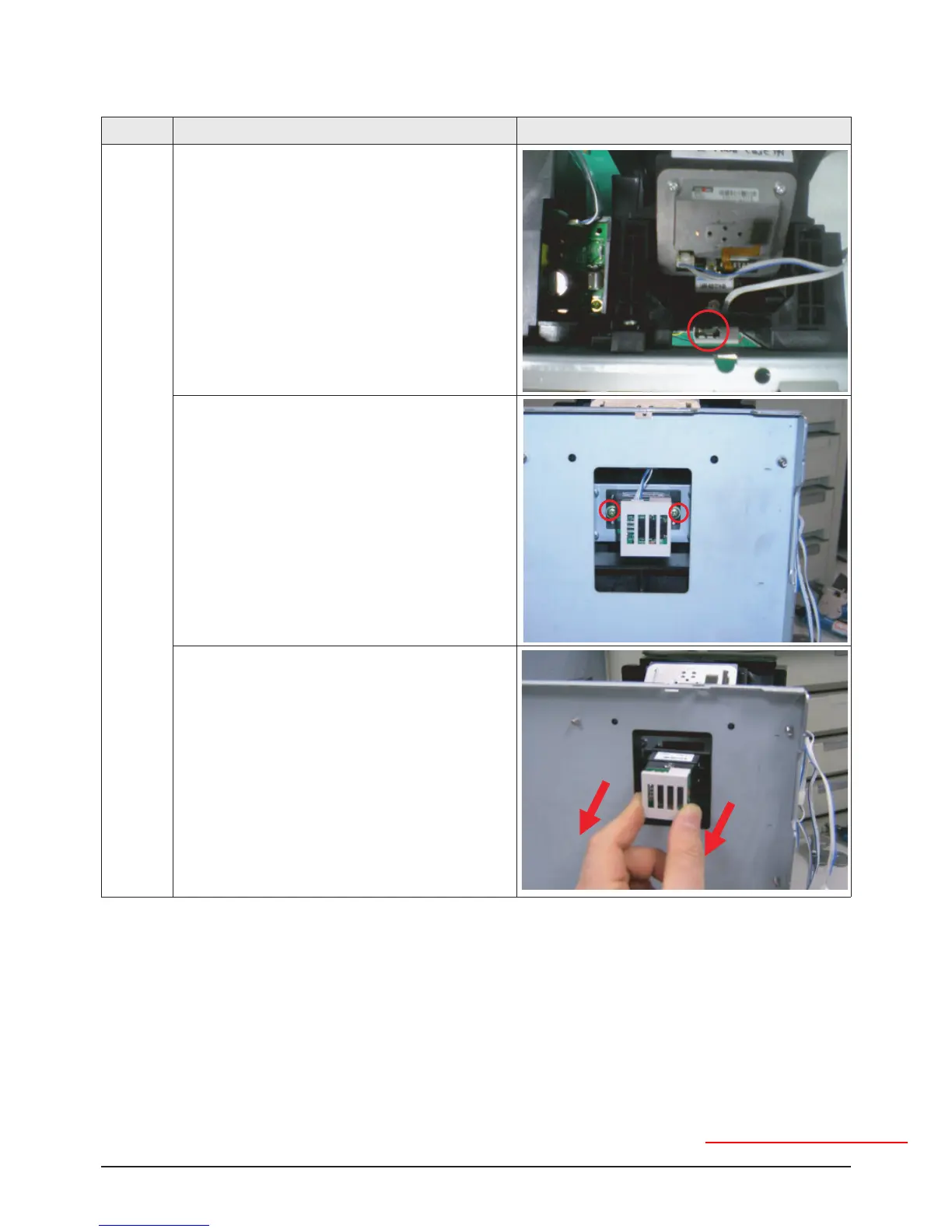

Disassembly & Reassembly
12-18
Samsung Electronics
Part Name
Description
Description Photo
Dynamic
black
①
Disconnector Connector
.
①
Remove 2 screws
: WSP
,BH,+,M3,L16,ZPC(YEL),SWRCH
①
Remove Dynamic Black assy
.
12-1-10 Dynamic Black replacement
www.fieldtechsource.net
137
139
