Disassembly & Reassembly
Samsung Electronics 12-7
12-1-5 Lamp Replacement

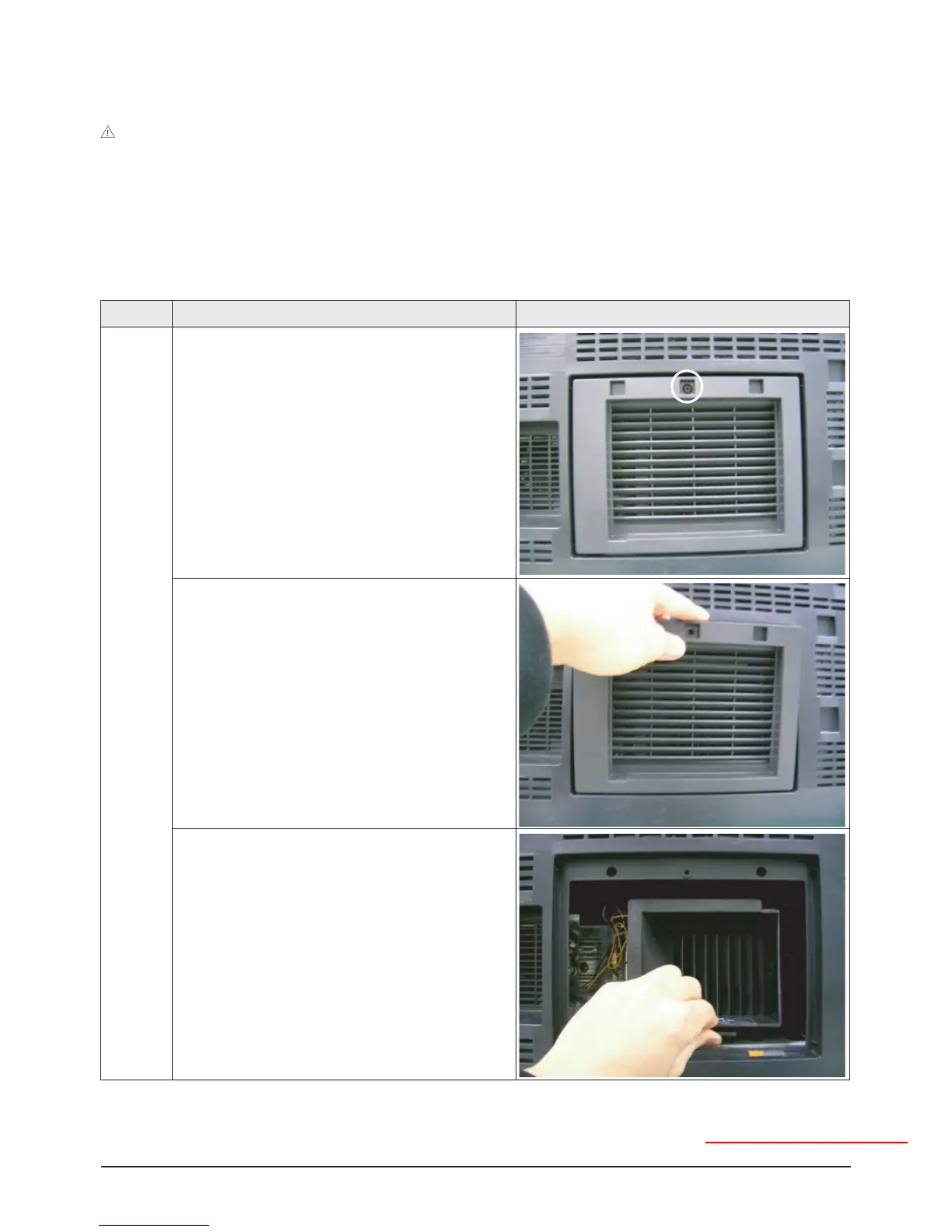

Part Name Description Description Photo
Lamp
① Unplug the TV, then use a screwdriver to remove the
screws.
: WSP,PH,+,M4,L12,ZPC(YEL),SM10C
① Remove the Lamp cover.
① Remove the lamp cover duct
Notice
1. Replace with the correct code numbered lamp to avoid damage to the TV.
2. Turn the power off and wait for 30 minutes before replacing the lamp as it will be hot.
3. Do not touch the glass part of the lamp with your bare hands nor insert any foreign object inside the cover as it may cause poor
screen quality, electric shock or fire.
4. Do not place the old lamp near flammable objects or within the reach of children.
5. Be sure to connect this TV directly to an AC wall outlet. If the TV's AC plug is connected to a cable box or other source, it will
not allow for proper cool down time.
To Next Page
