Alignment & Adjustment
Samsung Electronics 3-1

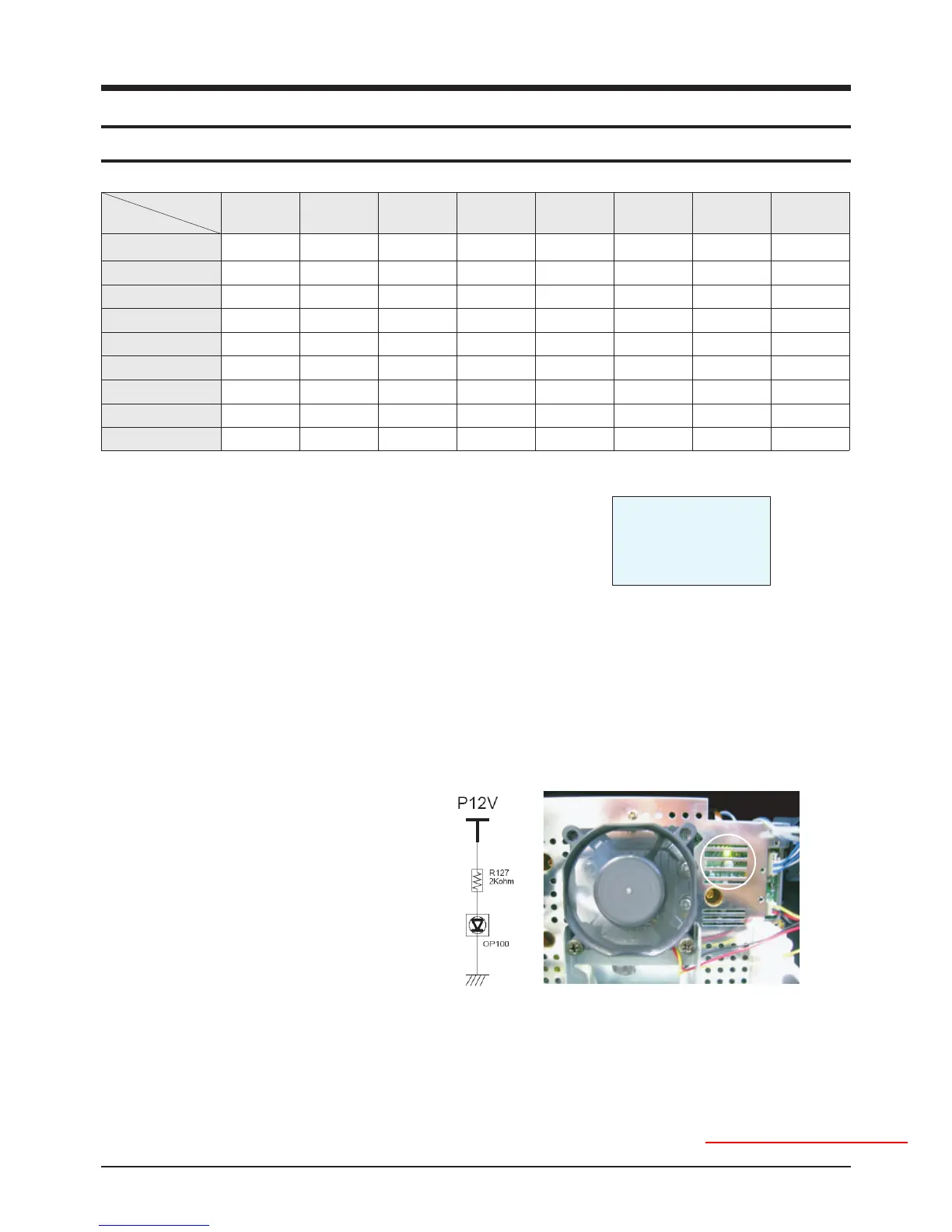

3. Alignment & Adjustment
3-1 Service Instruction
■ Check items listed after changing each
※ The Rear board is irremovable and supplied as a separate part in the field
1. Software version check :
After Entering the Service mode, Check the list below
* S/W Notation
"T_GALIAOS0_0001" indicates "GALILEI BASIC MODEL USA, ver. 0001".
2. Front Information Window check : See page 6-7.
3. Index Delay adjustment : See page 3-20.
4. Actuator Gain adjustment : See page 3-23.
5. Vertical / Horizontal Position adjustment : See page 3-20.
6. CCA : See page 3-20.
7. Board LED check : Check the LED is turned on.
(In the DMD Board)
8. Tilt/Focus adjustment : See page 3-25/26.
Check Items
Replaced Items
S/W Version Front LCD Index Delay
Actuator
Gain
V-Position
H-Position
CCA Board LED Tilt Focus
Main Board
● ● ● ● ● ● ●
Rear Board
● ●
Power Board
● ● ●
Optical Engine
● ● ● ● ● ●
DMD Board
● ● ●
Lamp
●
Color Wheel
●
Front LED Assy
●
Actuator
● ● ●
T_GALIAUS0_00XX
2006_XX_XX
T-GALIUCOM5-60XX
T-GAIAUS1_XX
To Next Page
