Disassembly & Reassembly
Samsung Electronics
12-3

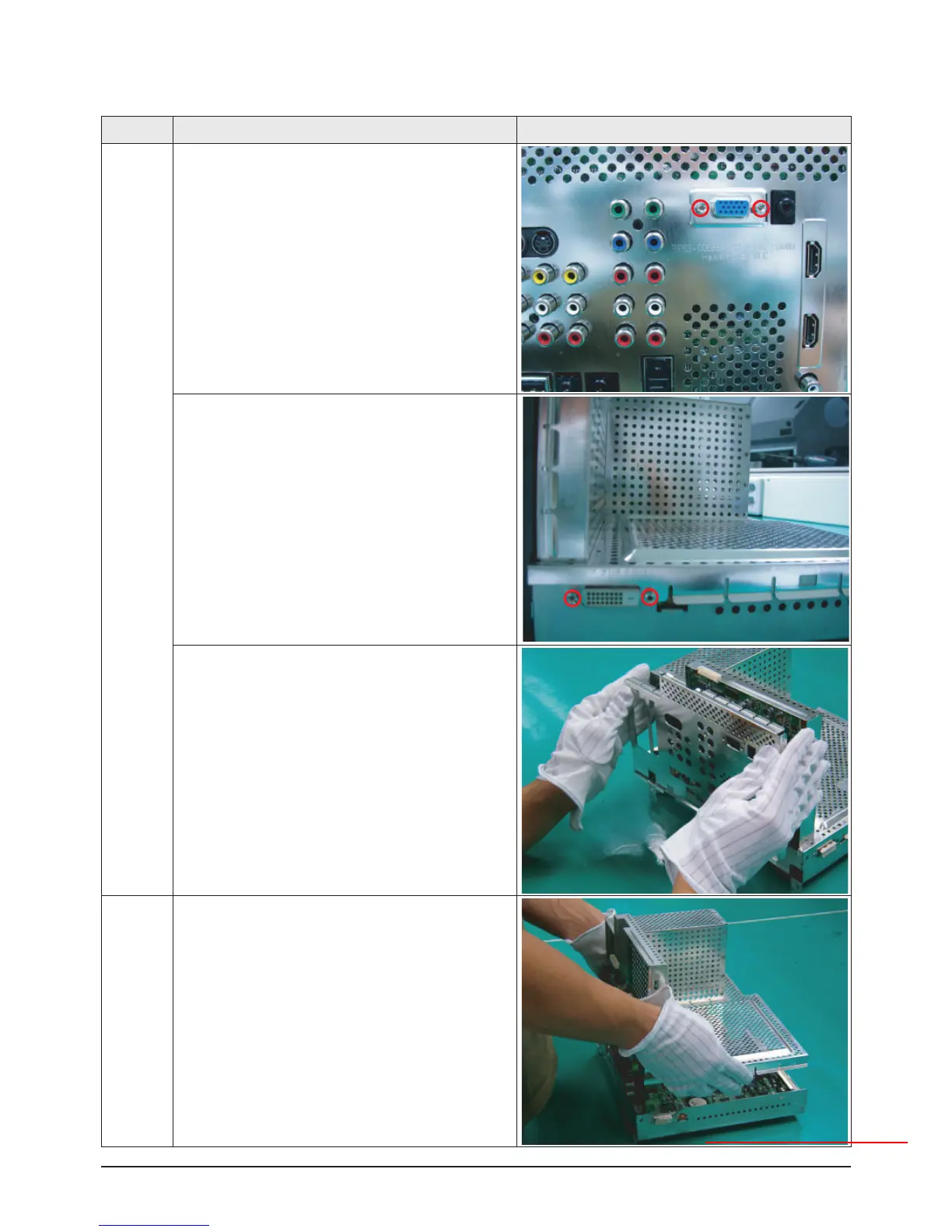

12-1-2 Separation of the Main and RearBoard
Part Name
Description
Description Photo
Rear
Board
①
Remove 2 Stand Offs from the D-Sub connector
.
①
Remove 2 Standoffs from the DVI connector
.
①
Remove the Rear shield case
Rear
Board/
Main
Board/
①
Remove the Mainshield case
www.fieldtechsource.net
122
