Disassembly & Reassembly
12-12
Samsung Electronics

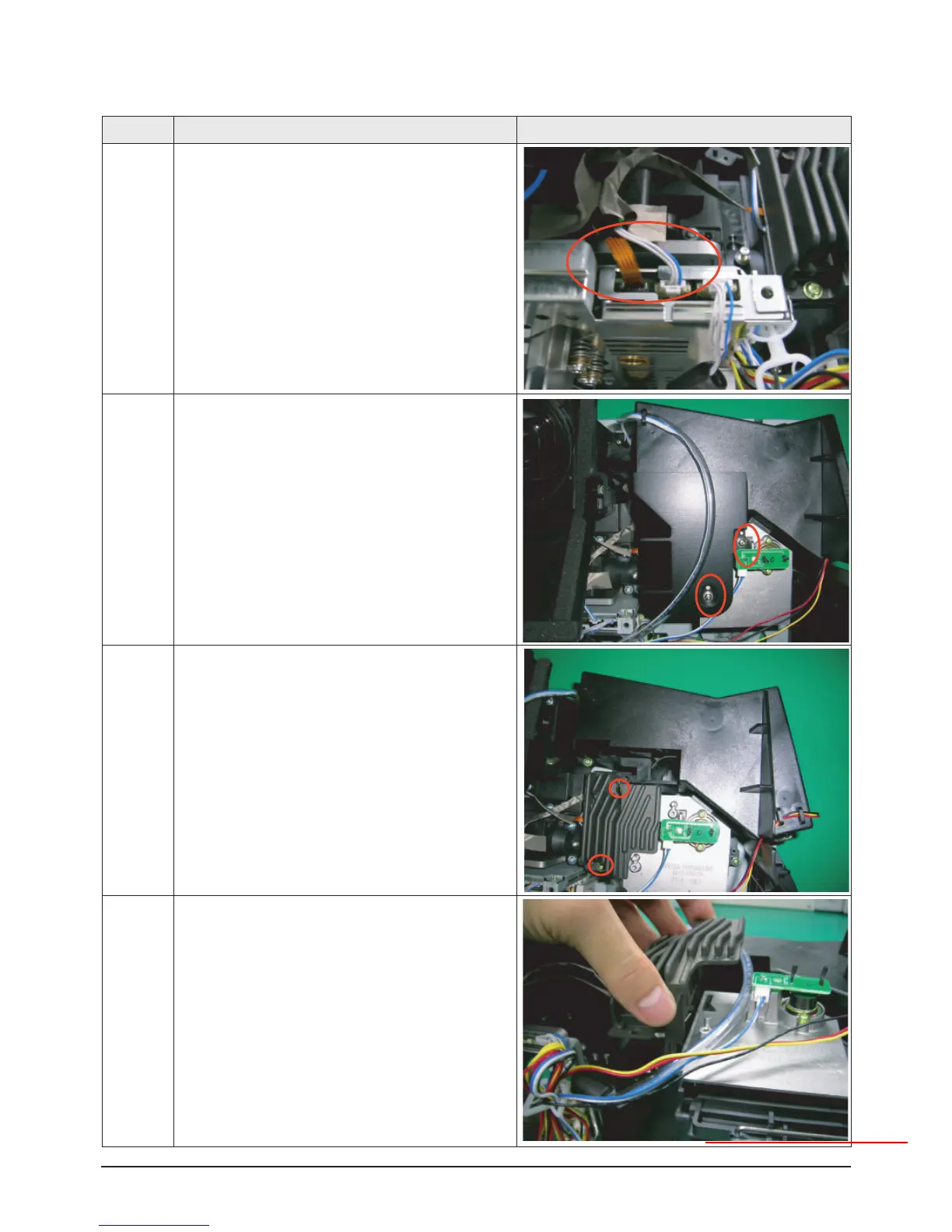

12-1-7 Color Wheel
Ass'y Replacement
Part Name
Description
Description Photo
Color
Wheel
①
Remove two cables at the DMD Board.
①
Remove 2 screws and the color wheel cover
①
Remove 2 screws.
: PWH,+,B,M3,L10,ZPC(YEL),SWRCH18A,-
①
Disassemble the color wheel assembly
.
www.fieldtechsource.net
131
133
