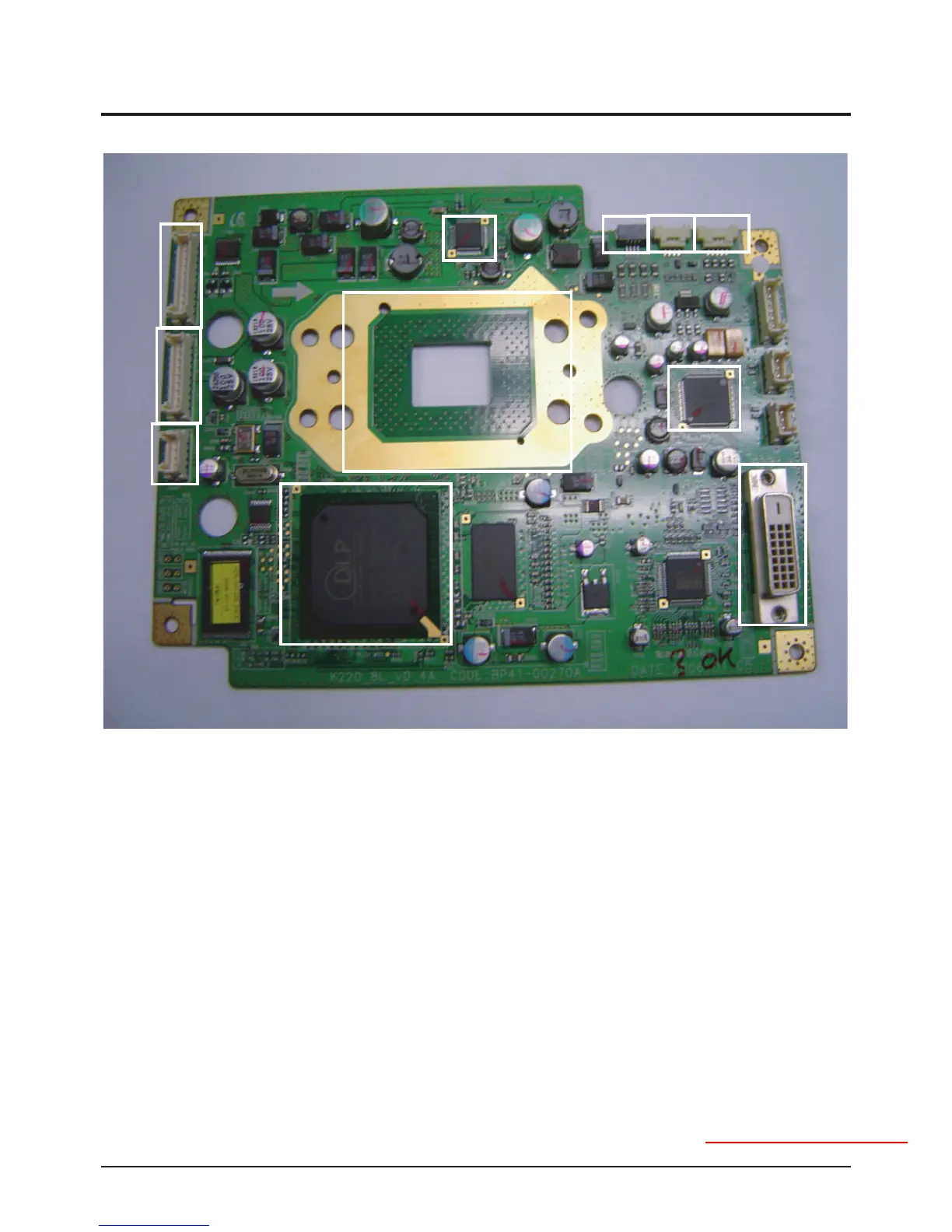

9-4-1 Assy DMD Board
■ Controls the lamp (ON/OFF)
■ Drives the color wheel motor
■ Drives the panel
9-4-2 Names & Roles of Key Parts
* CN750 : This supplies the power to drive the color wheel.
* CN800 : This receives the color wheel rotating signals.
* CN803 : This sends signals to the ballast..
* CN100 : The DVI cable terminal. This receives the image data from the digital board.
* DMD PANEL : This is protected with a heat sink and fixtures.
* DDP3021 : This processes the DMD drive and the signals.
* PMD1000 : This supplies the DMD Board power and controls the color wheel rotating.
* DAD2000 : This supplies DMD reset signals.
