9-3-1 Assy Rear Board
■ Analog Video Switching / Processing
■ Analog Audio Switching

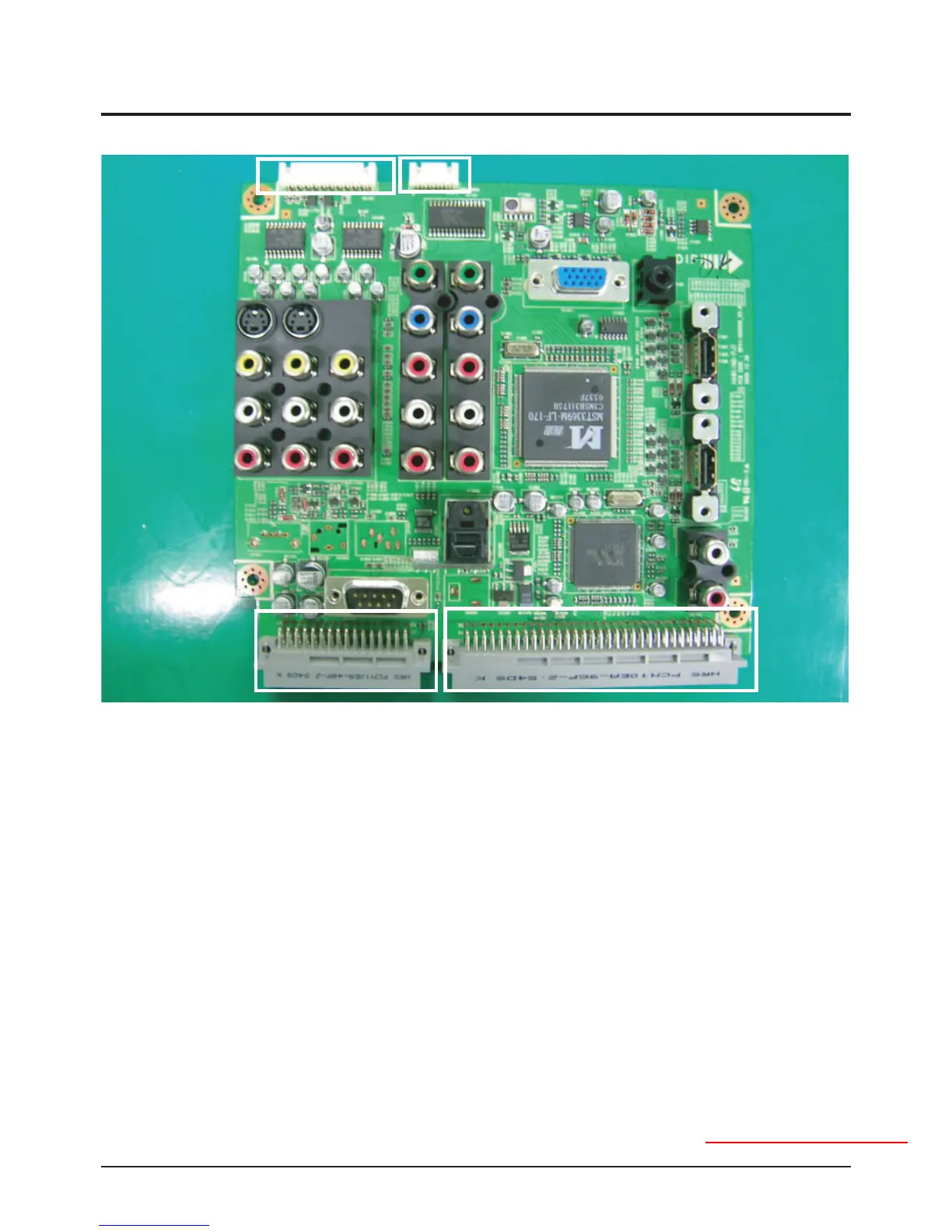

9-3-2 Names & Roles of Key Parts
* CN1700,CN1701 : Connected to the Main board
* CN1702 : Connected to the side AV
* CN1804 : Connected to the side USB port
* High Definition Multimedia Interface :
The HDMI™ (High Definition Multimedia Interface) supports compressed standard and high definition digital video formats and
existing digital multi-channel audio formats.
